410 BullBars on a Sammy?

mk1joe · Post by **mk1joe** » Sun Apr 14, 2013 9:36 am

Hello,
I want to put my old 410 bull bars on my samuria, but i think the brackets bolt to the outside of the chassis rails on the 410, and on the sammy thats where the spring hanhers are.

is there a special pair of brackets to buy to do this or did the samurais have a different type of bull bars.

has anyone done this before and made brackets to fit it?

Thanks for the help guys!
Joe

Darrell · Post by **Darrell** » Sun Apr 14, 2013 11:54 pm

I can't find any different brackets for the Samurai.
I have no idea if there are different bars for different models.
Only found one photo of somebody's modified bracket.
To me it just needs spacing out with whatever suitable steel you have available.
There not very strong anyway so I don't really see a spacer weakening things.
Either that or cut them off and weld some flat bar in to step them over ??

Post by **ScottieJ** » Mon Apr 15, 2013 12:30 pm

The bull bar brackets are different, the samurai ones are bent to mount on the inside of the chassis rails, kind've like the ones in the picture that darrell posted but just bent up out of one piece of plate. some also have different bolt hole spacing so you need to drill out the mounts to fit the other type, I found this out when I went to fit the bull bars off my LWB samurai onto karis's SJ410

mk1joe · Post by **mk1joe** » Mon Apr 15, 2013 8:28 pm

thanks guys great advice!
ive never seen the special brackets that are bent, any idea where i could get a pair? if not it looks like i will need to get the welder out and follow darrells diagrams.
Thanks for the advice again,
i love this forum:)

Tramp · Post by **Tramp** » Mon Apr 15, 2013 9:26 pm

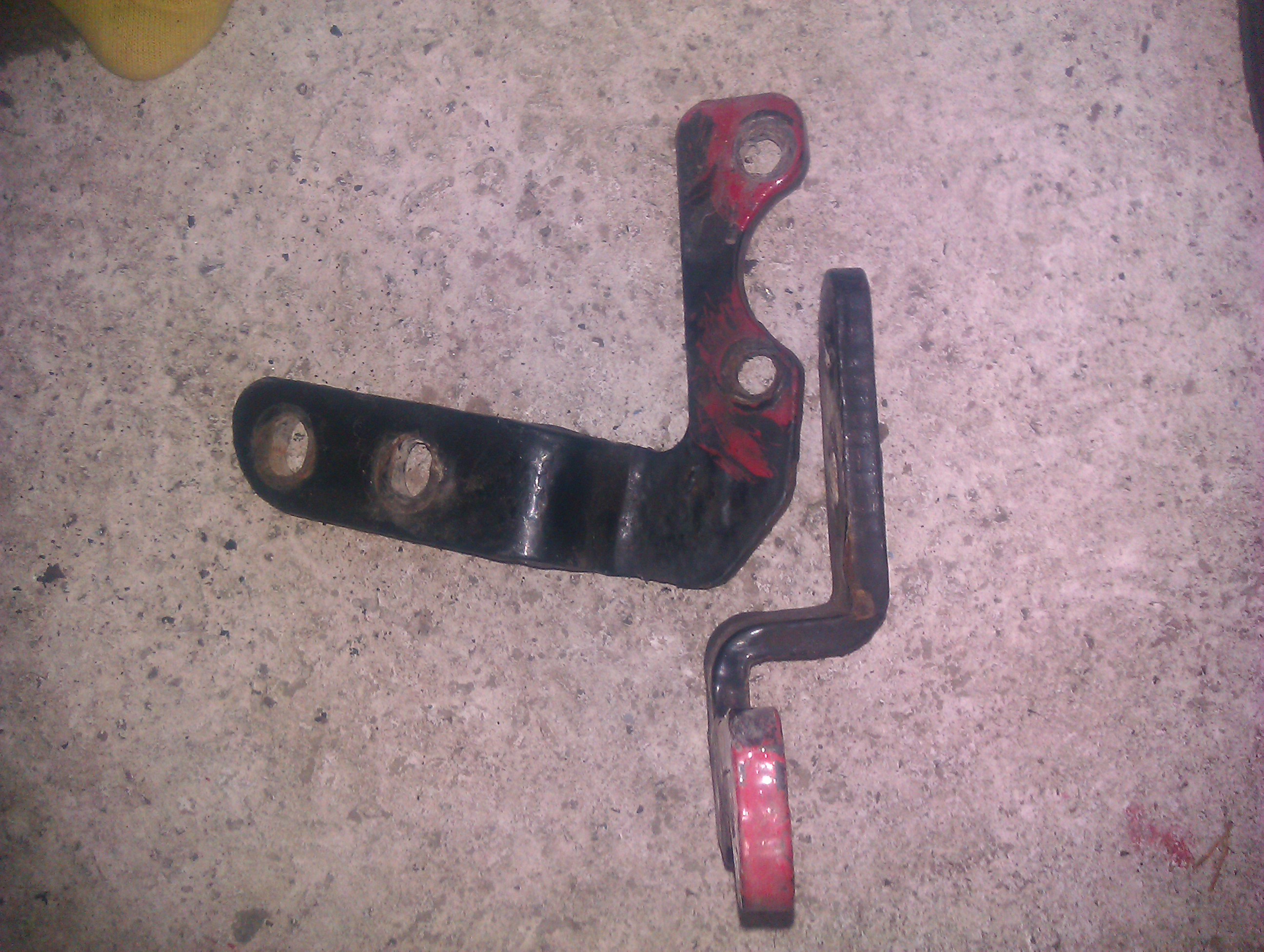

: IMAG0618.jpg (1.07 MiB) Viewed 7329 times

This sort? I have a spare set (these are from borneyo - Dan bornes Sammy) £5 plus postage?

Darrell · Post by **Darrell** » Mon Apr 15, 2013 9:34 pm

Tramp wrote:
This sort? I have a spare set (these are from borneyo - Dan bornes Sammy) £5 plus postage?

Do you know how long I spent Googling trying to find a photo or diagram of those

Blooming ages

Thanks

, it's the first time I've ever seen any

Post by **Jordi** » Mon Apr 15, 2013 9:46 pm

Darrell wrote:
Tramp wrote:
This sort? I have a spare set (these are from borneyo - Dan bornes Sammy) £5 plus postage?

Do you know how long I spent Googling trying to find a photo or diagram of those

Blooming ages

Thanks , it's the first time I've ever seen any

I was quite impressed Darrell. You googled images and diagrams with measurements quicker than Luke got a photo of a set he has up.

mk1joe · Post by **mk1joe** » Mon Apr 15, 2013 10:00 pm

Tramp wrote:This sort? I have a spare set (these are from borneyo - Dan bornes Sammy) £5 plus postage?

Yes Please!!!!!!!

Tramp · Post by **Tramp** » Mon Apr 15, 2013 10:14 pm

Pm me your address, ill box them up and send them Thursday, unless you want to collect? I live near Sheffield.... but it might be a bit far?

Post by **Jordi** » Mon Apr 15, 2013 10:16 pm

Nowhere is too FUCKING FAR!
