Just thought I'd get a few diagrams of the different handbrake cable set-ups posted up as some are now becoming hard to find. Suzuki dealers are no longer offering cables for all the types shown.
If you know a good source for any of the cables please feel free to add a link.
(Click on pic to zoom in and zoom in again "top left of pic" to get/read the part numbers).
SJ/Samurai handbrake cable set-ups
- Darrell
- Suzuki, will you marry me?
- Posts: 2988
- Joined: Wed Feb 23, 2011 7:54 pm
- Location: south oxfordshire
- Contact:
SJ/Samurai handbrake cable set-ups
- Attachments
-

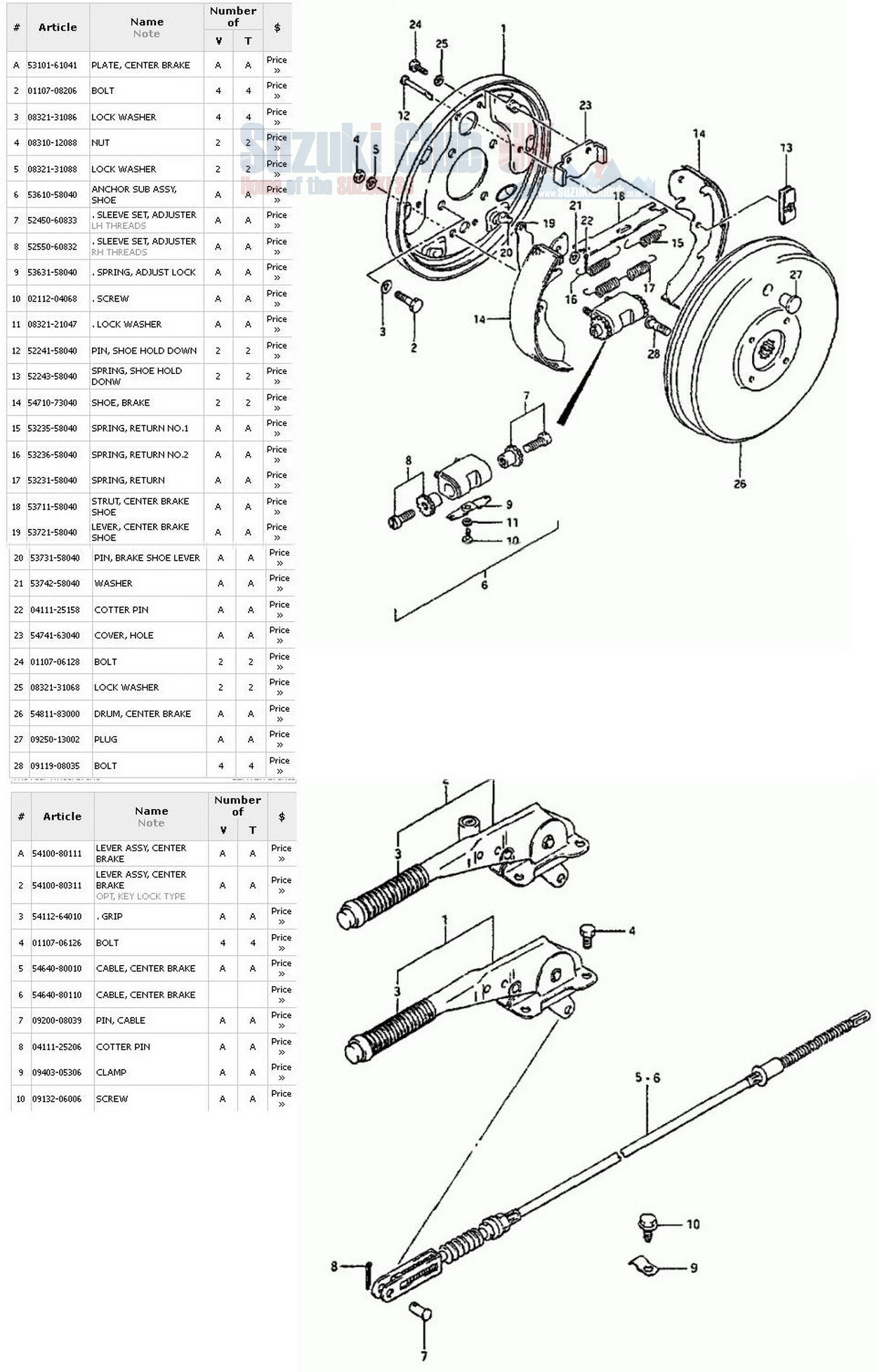

- Transfer box handbrake.jpg (425.39 KiB) Viewed 19226 times
-

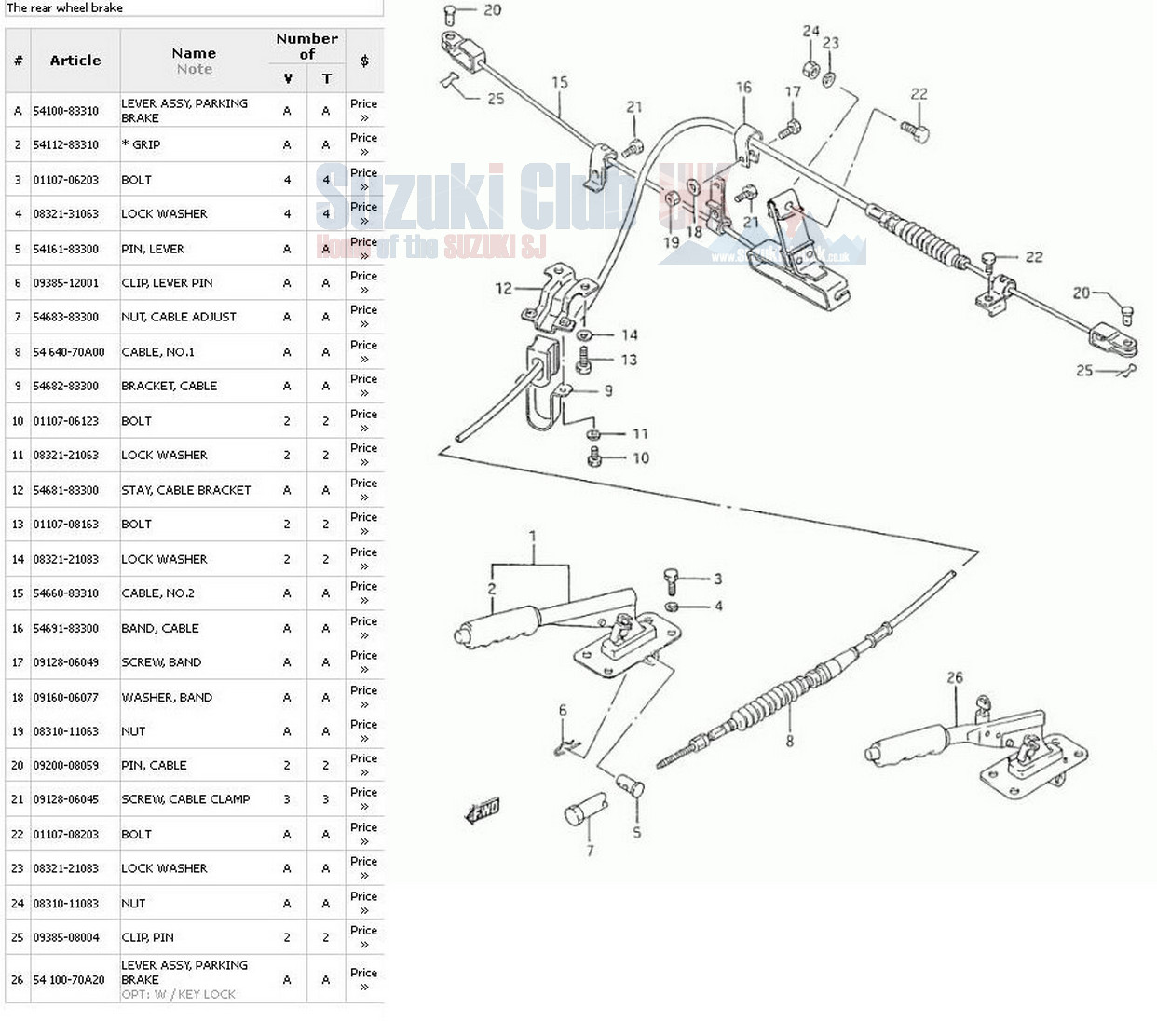

- Handbrake setup 1.jpg (240.71 KiB) Viewed 19226 times
-

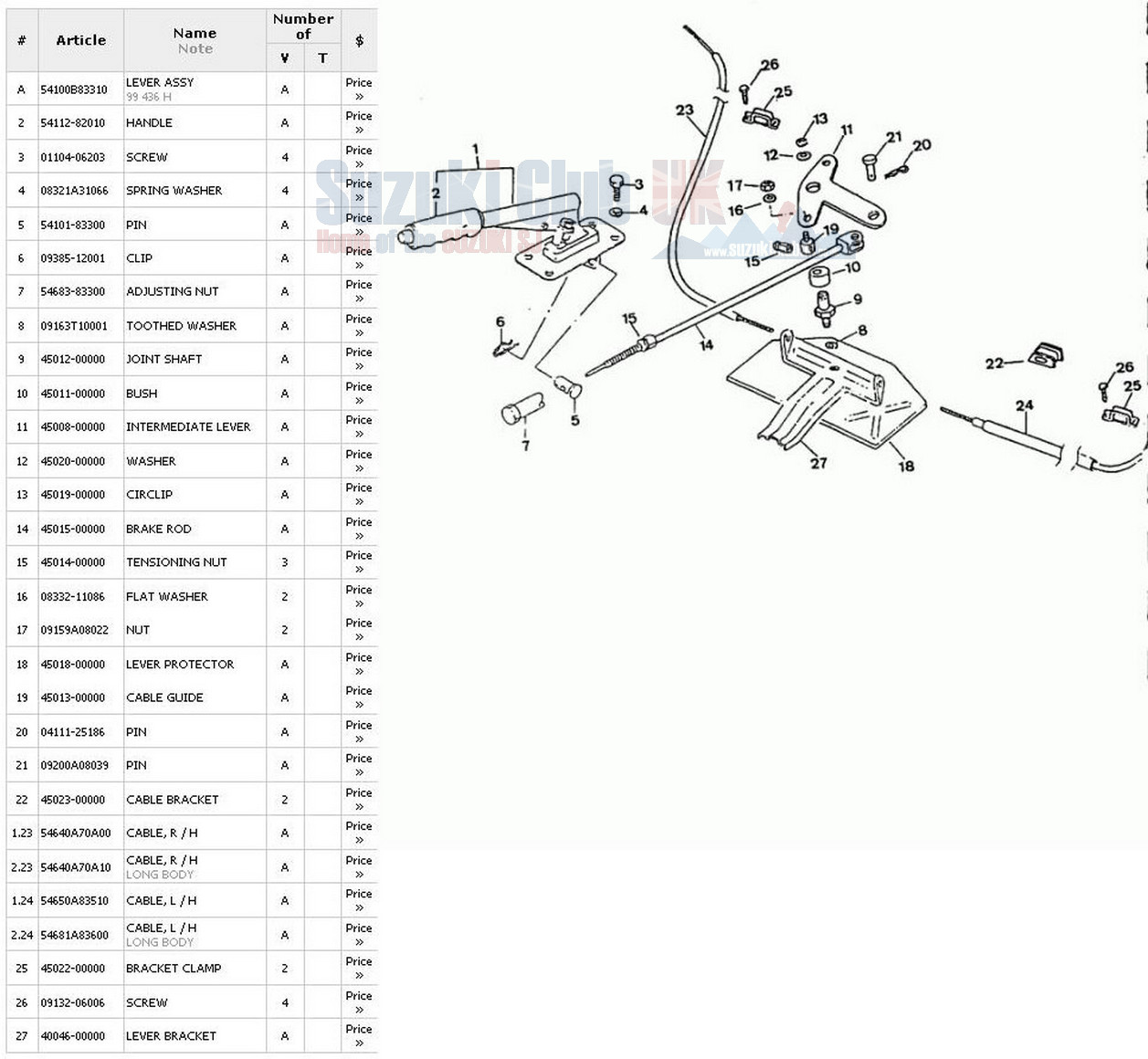

- Handbrake setup 2.jpg (230.56 KiB) Viewed 19226 times
-
- Handbrake setup 3.jpg (204.7 KiB) Viewed 19226 times
2005-GV 1600se, "Hell" What do I know!
