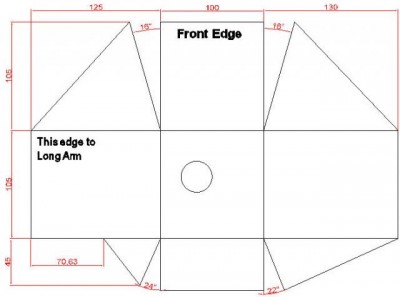

Transferbox guard template

Post by ScottieJ » Tue Mar 04, 2014 4:15 pm

Zuki Build

Steady as she goes!
Top
User avatar
dazerede
Suzuki, will you marry me?
Suzuki, will you marry me?
Posts: 2141
Joined: Fri Sep 30, 2011 10:23 pm
Location: cornwall callington

Re: Transferbox guard template

Post by dazerede » Tue Mar 04, 2014 4:23 pm

Ok ideal what's the best thickness metal to use
Suzuki Sj 410 Jap Built
Recaro Seats Fitted
Landini Blue Colour
Full rollcage and winch bumper
1.6 8v vitara lump with su carb
4” calmini lift kit :)
235/75/15 insa turbo special tracks
99.9% Rust Free
BUILT NOT BOUGHT
Top
User avatar
donkeychomp
I spend far too much time on here
I spend far too much time on here
Posts: 3582
Joined: Thu Aug 18, 2011 3:49 pm
Location: Shepperton, Middx

Re: Transferbox guard template

Post by donkeychomp » Tue Aug 04, 2015 10:02 pm

I used 5mm on mine
If it ticks over...leave it
Top
User avatar
dan_2k_uk
I spend far too much time on here
I spend far too much time on here
Posts: 4924
Joined: Tue May 06, 2008 5:19 pm
Location: Swindon, Wiltshire

Re: Transferbox guard template

Post by dan_2k_uk » Wed Aug 05, 2015 8:59 am

Would have thought 4mm would be sufficient. Look as the strength of the mounts. If you hit a real immovable object its going to rip it off the mounts before damaging the guard.
Janspeed manifold, LWB Vit vented discs and calipers

Build thread -- Build photos -- HLA-Artwork
Coming soon: YJs, Trussed axles, Full float rear.
