Rear disc conversion/Transfer brake

Starts at the flywheel, ends at the hubs, any problems along them lines, ask your questions here.
Post Reply
User avatar
Newtomud
Can I have a tow
Can I have a tow
Posts: 478
Joined: Thu May 05, 2011 3:43 pm
Location: wolverhampton

Rear disc conversion/Transfer brake

Post by Newtomud » Sun Jun 12, 2011 3:34 pm

:redtin:

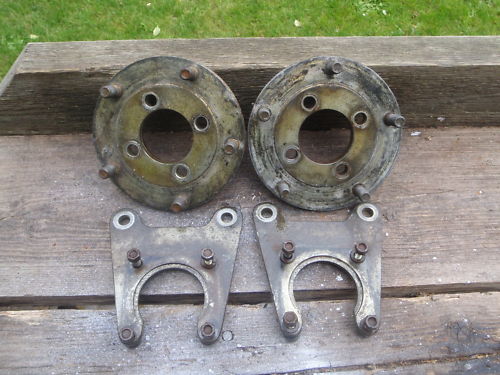

Hi, I'm going to have a go at fitting rear disc brakes to my sj and I've just got hold of these brake caliper mountings. = No hand brake on the rear wheels so do I fit a 410 transfer box with a centre brake? 31 inch special tracks = Rock lobster gears while I'm at it? Is there any particular year of 410 transfer box needed?
Silly Questions but I am new to SJ's. Thanks in advance for any advice. :thumbup:
Attachments
sj brake.jpg
sj brake.jpg (45.03 KiB) Viewed 11190 times

User avatar
Darrell
Suzuki, will you marry me?
Suzuki, will you marry me?
Posts: 2988
Joined: Wed Feb 23, 2011 7:54 pm
Location: south oxfordshire
Contact:

Re: Rear disc conversion/Transfer brake

Post by Darrell » Sun Jun 12, 2011 4:09 pm

What calipers are you going to use? I have read that rover 600 calipers fit and have the handbrake built in, though i think the cables need to be swaped as well.
2005-GV 1600se, "Hell" What do I know!

User avatar
Newtomud
Can I have a tow
Can I have a tow
Posts: 478
Joined: Thu May 05, 2011 3:43 pm
Location: wolverhampton

Re: Rear disc conversion/Transfer brake

Post by Newtomud » Sun Jun 12, 2011 4:15 pm

I've got my eye on some original sj calipers. ( Is this good? )

User avatar
Darrell
Suzuki, will you marry me?
Suzuki, will you marry me?
Posts: 2988
Joined: Wed Feb 23, 2011 7:54 pm
Location: south oxfordshire
Contact:

Re: Rear disc conversion/Transfer brake

Post by Darrell » Sun Jun 12, 2011 4:17 pm

They should be fine if your going to get a transferbox handbrake. :thumbup:
2005-GV 1600se, "Hell" What do I know!

User avatar
twiss
SCUK Computer Wizard
SCUK Computer Wizard
Posts: 6110
Joined: Mon Nov 08, 2010 2:28 pm
Location: Birkirkara, Malta
Contact:

Re: Rear disc conversion/Transfer brake

Post by twiss » Sun Jun 12, 2011 5:49 pm

You have a couple of options really... You can put a 410 drum handbrake on, the only thing you may encounter is difference in flange bolt sizes
Easily solved with either a a flange swap, or by drilling some new holes!

You could also get an x-brake, they are disk handbrakes that go on the same place, and are roughly the same size.
You can get the x-brake from x-eng in horsham, west sussex

http://www.x-eng.co.uk" onclick="window.open(this.href);return false;

There are also other companies that do the disk handbrakes, such as Spidertrax

Spidertrax E-brake Kit
Twiss

'93 Suzuki Samurai Sport 1.6 16v SU. Virtual lift, spring under, 31s
'93 Maruti Gypsy MG410

"If brute force doesn't fix your problem, you aren't using enough of it."

User avatar
Newtomud
Can I have a tow
Can I have a tow
Posts: 478
Joined: Thu May 05, 2011 3:43 pm
Location: wolverhampton

Re: Rear disc conversion/Transfer brake

Post by Newtomud » Sun Jun 12, 2011 8:41 pm

As always, Excellent information here... Thankyou :o)

User avatar
twiss
SCUK Computer Wizard
SCUK Computer Wizard
Posts: 6110
Joined: Mon Nov 08, 2010 2:28 pm
Location: Birkirkara, Malta
Contact:

Re: Rear disc conversion/Transfer brake

Post by twiss » Sun Jun 12, 2011 11:21 pm

One thing about the x-brake, their downside is they can need a stronger return spring to ensure the brake disengages properly every time...

Or so I've heard..
Twiss

'93 Suzuki Samurai Sport 1.6 16v SU. Virtual lift, spring under, 31s
'93 Maruti Gypsy MG410

"If brute force doesn't fix your problem, you aren't using enough of it."

User avatar
Henry
Suzuki Guru
Suzuki Guru
Posts: 1219
Joined: Wed Apr 01, 2009 6:08 pm

Re: Rear disc conversion/Transfer brake

Post by Henry » Mon Jun 13, 2011 10:29 am

Darrell wrote:What calipers are you going to use? I have read that rover 600 calipers fit and have the handbrake built in, though i think the cables need to be swaped as well.

The 600 calliper has to be mounted at 2 oclock so the bleed nipple sits at the top

User avatar
Newtomud
Can I have a tow
Can I have a tow
Posts: 478
Joined: Thu May 05, 2011 3:43 pm
Location: wolverhampton

Re: Rear disc conversion/Transfer brake

Post by Newtomud » Mon Jun 13, 2011 6:38 pm

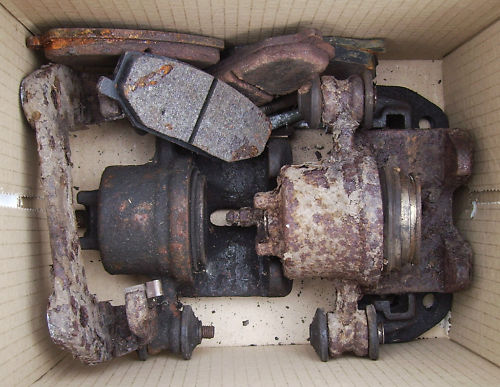

I have the calipers now.. They'll need rebuilding first as the're a bit manky.
Attachments

User avatar
Highlander
Can I have a tow
Can I have a tow
Posts: 350
Joined: Thu Sep 08, 2011 12:19 pm
Location: Kilmarnock

Re: Rear disc conversion/Transfer brake

Post by Highlander » Thu Sep 08, 2011 2:41 pm

Henry wrote:
Darrell wrote:What calipers are you going to use? I have read that rover 600 calipers fit and have the handbrake built in, though i think the cables need to be swaped as well.

The 600 calliper has to be mounted at 2 oclock so the bleed nipple sits at the top
or 10 o'Clock depending what side your looking at :)

very interesting this, i've got a pair of Ford Scorpio calipers with built in Handbrake that are a perfect fit for the SJ discs, I think Im going to have to fabricate a bracket for them though, rather than use the SJ caliper mounts
