I've been searching again and have now found a diagram for a Spanish tranferbox handbrake. So a new diagram for comparison.transmission brake shoes
-
Darrell
- Suzuki, will you marry me?
- Posts: 2989
- Joined: Wed Feb 23, 2011 7:54 pm
- Location: south oxfordshire
- Contact:
Re: transmission brake shoes

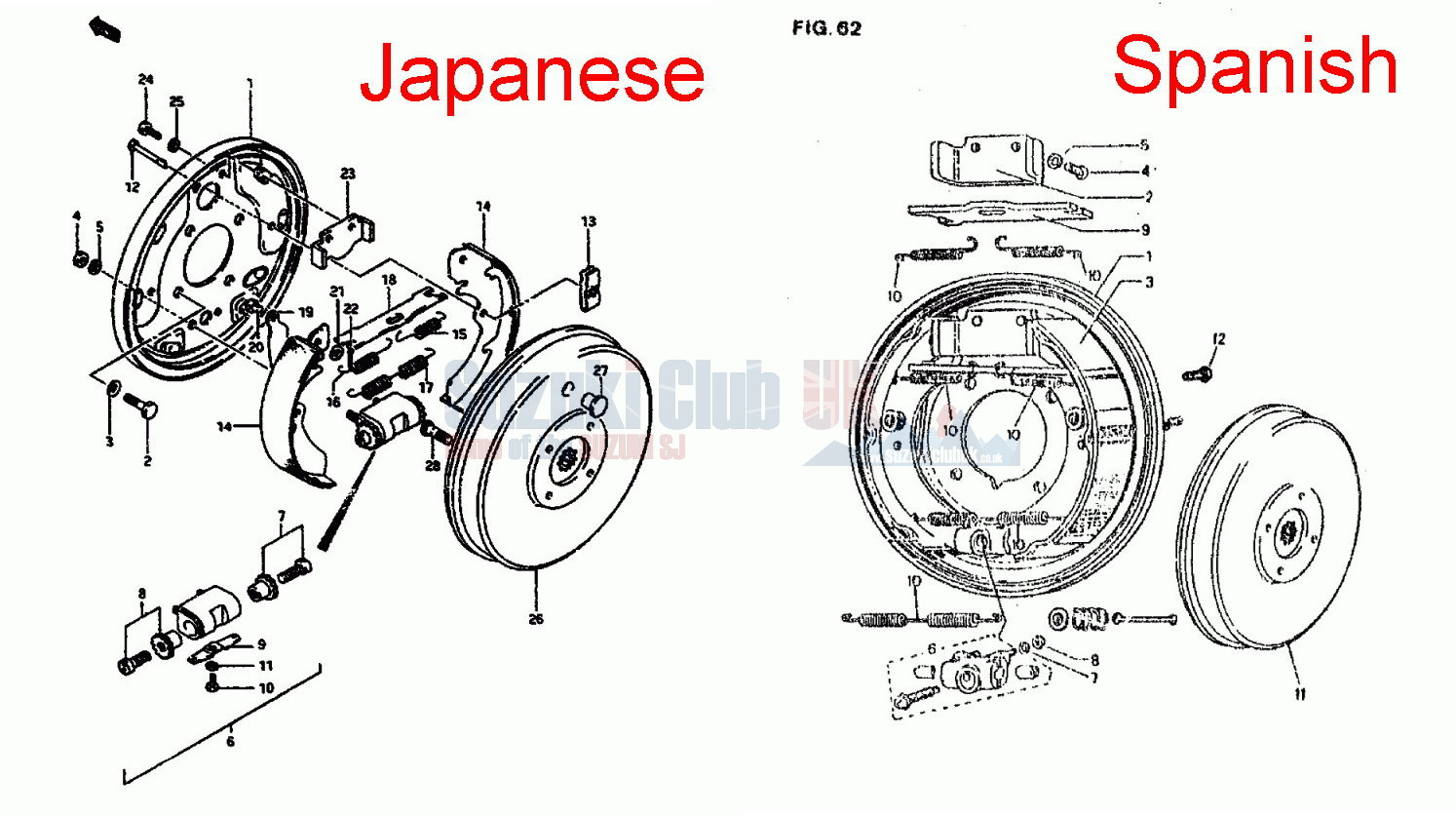

So after that info from "rockwatt" I've been searching again and have now found a diagram for a Spanish tranferbox handbrake. So a new diagram for comparison.
I've been searching again and have now found a diagram for a Spanish tranferbox handbrake. So a new diagram for comparison.- Attachments
-
- Transfer box handbrake types.jpg (250.58 KiB) Viewed 6230 times
2005-GV 1600se, "Hell" What do I know!
Re: transmission brake shoes
Can anybody spot the difference ?
The Spanish has a squire peg adjuster on the outside and the jap has internal adjusters accessed through 2 hole in the back plate and the ends of the shoes are profiled to the type of adjuster.
Ps the drums, cable, shoe retaining clips are all the same.
The shoes are also used on the back brakes on some cars but I can't remember what cars now.
Could probably find out from the part numbers though.
The Spanish has a squire peg adjuster on the outside and the jap has internal adjusters accessed through 2 hole in the back plate and the ends of the shoes are profiled to the type of adjuster.
Ps the drums, cable, shoe retaining clips are all the same.
The shoes are also used on the back brakes on some cars but I can't remember what cars now.
Could probably find out from the part numbers though.
Rocklobster gears , refurb cases , dual cases , su manifolds , jimny rocklobster conversions inc speedo drive, t/case heavy duty mounting arms and rock buckets, bespoke fabrications and machining,
Contact me for details.
Contact me for details.
-
ROBBIE
- I spend far too much time on here
- Posts: 4552
- Joined: Tue Sep 09, 2008 6:32 pm
- Location: Dorset or stuck
Re: transmission brake shoes
I got the jap which is a pita to adjust, is the spanish 1 easier??
Sid James gone but never forgotten
Jimny 1.6 not as good as an SJ but still good
Jimny 1.6 not as good as an SJ but still good
Re: transmission brake shoes
OK that would be bril !! just to conferm would it be everyting in the pic. IGNORE THE RED CIRCLES.rockwatt wrote:I've got quite a few full units ! I always save them complete if there in good condition.
£15+p&p complete
And there are 2 different types jap and Spanish.
oh and i have the japanese version
- Attachments
-
- suzuki sj handbrake.jpg (53.8 KiB) Viewed 6162 times
