Said small piece fell out when the gear box hit me. Any ideas?
Will try n get a photo up. Im thinkings its either some sort of bush or spacer. Possibly for a bolt or something
Jordi
Small steel tube. Approx 1" long 1/4" diameter
-
Jordi
- Bow down before me
- Posts: 7535
- Joined: Sun Nov 29, 2009 2:35 pm
- Location: Darlington, Co. Durham
Small steel tube. Approx 1" long 1/4" diameter
1988 Samurai - Truck Cab & Tray Back - 1.6 8v & HIF44 - Snorkel - Stack Exhaust - PAS, YJs & 33s - Trussed, Gusseted & Pumpkin Capped Axles - 4.3 R&Ps - 4.16 T/Box - Rear Air Locker - Full Float Back Axle & Discs - RCV Front Shafts - X-Eng Handbrake - Custom Fuel Tank
Re: Small steel tube. Approx 1" long 1/4" diameter
one of the top dowels that aids mating gearbox to engine poss
if in doubt, FLAT OUT!
mans tool kit > duct tape, wd40 and a bfh is all you ever need
mans tool kit > duct tape, wd40 and a bfh is all you ever need
-
Edweird
- Suzuki, will you marry me?
- Posts: 2531
- Joined: Sat Jan 23, 2010 11:04 pm
- Location: Brigg, North Lincolnshire
Re: Small steel tube. Approx 1" long 1/4" diameter
trotter wrote:one of the top dowels that aids mating gearbox to engine poss

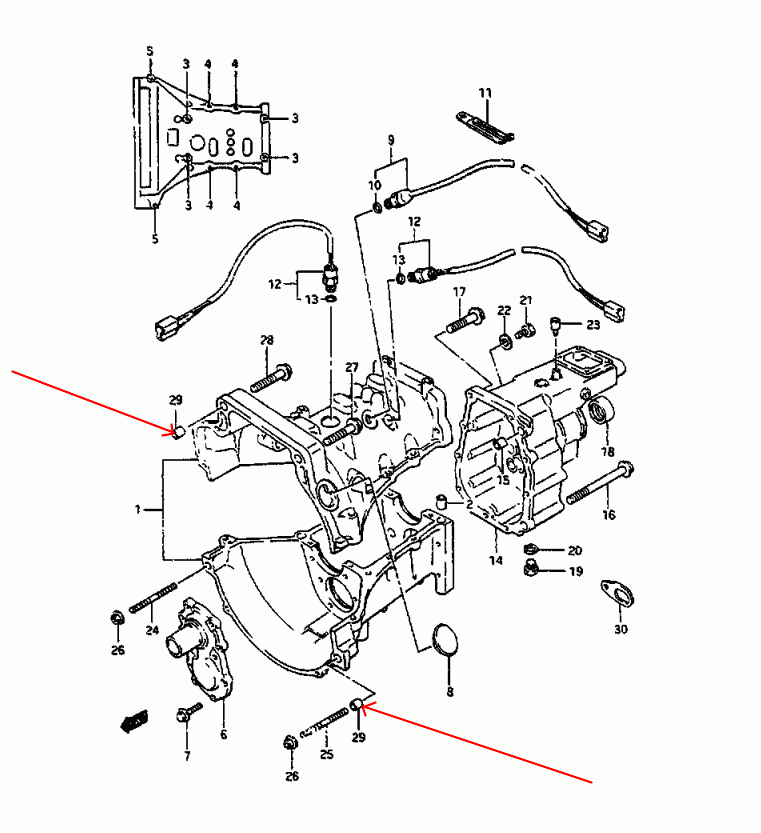

I thought the same. Where the bell housing bolts to the block some of the bolt holes have these 'dowels', basically a short bit of tube that locates the gearbox on the engine then a bolt goes through the middle of it.
There's three ways of doing things:
The right way,
The wrong way
And my way, which is like the wrong way but faster.
The right way,
The wrong way
And my way, which is like the wrong way but faster.
-
Darrell
- Suzuki, will you marry me?
- Posts: 2988
- Joined: Wed Feb 23, 2011 7:54 pm
- Location: south oxfordshire
- Contact:
Re: Small steel tube. Approx 1" long 1/4" diameter

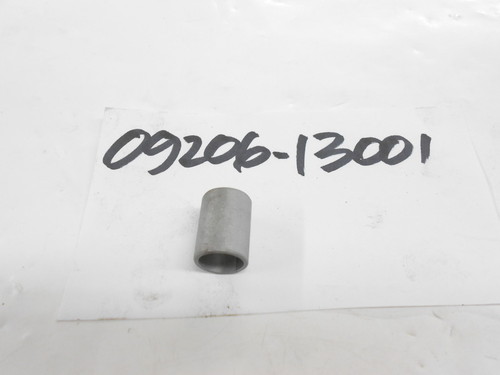

Like this ??????????
- Attachments
-
- $(KGrHqJ,!p0E63ZpHW!9BO-jEG3WIQ~~60_12.JPG (17.96 KiB) Viewed 5270 times
2005-GV 1600se, "Hell" What do I know!
-
Jordi
- Bow down before me
- Posts: 7535
- Joined: Sun Nov 29, 2009 2:35 pm
- Location: Darlington, Co. Durham
Re: Small steel tube. Approx 1" long 1/4" diameter
Just like that
1988 Samurai - Truck Cab & Tray Back - 1.6 8v & HIF44 - Snorkel - Stack Exhaust - PAS, YJs & 33s - Trussed, Gusseted & Pumpkin Capped Axles - 4.3 R&Ps - 4.16 T/Box - Rear Air Locker - Full Float Back Axle & Discs - RCV Front Shafts - X-Eng Handbrake - Custom Fuel Tank
-
Darrell
- Suzuki, will you marry me?
- Posts: 2988
- Joined: Wed Feb 23, 2011 7:54 pm
- Location: south oxfordshire
- Contact:
Re: Small steel tube. Approx 1" long 1/4" diameter
- justlikethat.jpg (21.61 KiB) Viewed 5258 times
- Attachments
-
- lunapic_135224196792932_6.gif (43.85 KiB) Viewed 5258 times
2005-GV 1600se, "Hell" What do I know!
-
Jordi
- Bow down before me
- Posts: 7535
- Joined: Sun Nov 29, 2009 2:35 pm
- Location: Darlington, Co. Durham
Re: Small steel tube. Approx 1" long 1/4" diameter
Cheers for all the help chaps. I was too busy tryin not to get covered in gearbox oil or hit by it as it dislodged to care what it was. Then i wondered how important is it?
Jordi
