Hi all, last week I took my samurai out playing at sibbertoft and managed to break the o/s handbrake cable.After a week of ringing round literally everywhere trying to souce a new one I have failed miserably because as you all probably already know along with many other parts for sj's,they've been discontinued.
My question is, is there a similar cable for another vehicle that can be used instead?...ive already tried a swb vitara cable which has too much slack.
Any help would be great before I blow any more money on this problem.
Thanks in advance!
samurai handbrake cable???...help!!!!
-
Jordi
- Bow down before me
- Posts: 7535
- Joined: Sun Nov 29, 2009 2:35 pm
- Location: Darlington, Co. Durham
Re: samurai handbrake cable???...help!!!!
Which cable is it?
I have a complete cable off my samurai for sale.
I have a complete cable off my samurai for sale.
1988 Samurai - Truck Cab & Tray Back - 1.6 8v & HIF44 - Snorkel - Stack Exhaust - PAS, YJs & 33s - Trussed, Gusseted & Pumpkin Capped Axles - 4.3 R&Ps - 4.16 T/Box - Rear Air Locker - Full Float Back Axle & Discs - RCV Front Shafts - X-Eng Handbrake - Custom Fuel Tank
Re: samurai handbrake cable???...help!!!!
Its the drivers side one but to be honest, both cables look near enough the same!...how much do you want for it, where are based?
-
Jordi
- Bow down before me
- Posts: 7535
- Joined: Sun Nov 29, 2009 2:35 pm
- Location: Darlington, Co. Durham
Re: samurai handbrake cable???...help!!!!
Don't think its the same cable. I have the long cable from handbrake to one drum, then a short cable that joins in the middle of the axle to the other drum.
1988 Samurai - Truck Cab & Tray Back - 1.6 8v & HIF44 - Snorkel - Stack Exhaust - PAS, YJs & 33s - Trussed, Gusseted & Pumpkin Capped Axles - 4.3 R&Ps - 4.16 T/Box - Rear Air Locker - Full Float Back Axle & Discs - RCV Front Shafts - X-Eng Handbrake - Custom Fuel Tank
-
Darrell
- Suzuki, will you marry me?
- Posts: 2988
- Joined: Wed Feb 23, 2011 7:54 pm
- Location: south oxfordshire
- Contact:
Re: samurai handbrake cable???...help!!!!

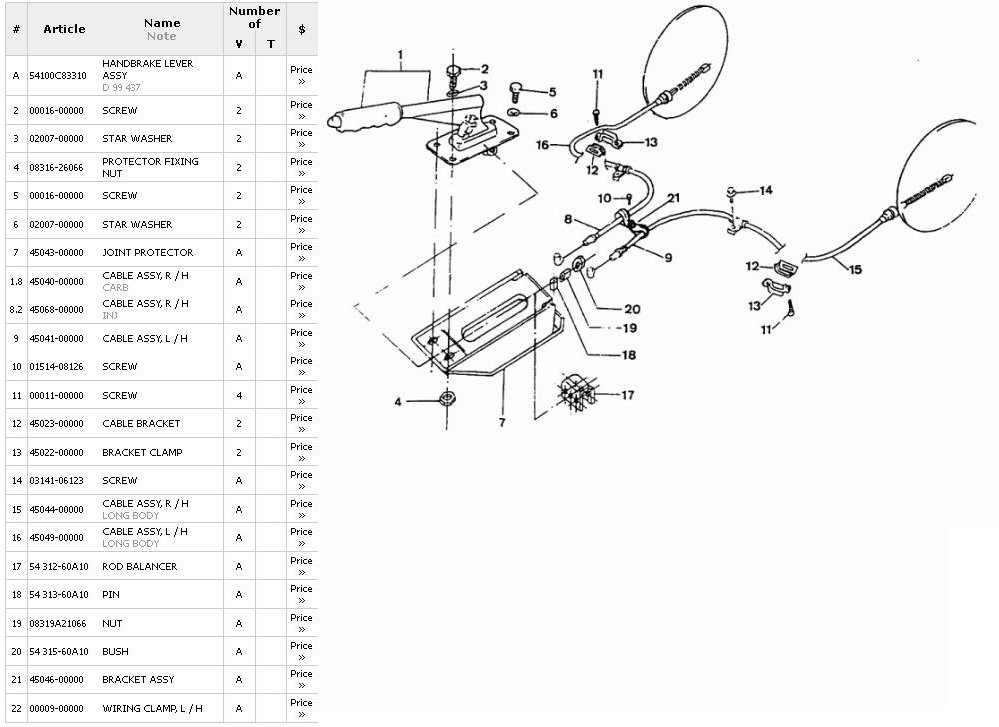

- Handbrake setup 1.jpg (129.38 KiB) Viewed 5886 times
- Handbrake setup 2.jpg (127.53 KiB) Viewed 5886 times
- Handbrake setup 3.jpg (107.42 KiB) Viewed 5886 times
2005-GV 1600se, "Hell" What do I know!
-
Ladaman
- Suzuki Guru
- Posts: 1090
- Joined: Thu Sep 08, 2011 10:56 pm
- Location: Huddersfield, W. Yorkshire
- Contact:
Re: samurai handbrake cable???...help!!!!
I think I might have the one you are looking for.
Non of the local motor factors could get me the right thing when on of mine snapped, so I bodged one up. It lasted just long enough for the MOT.
I've fitted a transfer brake now, so shouldn't need it. I will see if I have a pic for you. Unless you have one?
Non of the local motor factors could get me the right thing when on of mine snapped, so I bodged one up. It lasted just long enough for the MOT.
I've fitted a transfer brake now, so shouldn't need it. I will see if I have a pic for you. Unless you have one?
YouTube
Ignis Sport 1.5 16V; Jimny gearbox, 410 transfer box; 5.125:1 Vitara diffs; rear Lockright, Rob Storr full float rear axle, rear discs, YJ springs, virtual lift, 31" Grizzly Claws, beadlock rims, +50mm LR arches, LED rear lights, LED roof spots, bucket seats, Luke harnesses, internal cage
Ignis Sport 1.5 16V; Jimny gearbox, 410 transfer box; 5.125:1 Vitara diffs; rear Lockright, Rob Storr full float rear axle, rear discs, YJ springs, virtual lift, 31" Grizzly Claws, beadlock rims, +50mm LR arches, LED rear lights, LED roof spots, bucket seats, Luke harnesses, internal cage
-
Ladaman
- Suzuki Guru
- Posts: 1090
- Joined: Thu Sep 08, 2011 10:56 pm
- Location: Huddersfield, W. Yorkshire
- Contact:
Re: samurai handbrake cable???...help!!!!

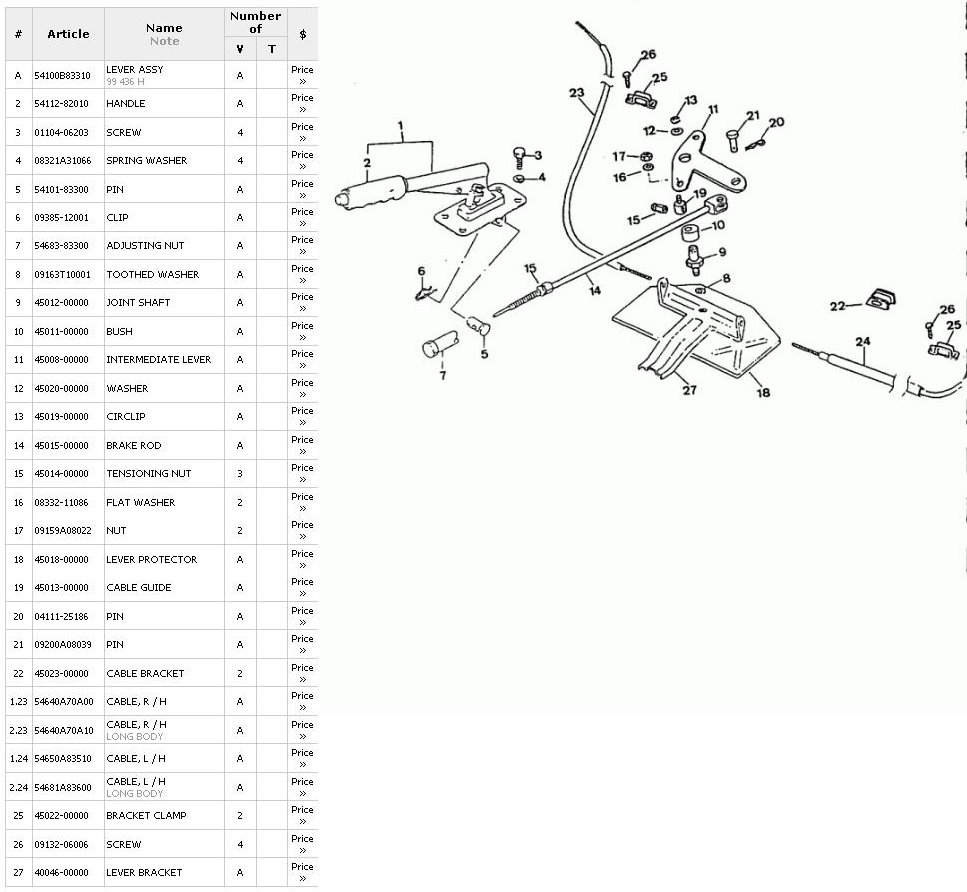

I think the one I have spare is number 23 on the second diagram.
These are the ends. The top one is my home made one which didn't last long.
These are the ends. The top one is my home made one which didn't last long.
- Attachments
-
- Drum end
- IMG00534-20110307-2143.jpg (579.63 KiB) Viewed 5877 times
-
- Adjuster end
- IMG00537-20110307-2144.jpg (501.7 KiB) Viewed 5877 times
YouTube
Ignis Sport 1.5 16V; Jimny gearbox, 410 transfer box; 5.125:1 Vitara diffs; rear Lockright, Rob Storr full float rear axle, rear discs, YJ springs, virtual lift, 31" Grizzly Claws, beadlock rims, +50mm LR arches, LED rear lights, LED roof spots, bucket seats, Luke harnesses, internal cage
Ignis Sport 1.5 16V; Jimny gearbox, 410 transfer box; 5.125:1 Vitara diffs; rear Lockright, Rob Storr full float rear axle, rear discs, YJ springs, virtual lift, 31" Grizzly Claws, beadlock rims, +50mm LR arches, LED rear lights, LED roof spots, bucket seats, Luke harnesses, internal cage
Re: samurai handbrake cable???...help!!!!

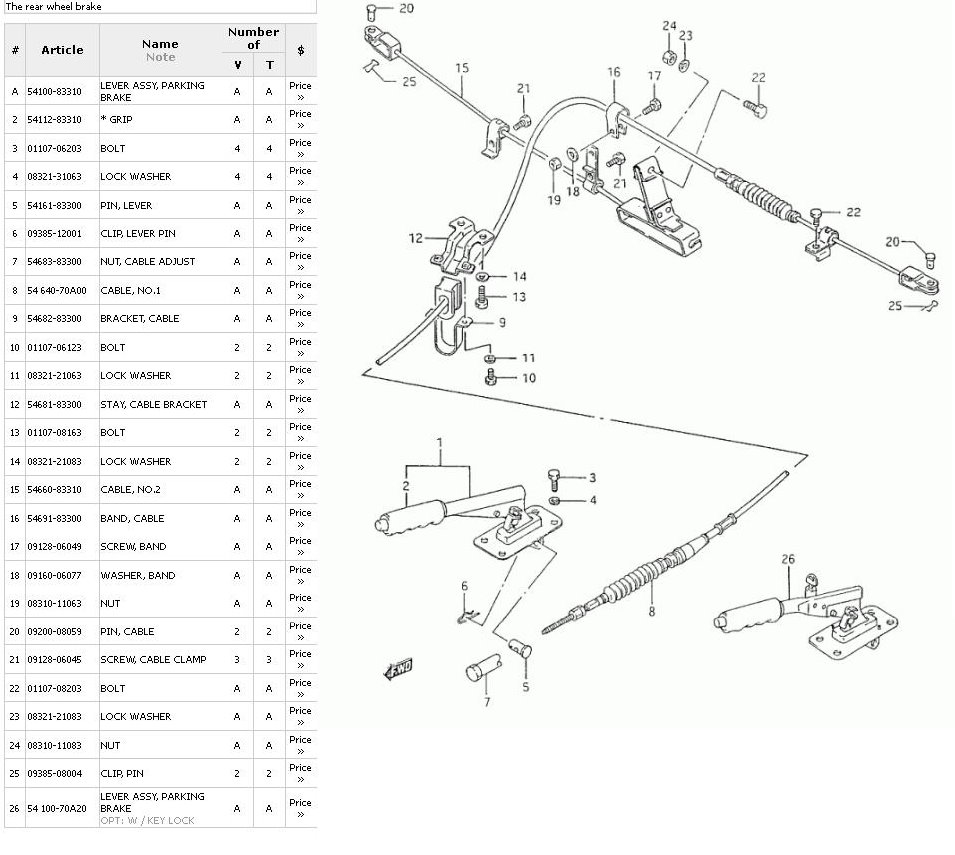

No I still havnt got one.the one thats broke on mine is number 8 on the 3rd diagram.
But I think I may be able to make those cables fit to the bracket attached to the handbrake lever.
I will have a look after work tomorrow and get back to you.
Thanks for the responses, those diagrams are really helpful.
But I think I may be able to make those cables fit to the bracket attached to the handbrake lever.
I will have a look after work tomorrow and get back to you.
Thanks for the responses, those diagrams are really helpful.
-
Tramp
- Suzuki, will you marry me?
- Posts: 2829
- Joined: Fri Jul 25, 2008 10:09 pm
- Location: Rotherham - South Yorkshire
Re: samurai handbrake cable???...help!!!!
My samurai is number 3 diagram, when my cable snapped. I went to my local motorfactors, I could not get a drivers side cable, but the passenger side cable was available, I bought x2 passenger side (to replace both the cables) I had to swap the fitting (number 14) over to make it drivers side, it was the only difference between drivers & passenger. jobs a fish
