Hi everyone having trouble with the release bearing on my 410 when I press the clutch down its fine but when I release the clutch there's a terrible whining I took it to a mechanic and he said the release bearing wasn't coming back far enough? Is there meant to be a pin or some sort holding the real ease bearing the two forks in the gearbox to pull it back? If there we're do I find them?
Thanks
Release bearing
-
twiss
- SCUK Computer Wizard
- Posts: 6110
- Joined: Mon Nov 08, 2010 2:28 pm
- Location: Birkirkara, Malta
- Contact:
Re: Release bearing
sounds like your release bearing is buggered anyway
there are indeed two forks with a pin on one of them... (on a 413 anyway)
the release bearing hooks onto the little pin
if you are taking the gearbox off i would consider putting a new one in anyway (or possibly a whole new clutch if the price was right)
there are indeed two forks with a pin on one of them... (on a 413 anyway)
the release bearing hooks onto the little pin
if you are taking the gearbox off i would consider putting a new one in anyway (or possibly a whole new clutch if the price was right)
Twiss
'93 Suzuki Samurai Sport 1.6 16v SU. Virtual lift, spring under, 31s
'93 Maruti Gypsy MG410
"If brute force doesn't fix your problem, you aren't using enough of it."
'93 Suzuki Samurai Sport 1.6 16v SU. Virtual lift, spring under, 31s
'93 Maruti Gypsy MG410
"If brute force doesn't fix your problem, you aren't using enough of it."
Re: Release bearing
Ahh okay so the 410 dosnt have a pin on the 2 forks? So how would it relase?
-
twiss
- SCUK Computer Wizard
- Posts: 6110
- Joined: Mon Nov 08, 2010 2:28 pm
- Location: Birkirkara, Malta
- Contact:
Re: Release bearing
It probably will but I can't say for sure as ive never looked at a 410 box in detail
I've managed to snap the pin out of mine before... think i fixed it with a tiny bolt somehow!
I've managed to snap the pin out of mine before... think i fixed it with a tiny bolt somehow!
Twiss
'93 Suzuki Samurai Sport 1.6 16v SU. Virtual lift, spring under, 31s
'93 Maruti Gypsy MG410
"If brute force doesn't fix your problem, you aren't using enough of it."
'93 Suzuki Samurai Sport 1.6 16v SU. Virtual lift, spring under, 31s
'93 Maruti Gypsy MG410
"If brute force doesn't fix your problem, you aren't using enough of it."
-
Darrell
- Suzuki, will you marry me?
- Posts: 2988
- Joined: Wed Feb 23, 2011 7:54 pm
- Location: south oxfordshire
- Contact:
Re: Release bearing
I've posted this up before (but can't find it) so..
- Attachments
-

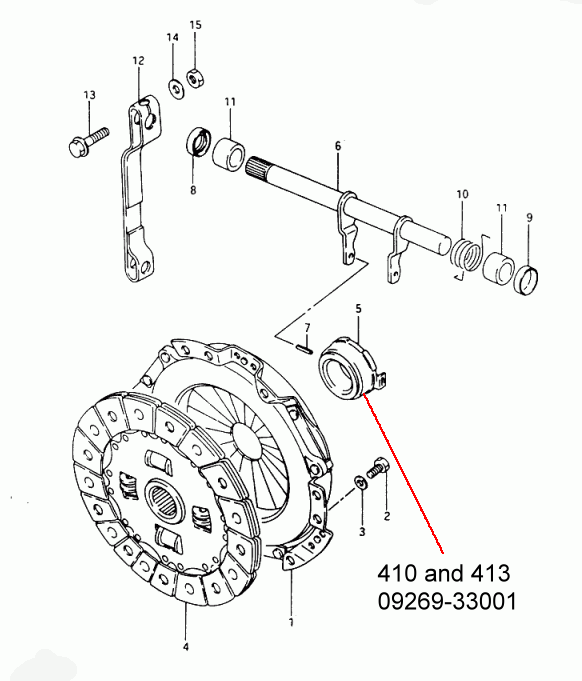

- Early 410 clutch bearing.jpg (86.41 KiB) Viewed 5168 times
-
- Later 410 & 413 clutch bearing.gif (38.93 KiB) Viewed 5168 times
2005-GV 1600se, "Hell" What do I know!
-
Jordi
- Bow down before me
- Posts: 7535
- Joined: Sun Nov 29, 2009 2:35 pm
- Location: Darlington, Co. Durham
Re: Release bearing
Dry / worn bearing
1988 Samurai - Truck Cab & Tray Back - 1.6 8v & HIF44 - Snorkel - Stack Exhaust - PAS, YJs & 33s - Trussed, Gusseted & Pumpkin Capped Axles - 4.3 R&Ps - 4.16 T/Box - Rear Air Locker - Full Float Back Axle & Discs - RCV Front Shafts - X-Eng Handbrake - Custom Fuel Tank
Re: Release bearing
I don't know how I can re attach the bearing to the forks? Any ideas
-
Darrell
- Suzuki, will you marry me?
- Posts: 2988
- Joined: Wed Feb 23, 2011 7:54 pm
- Location: south oxfordshire
- Contact:
Re: Release bearing
What's broken/missing on yours.
Is yours the early or later type.
The early spring clips are prone to breaking I've read..
Is yours the early or later type.
The early spring clips are prone to breaking I've read..
- Attachments
-
- M-09448-12005-SS.jpg (5.08 KiB) Viewed 5129 times
