I wanted a small rear winch so the old petrol tank had to go.

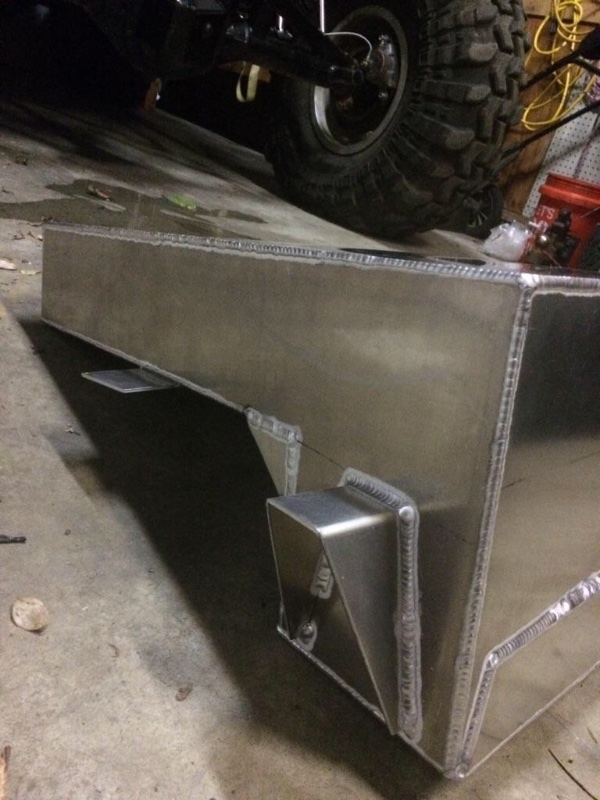

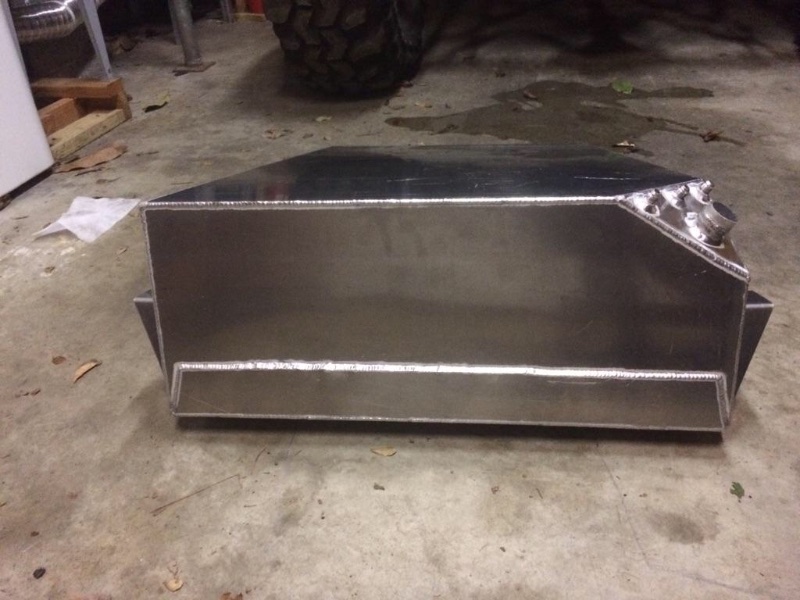

I asked for a custom fuel cell.... Instead, I got a work of art.
Attachments
No words
No words
Simply no words
Simply no words

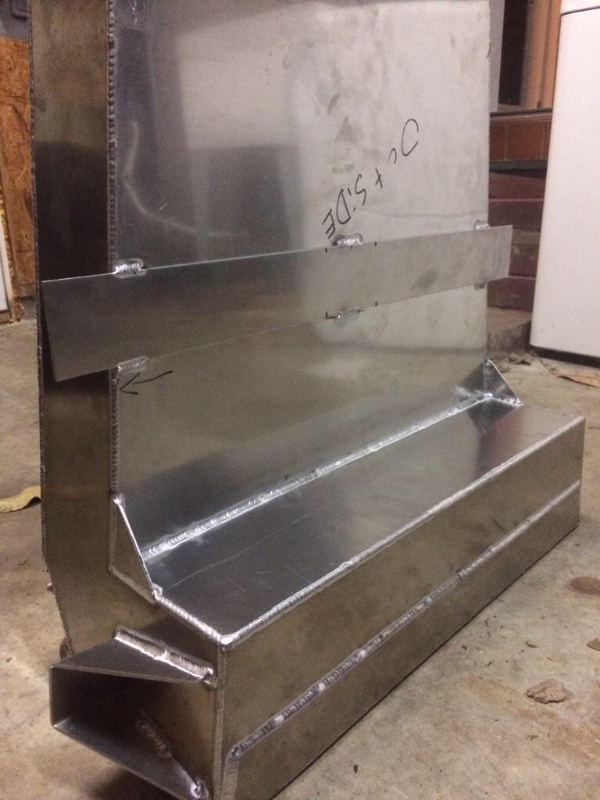

Just.... wow.
Just.... wow.

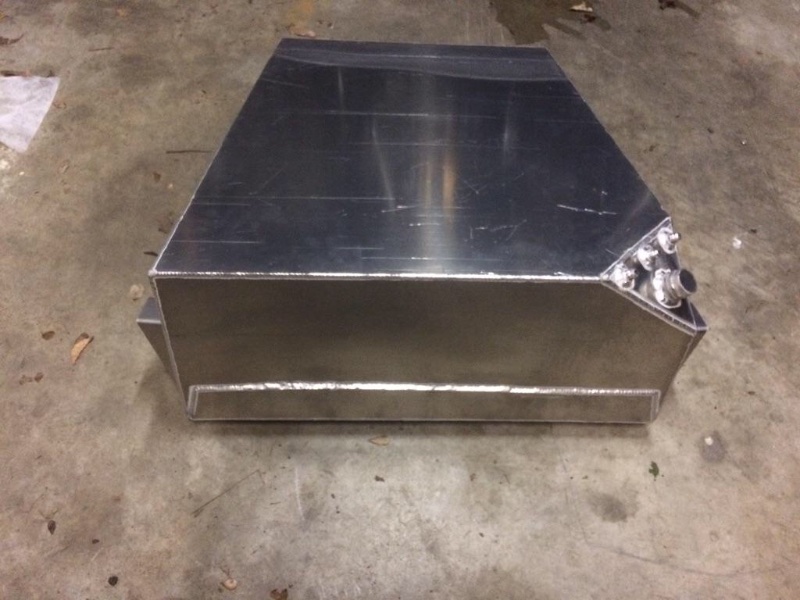

Shallow design to go over the rear axle
Shallow design to go over the rear axle

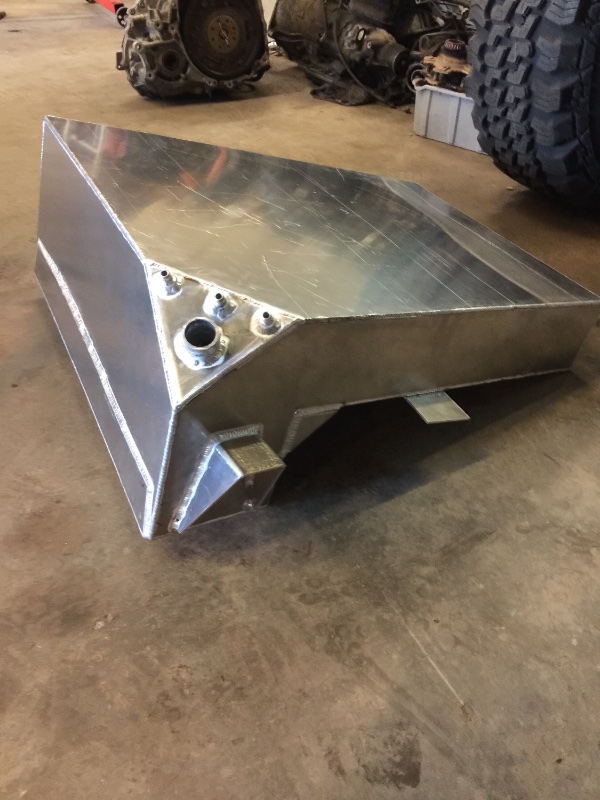

There's extra thick plate on the rear underside
There's extra thick plate on the rear underside

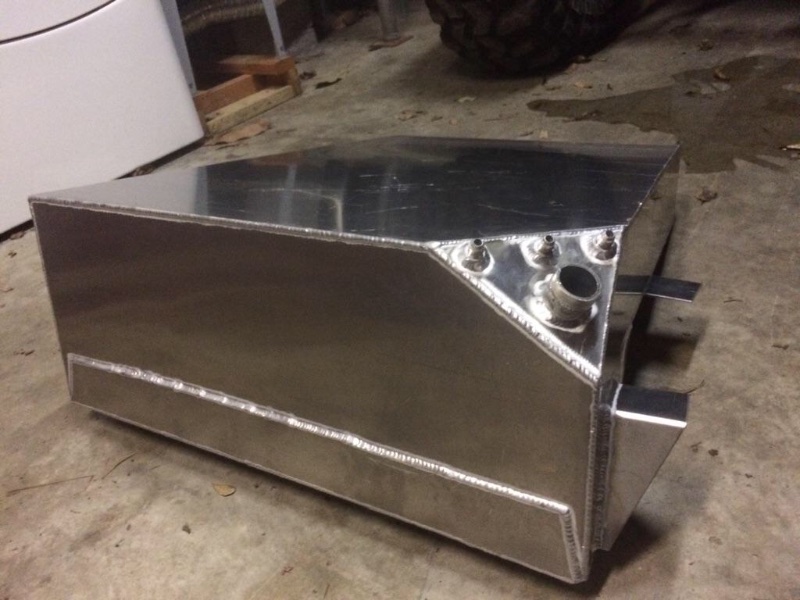

It does have a sender unit... Now
It does have a sender unit... Now
Last edited by Rabid Rhino on Wed Apr 25, 2018 12:24 am, edited 1 time in total.

User avatar
Rabid Rhino
Engaged 4wd low
Engaged 4wd low
Posts: 192
Joined: Wed Apr 01, 2015 5:53 pm
Location: New York, USA

Re: LJC 160

Post by Rabid Rhino » Tue Apr 24, 2018 4:42 am

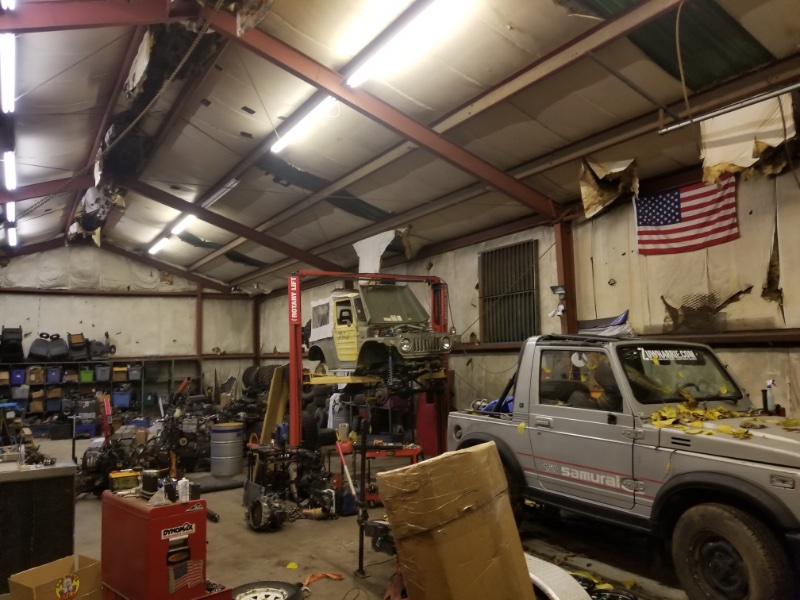

Back at Aftermarket4x4
Attachments
Really like this pic showing the Suzuki Racing pedigree of the place.
Really like this pic showing the Suzuki Racing pedigree of the place.
Last edited by Rabid Rhino on Wed Apr 25, 2018 12:10 am, edited 1 time in total.

User avatar
Rabid Rhino
Engaged 4wd low
Engaged 4wd low
Posts: 192
Joined: Wed Apr 01, 2015 5:53 pm
Location: New York, USA

Re: LJC 160

Post by Rabid Rhino » Tue Apr 24, 2018 5:31 am

These next pics are up to date as of this weekend at Zuwharrie

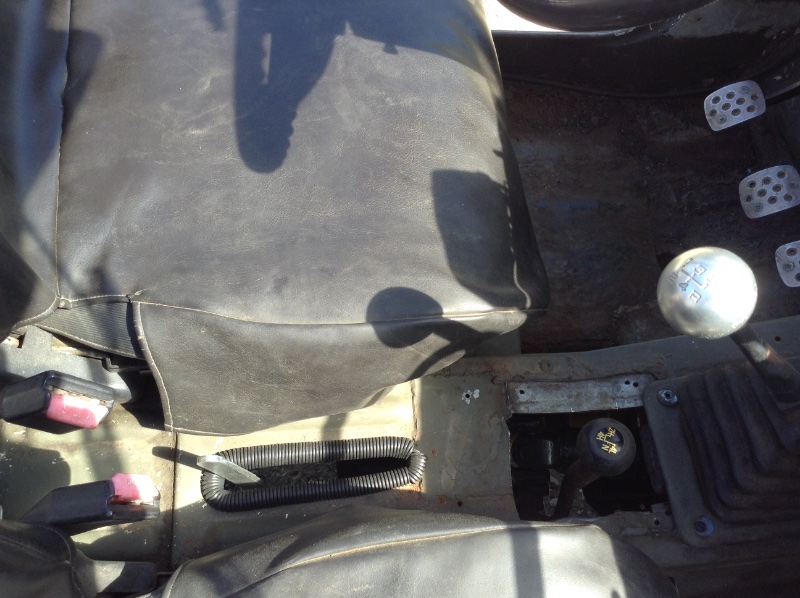

The almost unreachable transfer case stick is just begging fo an Sector 4 Offroad cable shift kit. The T case has the heavy duty front output shaft but the S4 Offroad overbuilt is just that, overbuilt and will eliminate another weak spot. Plus I know the owner as they're just down the road so hope to get a good deal on the kit. I've seen it in person several times.... The finish is superb.
Attachments
It's cramped under there.
It's cramped under there.

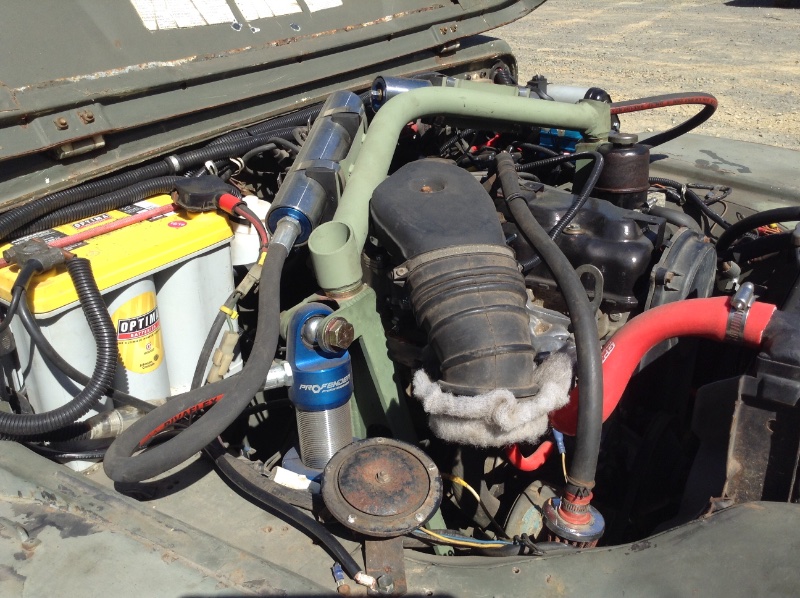

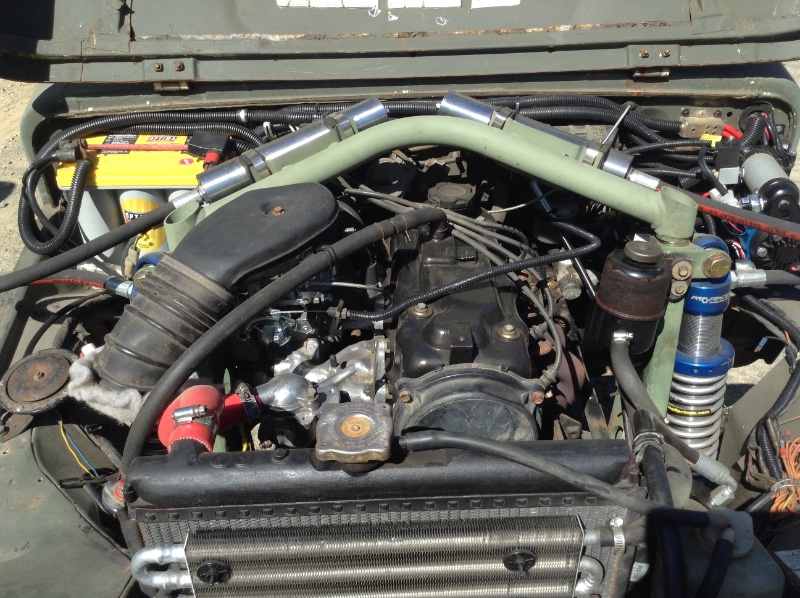

Temporary air filter for the Toyota 3K carb
Temporary air filter for the Toyota 3K carb
Rear Driveshaft Disconnect lever needs to be slightly lengthened & should fit between the 2 fiddle brake levers.
Rear Driveshaft Disconnect lever needs to be slightly lengthened & should fit between the 2 fiddle brake levers.
Last edited by Rabid Rhino on Wed Apr 25, 2018 12:19 am, edited 4 times in total.

User avatar
Rabid Rhino
Engaged 4wd low
Engaged 4wd low
Posts: 192
Joined: Wed Apr 01, 2015 5:53 pm
Location: New York, USA

Re: LJC 160

Post by Rabid Rhino » Tue Apr 24, 2018 5:35 am

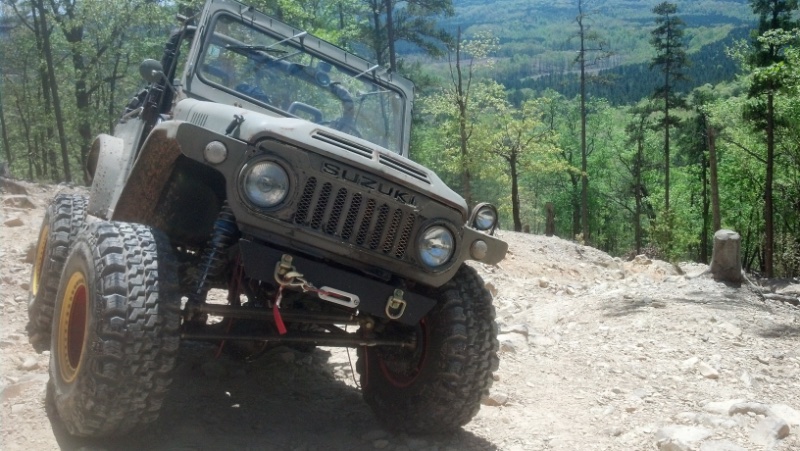

I'll post some Zuwharrie pics else where but here's one of the front of the vehicle with its temporary limiting straps made of synthetic winch rope with the Smokey Mountains in the back ground
Attachments

User avatar
Rabid Rhino
Engaged 4wd low
Engaged 4wd low
Posts: 192
Joined: Wed Apr 01, 2015 5:53 pm
Location: New York, USA

Re: LJC 160

Post by Rabid Rhino » Tue Apr 24, 2018 5:40 am

What better place to end than the rear.
All my rigs have a theme and this one will be no exception.

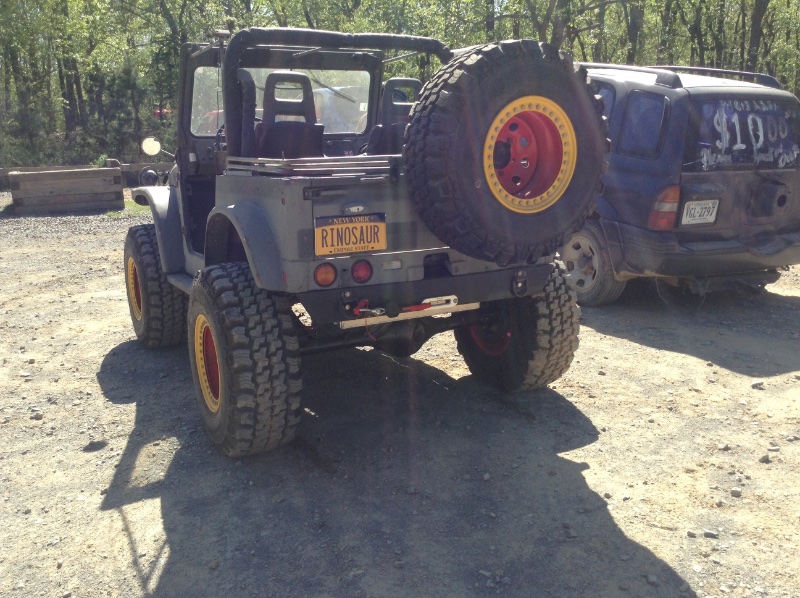

The number plate and "JP" treads mean this is going to be a Jurassic Park tribute vehicle.
Attachments

User avatar
Rabid Rhino
Engaged 4wd low
Engaged 4wd low
Posts: 192
Joined: Wed Apr 01, 2015 5:53 pm
Location: New York, USA

Re: LJC 160

Post by Rabid Rhino » Tue Apr 24, 2018 5:47 am

I have some more pics of the underside on my camera that I have yet to download.
Still have some fine tuning to do before Gonzookin at Rausch Creek. The build spec for this was to cruise Rock Creek there and at the moment I have no doubts it will although I'm pretty sure it would have done so as it was before the conversion as I drove a couple of river beds in Portugal back in 2002 where the river bed boulders weren't that much smaller.

As I said this is a work in progress so I'm open to suggestions if anyone thinks we missed something than can be amended now.

Eg
I'm not happy having 1.5" spacers because the Subaru rear calipers hit the wheel rims despite their huge offset.
Has anyone tried the ZukParts Kit with the mitsubishi calipers ?
Don't really want Rover calipers as this is 'Murca and we don't do that unless it's the range type.

Anti Roll Bar: Any alternative options to Currie Anti-Rock ?
Last edited by Rabid Rhino on Mon Oct 08, 2018 11:59 pm, edited 2 times in total.

User avatar
Jordi
Bow down before me
Bow down before me
Posts: 7535
Joined: Sun Nov 29, 2009 2:35 pm
Location: Darlington, Co. Durham

Re: LJC 160

Post by Jordi » Tue Apr 24, 2018 8:17 am

Impressive. Some A grade fabrication and welding gone into that.

Really like how you have kept the original shell and haven’t cut too much off.
1988 Samurai - Truck Cab & Tray Back - 1.6 8v & HIF44 - Snorkel - Stack Exhaust - PAS, YJs & 33s - Trussed, Gusseted & Pumpkin Capped Axles - 4.3 R&Ps - 4.16 T/Box - Rear Air Locker - Full Float Back Axle & Discs - RCV Front Shafts - X-Eng Handbrake - Custom Fuel Tank

User avatar
Rabid Rhino
Engaged 4wd low
Engaged 4wd low
Posts: 192
Joined: Wed Apr 01, 2015 5:53 pm
Location: New York, USA

Re: LJC 160

Post by Rabid Rhino » Mon Aug 06, 2018 7:13 pm

Jordi, Thanks, the front is kind of a tribute to my favorite Suzuki, the LJ20 which we never got in the UK.

I got some final bits in readiness for Gonzookin.
I was experiencing too much side roll as the as the suspension on the uphill side wanted to unload so a roll bar was needed.
I had some crappy little ones from Jegs about 15 years ago but things have moved on since then.
Currie do loads but they're the only LJ's they cater for are the CJD brand.

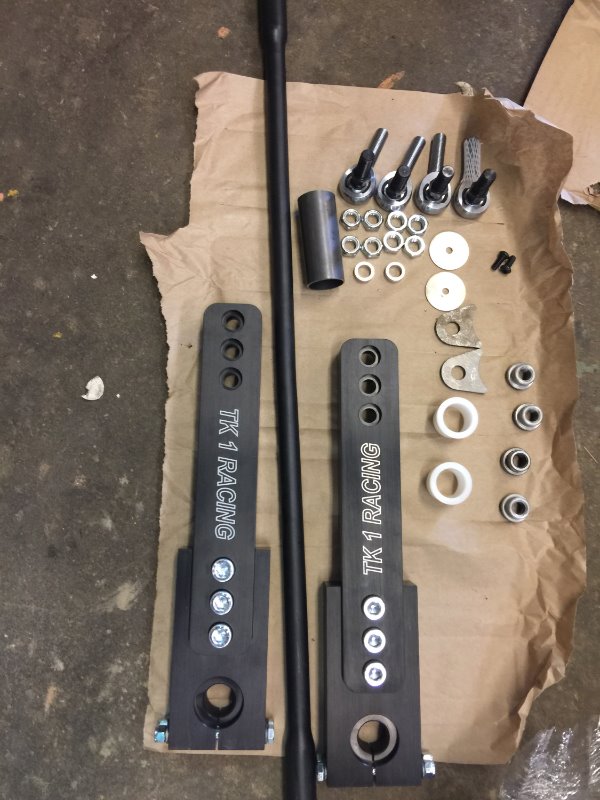

Luckily I found TK1 Racing who do a really neat modular kit that they can easily tailor to your specific needs.

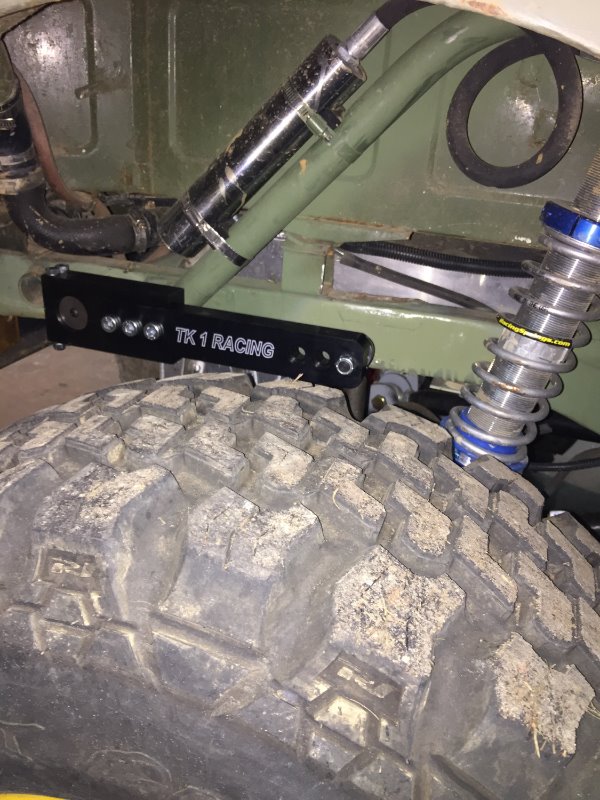

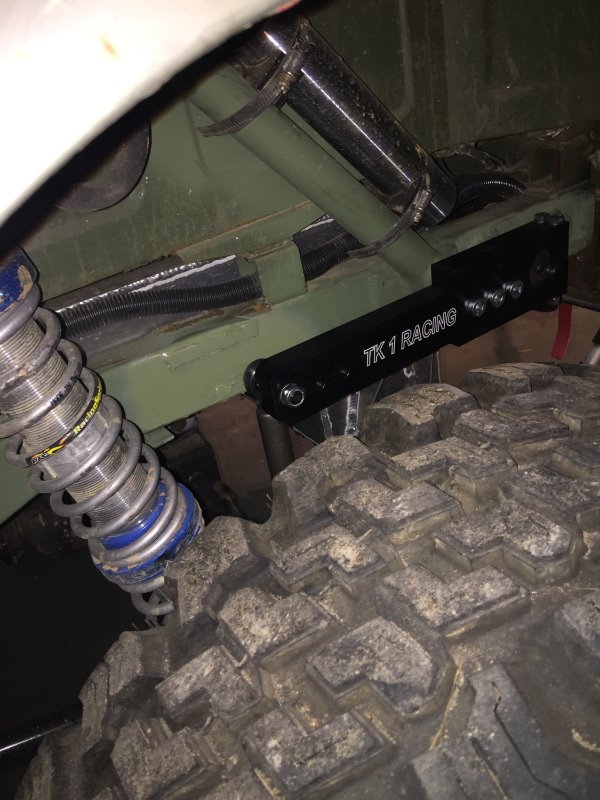

TK1 Sway Bar.jpg
Love my personalized initial tyre treads
Sway Bar ROS.jpg
I'm not alone. A friend of mine has his initials DC on the sidewalls
Sway Bar RNS.jpg
Only on the rear as there's no room up front.
Last edited by Rabid Rhino on Mon Oct 08, 2018 11:58 pm, edited 1 time in total.

User avatar
timwilks13
SCUK Website Padawan
SCUK Website Padawan
Posts: 1248
Joined: Sun Feb 03, 2013 5:55 am
Location: Scarborough, soon to be Poland

Re: LJC 160

Post by timwilks13 » Mon Aug 06, 2018 9:30 pm

Doesn't half look like a nice bit of kit that, excellent work!!
1986 SJ410 - Furry dice, new window winder.

10 kinds of people in this world, those who understand binary and those who dont.

if you can read this you're too close to the monitor, sit back and save your eyes!!
My build, formally Trotters build.

User avatar
Rabid Rhino
Engaged 4wd low
Engaged 4wd low
Posts: 192
Joined: Wed Apr 01, 2015 5:53 pm
Location: New York, USA

Re: LJC 160

Post by Rabid Rhino » Mon Sep 10, 2018 6:38 pm

Thanks Tim. These Yanks don't do a bad job.

I took delivery of the LJC at Gonzookin 18. (I'm having really bad withdrawal symptoms. We need more Suzuki events over here.)
I've been driving it around town for the last month and the TK1 Racing antiroll bar in the rear has really done the trick limiting the roll on the road as well as not limiting it off road as the pics below hopefully show.....

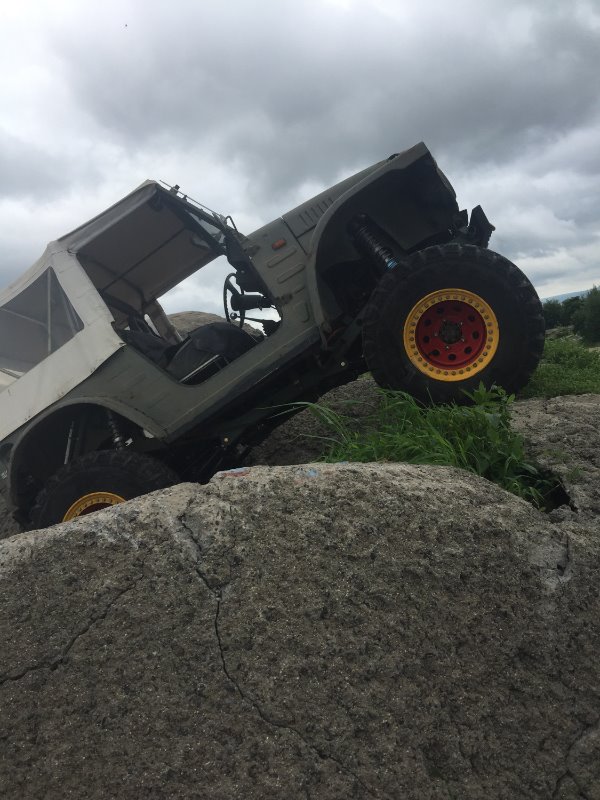

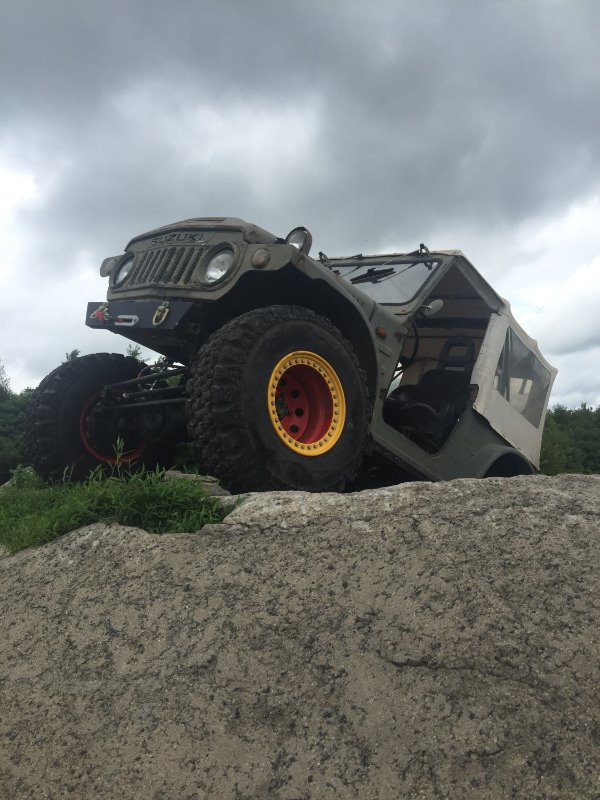

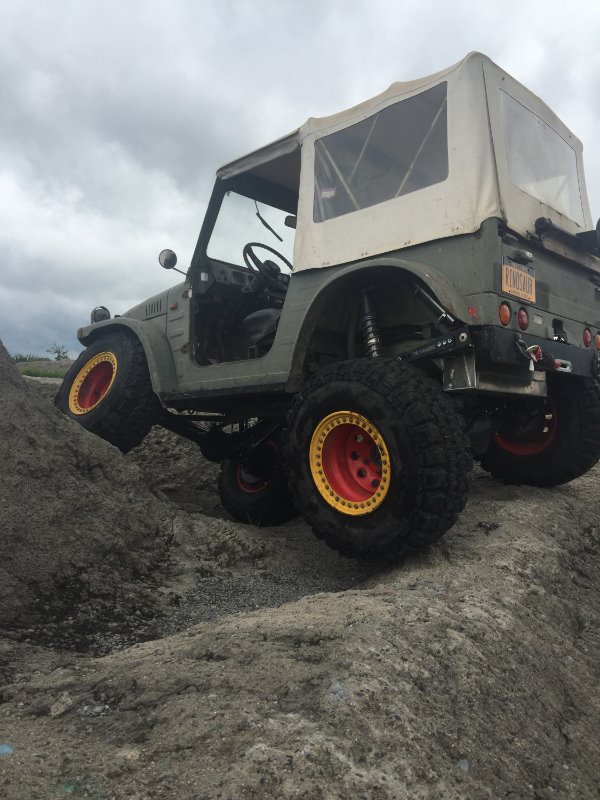

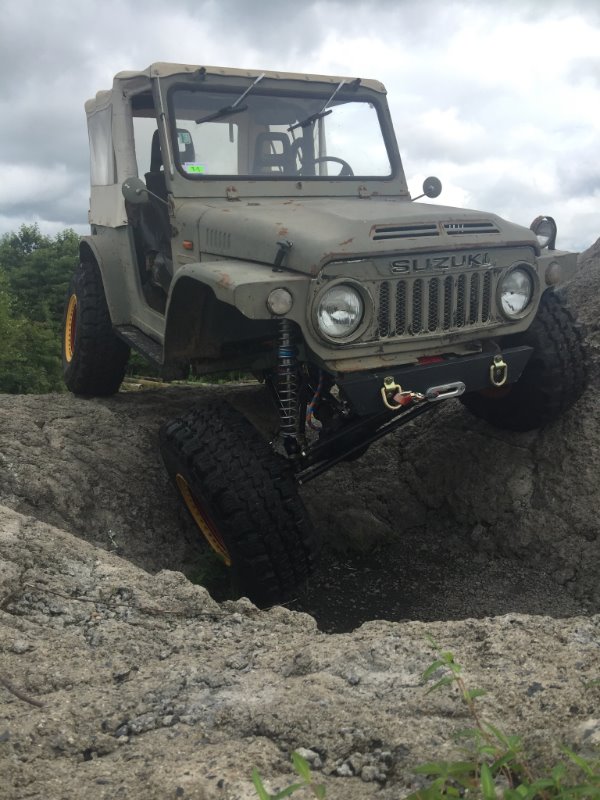

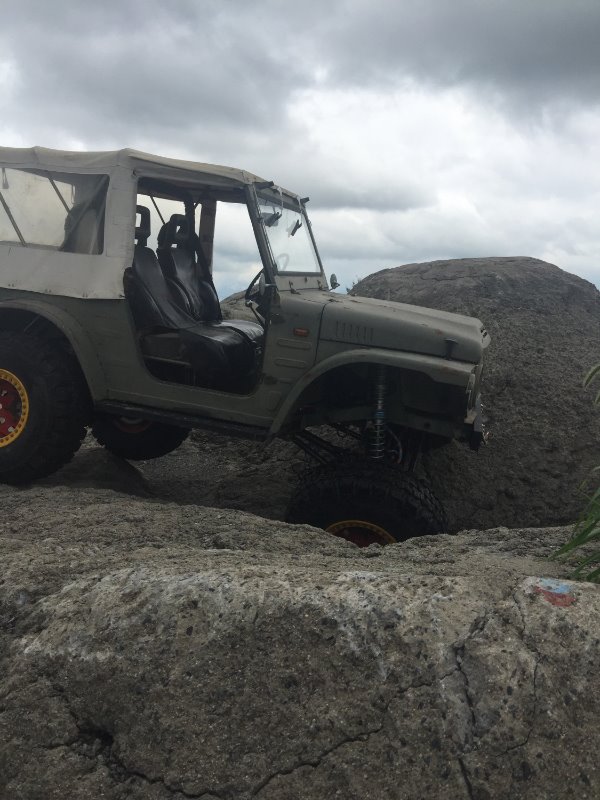

This is on the man made "Comp Course" at Rausch Creek
FLS Crest.jpg
FRS Crest.jpg
RLS Droop.jpg
Missing a wheel....
FRS Droop.jpg
Oh no, there it is...
FR Droop.jpg

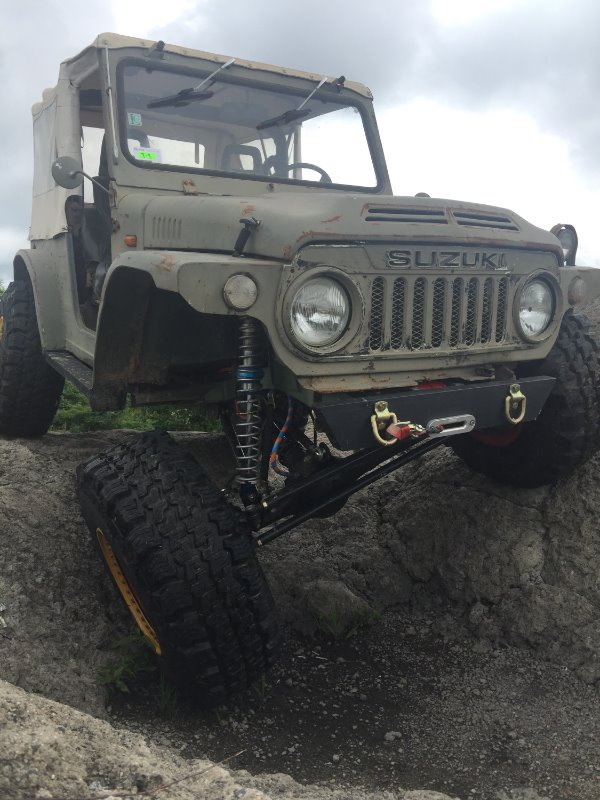

Yep, definitely there, stretching the 14" Limiting Strap
FRS Droop Closeup.jpg
I'll load up some pics & possibly video of Gonzookin 18 in the events section
