Transfer box drum brake cable adjustment

Starts at the flywheel, ends at the hubs, any problems along them lines, ask your questions here.
User avatar
ScottieJ
The Boss
The Boss
Posts: 11635
Joined: Tue Apr 15, 2008 12:13 pm
Location: Chippenham, wiltshire

Re: Transfer box drum brake cable adjustment

Post by ScottieJ » Mon Jun 03, 2013 11:54 am

All the adjustment is done inside the drum, much like manual adjusters in a normal drum brake, there is more than enough adjustment available there to get it working well. I adjust it all the way up to the point that you can't turn the drum with the handbrake released and then back it off a small amount at a time to the point you can no longer here the shoes rubbing as you turn it.
Zuki Build

Steady as she goes!

User avatar
dan_2k_uk
I spend far too much time on here
I spend far too much time on here
Posts: 4924
Joined: Tue May 06, 2008 5:19 pm
Location: Swindon, Wiltshire

Re: Transfer box drum brake cable adjustment

Post by dan_2k_uk » Mon Jun 03, 2013 12:15 pm

Does that take slack from the cable though? My cable is looser than a....... :D
Janspeed manifold, LWB Vit vented discs and calipers

Build thread -- Build photos -- HLA-Artwork
Coming soon: YJs, Trussed axles, Full float rear.

User avatar
ScottieJ
The Boss
The Boss
Posts: 11635
Joined: Tue Apr 15, 2008 12:13 pm
Location: Chippenham, wiltshire

Re: Transfer box drum brake cable adjustment

Post by ScottieJ » Mon Jun 03, 2013 12:18 pm

dan_2k_uk wrote:Does that take slack from the cable though? My cable is looser than a....... :D
If there's loads of slack the cable has probably stretched to a point that it should be replaced :lol:
Zuki Build

Steady as she goes!

User avatar
Jordi
Bow down before me
Bow down before me
Posts: 7535
Joined: Sun Nov 29, 2009 2:35 pm
Location: Darlington, Co. Durham

Re: Transfer box drum brake cable adjustment

Post by Jordi » Mon Jun 03, 2013 12:42 pm

I've done exactly that Scott now i have an adjuster hole. Still pulls a long way. Drum isn't too worn, new shoes, new cable.
1988 Samurai - Truck Cab & Tray Back - 1.6 8v & HIF44 - Snorkel - Stack Exhaust - PAS, YJs & 33s - Trussed, Gusseted & Pumpkin Capped Axles - 4.3 R&Ps - 4.16 T/Box - Rear Air Locker - Full Float Back Axle & Discs - RCV Front Shafts - X-Eng Handbrake - Custom Fuel Tank

User avatar
dan_2k_uk
I spend far too much time on here
I spend far too much time on here
Posts: 4924
Joined: Tue May 06, 2008 5:19 pm
Location: Swindon, Wiltshire

Re: Transfer box drum brake cable adjustment

Post by dan_2k_uk » Mon Jun 03, 2013 12:45 pm

Think I might have to move the bracket I made. Did you end up making the same bracket as mine Jordi?
Janspeed manifold, LWB Vit vented discs and calipers

Build thread -- Build photos -- HLA-Artwork
Coming soon: YJs, Trussed axles, Full float rear.

User avatar
Jordi
Bow down before me
Bow down before me
Posts: 7535
Joined: Sun Nov 29, 2009 2:35 pm
Location: Darlington, Co. Durham

Re: Transfer box drum brake cable adjustment

Post by Jordi » Mon Jun 03, 2013 1:09 pm

Mine went on the original Sammi mount Dan. I think it just wants moving back an inch to tighten the lever up.
1988 Samurai - Truck Cab & Tray Back - 1.6 8v & HIF44 - Snorkel - Stack Exhaust - PAS, YJs & 33s - Trussed, Gusseted & Pumpkin Capped Axles - 4.3 R&Ps - 4.16 T/Box - Rear Air Locker - Full Float Back Axle & Discs - RCV Front Shafts - X-Eng Handbrake - Custom Fuel Tank

User avatar
ROBBIE
I spend far too much time on here
I spend far too much time on here
Posts: 4555
Joined: Tue Sep 09, 2008 6:32 pm
Location: Dorset or stuck

Re: Transfer box drum brake cable adjustment

Post by ROBBIE » Mon Jun 03, 2013 7:09 pm

dan_2k_uk wrote:Think I might have to move the bracket I made. Did you end up making the same bracket as mine Jordi?
You got a pic of yours Dan?
Sid James gone but never forgotten
Jimny 1.6 not as good as an SJ but still good

User avatar
Ladaman
Suzuki Guru
Suzuki Guru
Posts: 1090
Joined: Thu Sep 08, 2011 10:56 pm
Location: Huddersfield, W. Yorkshire
Contact:

Re: Transfer box drum brake cable adjustment

Post by Ladaman » Sat Jun 15, 2013 2:41 pm

This is the bracket I ended up with. I'm not sure how it will cope just bolted to the thin(ish) cross member, but as long as it passes the MOT. There is still no adjustment though :cry:

I can then crack on with my spare axles and rear disc brakes, with hand brakes on them.
Attachments
Transfer brake 2.JPG
Transfer brake 2.JPG (321.42 KiB) Viewed 3853 times
YouTube
Ignis Sport 1.5 16V; Jimny gearbox, 410 transfer box; 5.125:1 Vitara diffs; rear Lockright, Rob Storr full float rear axle, rear discs, YJ springs, virtual lift, 31" Grizzly Claws, beadlock rims, +50mm LR arches, LED rear lights, LED roof spots, bucket seats, Luke harnesses, internal cage

User avatar
Darrell
Suzuki, will you marry me?
Suzuki, will you marry me?
Posts: 2988
Joined: Wed Feb 23, 2011 7:54 pm
Location: south oxfordshire
Contact:

Re: Transfer box drum brake cable adjustment

Post by Darrell » Sat Jun 15, 2013 4:10 pm

Ladaman wrote:Yeah I've read the stickie, and it does say there is a small amount of adjustment on the cable, but I cant think how, nor how the cable would mount.

The cable mount I've made was from flat plate, and where I've bolted it to had FAR too much slack in it. So I have bent mine back to tighten it up, but it seems a bit crap if the cable or 410 set up doesn't have any adjustment from original build.
I've edited the stickie, as the small amount of adjustment is next to nothing ! My bad :oops:
2005-GV 1600se, "Hell" What do I know!

User avatar
Darrell
Suzuki, will you marry me?
Suzuki, will you marry me?
Posts: 2988
Joined: Wed Feb 23, 2011 7:54 pm
Location: south oxfordshire
Contact:

Re: Transfer box drum brake cable adjustment

Post by Darrell » Sat Jun 15, 2013 4:46 pm

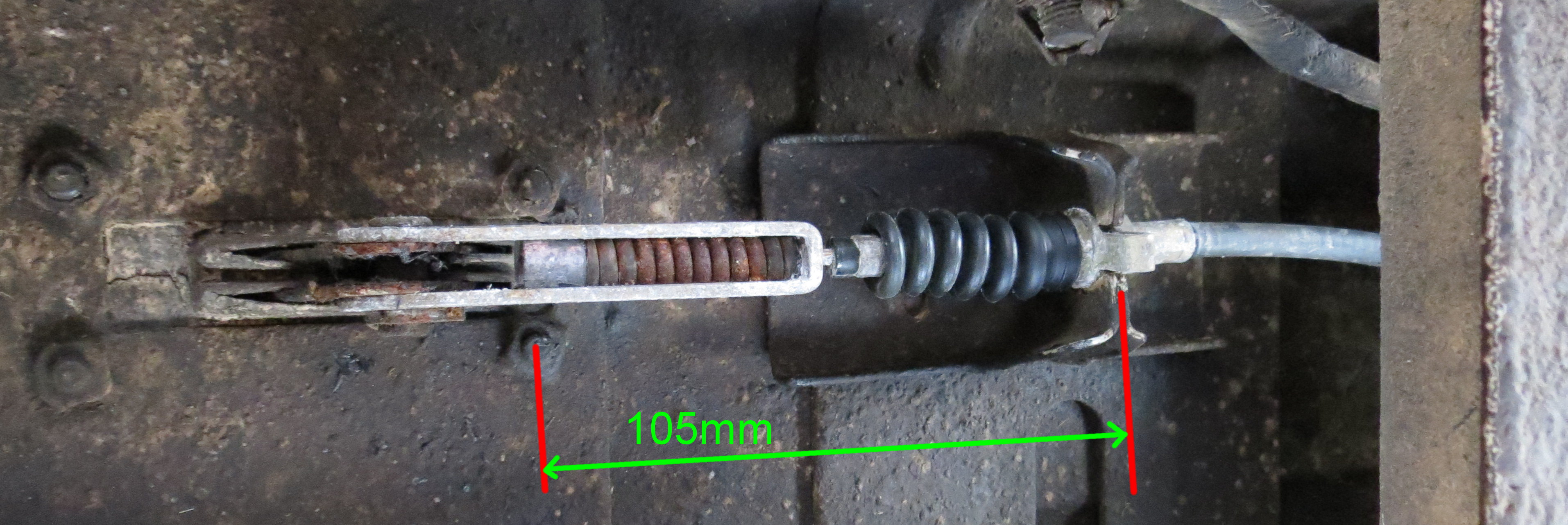

And for future reference (Assuming the handbrake lever fixing bolts are all the same??) a photo.

105mm as best I could eye it up ;)
Attachments
2005-GV 1600se, "Hell" What do I know!

Post Reply
