Mikes lwb build and repairs !

Got an vehicle build underway? post up pictures and tell us all how its going!

Builds threads only please.
User avatar
mike harris
SCUK is my life
SCUK is my life
Posts: 1827
Joined: Sat Jan 08, 2011 8:30 pm
Location: hascombe Surrey

Re: Mikes lwb build and repairs !

Post by mike harris » Sun Jan 22, 2023 3:27 pm

It’s with James now

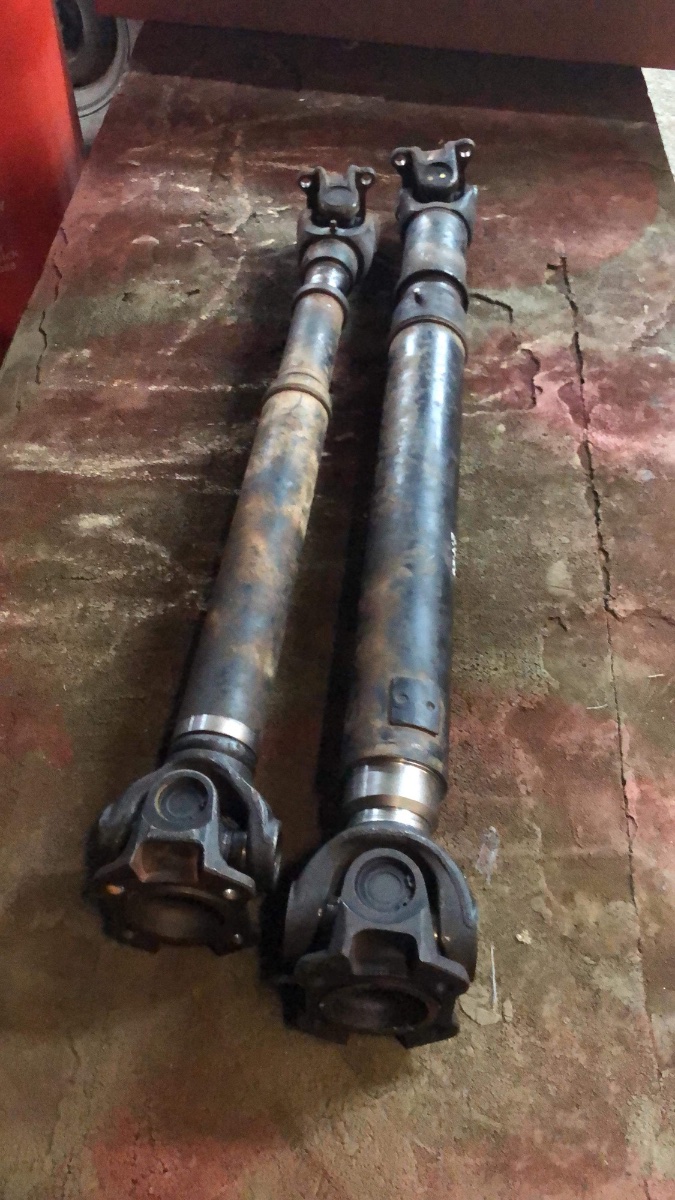

Got the discs, had The props made cruiser to landrover / Volvo

New big compressor now here

Wheels are on the tyres ready

So it’s moving along.

Rankine
Can I have a tow
Can I have a tow
Posts: 260
Joined: Sun Nov 23, 2014 1:38 pm
Location: Stirling, Scotland

Re: Mikes lwb build and repairs !

Post by Rankine » Mon Jan 30, 2023 8:49 pm

Gonna be some beast when it's together
SJ413 LWB Santana 33s, 94",

User avatar
mike harris
SCUK is my life
SCUK is my life
Posts: 1827
Joined: Sat Jan 08, 2011 8:30 pm
Location: hascombe Surrey

Re: Mikes lwb build and repairs !

Post by mike harris » Sat Feb 11, 2023 1:57 pm

Check these out, beefy !

User avatar
mike harris
SCUK is my life
SCUK is my life
Posts: 1827
Joined: Sat Jan 08, 2011 8:30 pm
Location: hascombe Surrey

Re: Mikes lwb build and repairs !

Post by mike harris » Sat Feb 11, 2023 1:59 pm

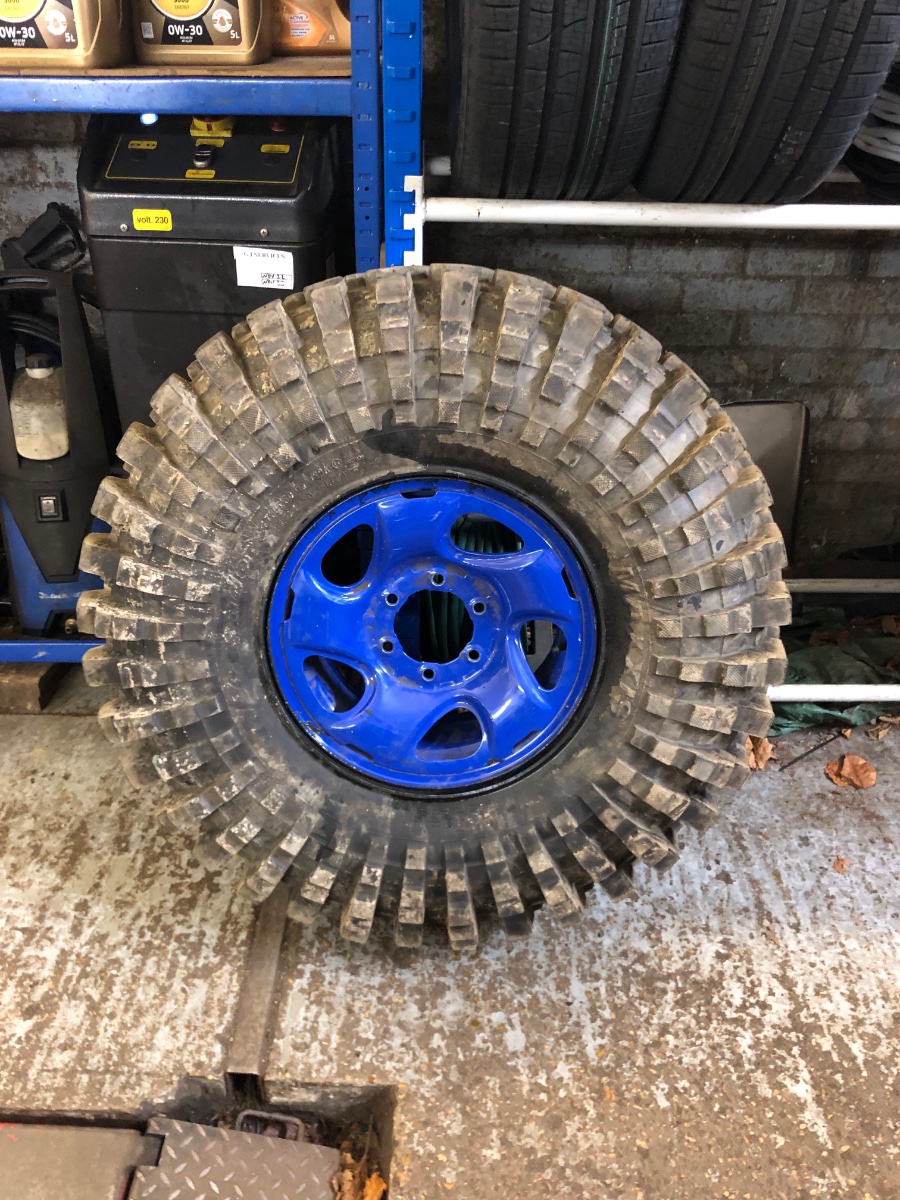

Mud treps (38.5) on the hilux wheels slightly narrower than before should help gain some height and be less likely to pop the bead off too.

There all mounted and with James

User avatar
mike harris
SCUK is my life
SCUK is my life
Posts: 1827
Joined: Sat Jan 08, 2011 8:30 pm
Location: hascombe Surrey

Re: Mikes lwb build and repairs !

Post by mike harris » Sat Feb 11, 2023 2:16 pm

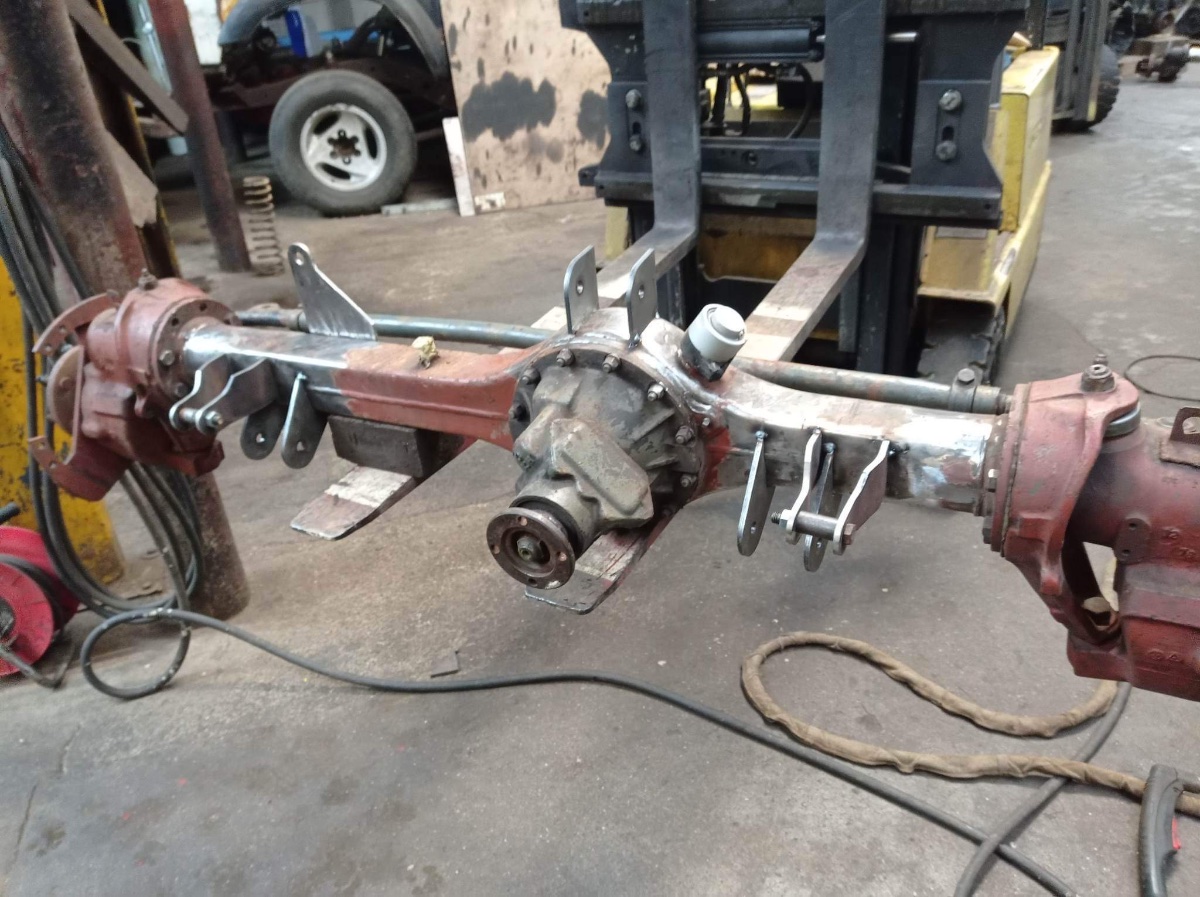

So then, few problems when fitting portals lol

The brakes are far to big and heavy and land rover, yuk.

So I’ve binned them.

New plan use suzuki callipers a mk1 hilux Brake discs, much better.

So got to make that work, and then there is the steering……

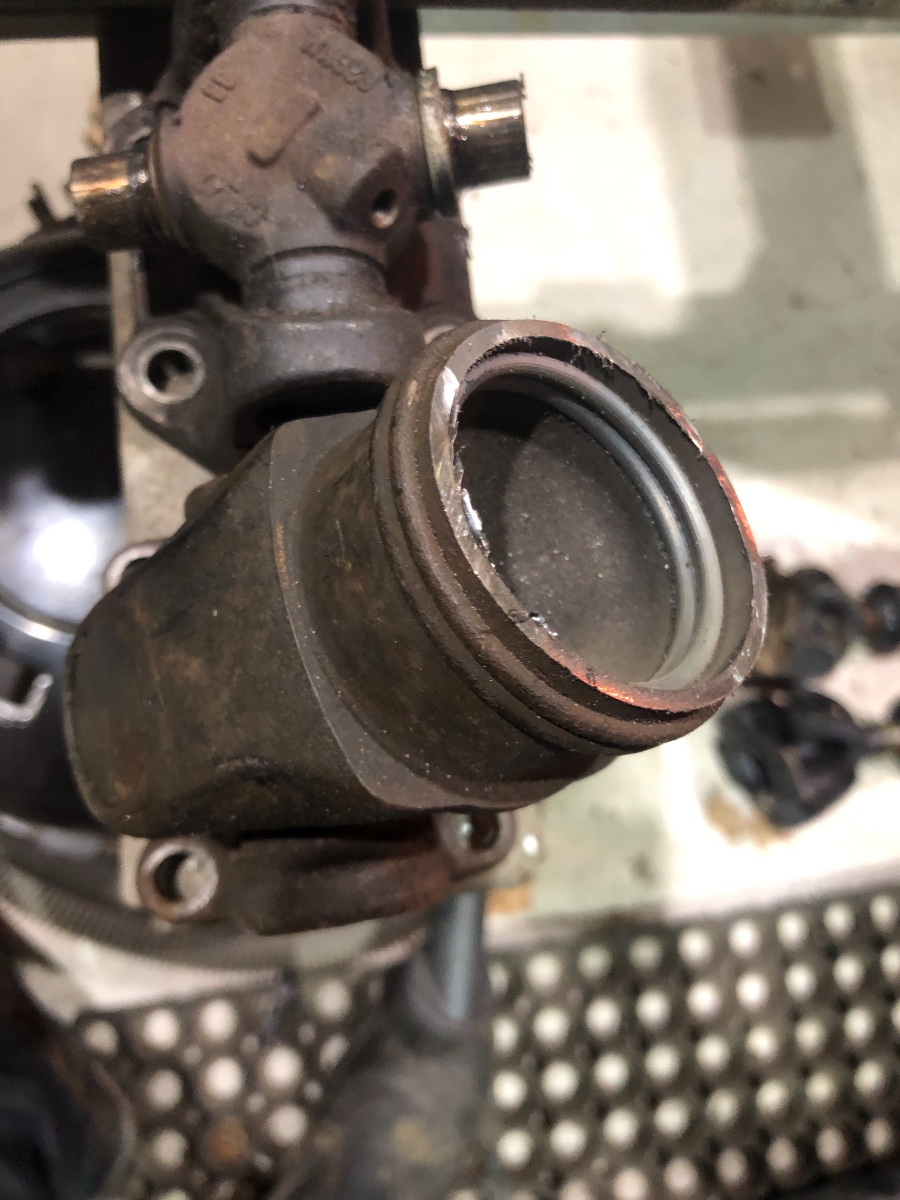

So Volvo are really odd as the steering arms are cranked to clear the portal boxes, so I have a track bar that been modded to have a land rover (yuk) track rod end fitted to go up to steering box. So I’ve used my spare hi steer kit to do that job.

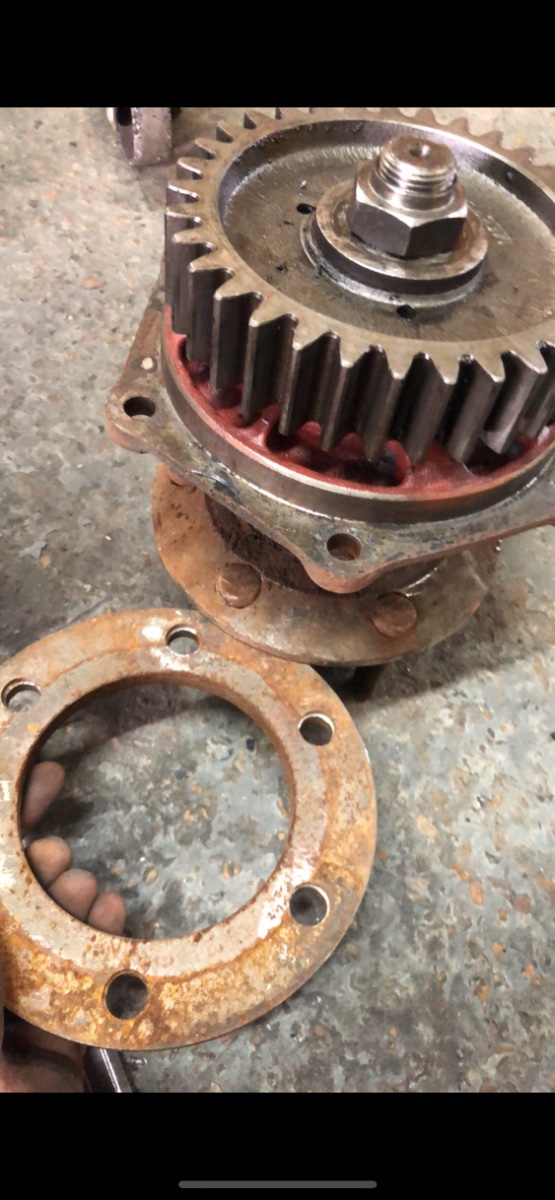

But, these axles where going on a truck to compete at the lagoda trophy in Russia, so everything was beefy, so they drilled the portal box tack rod hole out to m22 ! Probs for hydro, I don’t want that.

So there is a few issues

The props are cruiser to land rover wolf, il show pics of how that was done pretty slick my mate Kimi did them, he’s from Finland and builds insane trucks, top guy too loves herring :S

Mike
Attachments

User avatar
mike harris
SCUK is my life
SCUK is my life
Posts: 1827
Joined: Sat Jan 08, 2011 8:30 pm
Location: hascombe Surrey

Re: Mikes lwb build and repairs !

Post by mike harris » Sat Feb 11, 2023 2:19 pm

This is the rear prop

200 series landcruiser its massive.

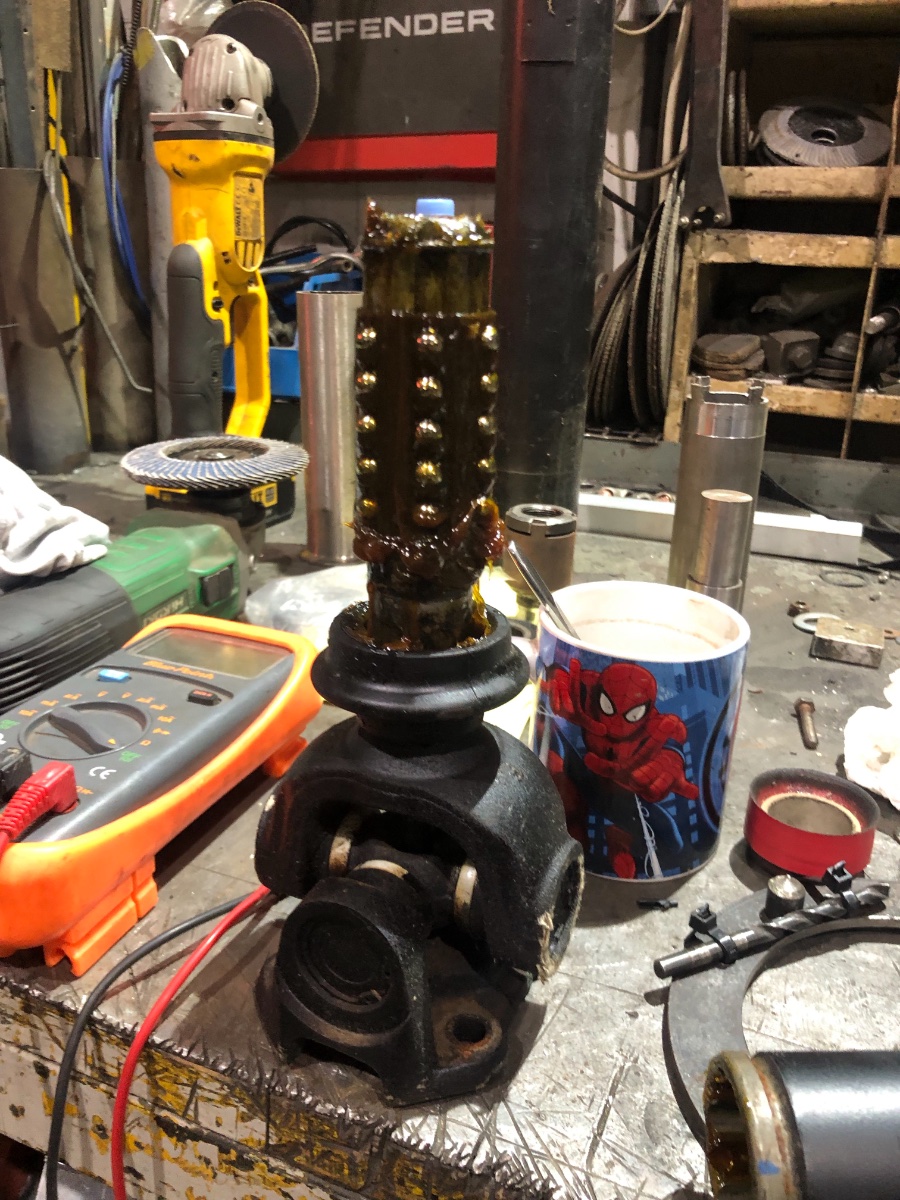

The diff end is land rover wolf defender, check out what the use for a slider, pretty cool probs doesn’t work lol so used Toyota for that bit.

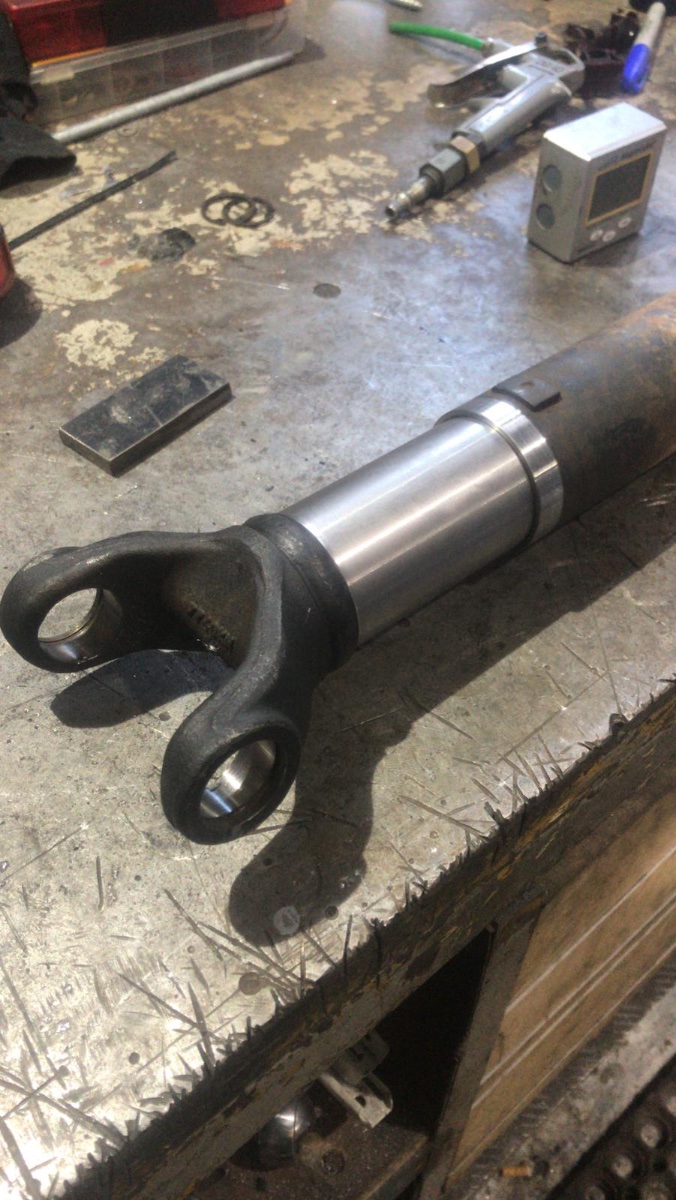

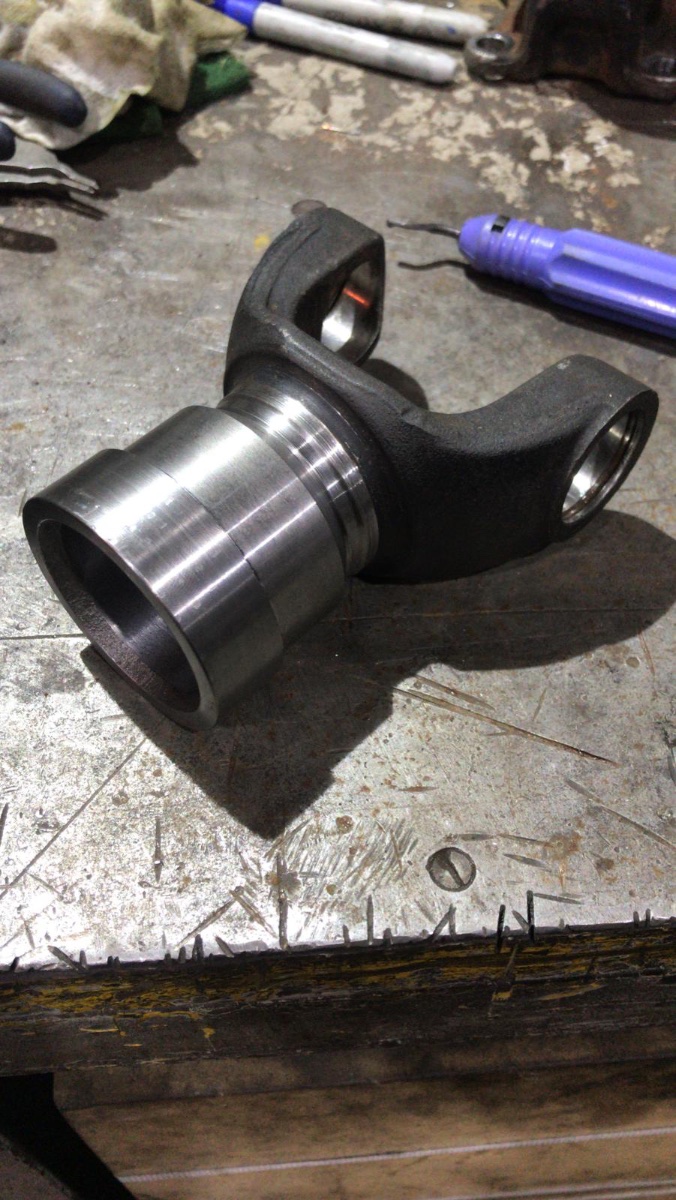

The adaptor was turned down from lorry gearbox flange

User avatar
mike harris
SCUK is my life
SCUK is my life
Posts: 1827
Joined: Sat Jan 08, 2011 8:30 pm
Location: hascombe Surrey

Re: Mikes lwb build and repairs !

Post by mike harris » Sat Feb 11, 2023 2:23 pm

The front prop has to be small to clear crossmember

So landcruiser 100 series, which was handy as I’m breaking one.

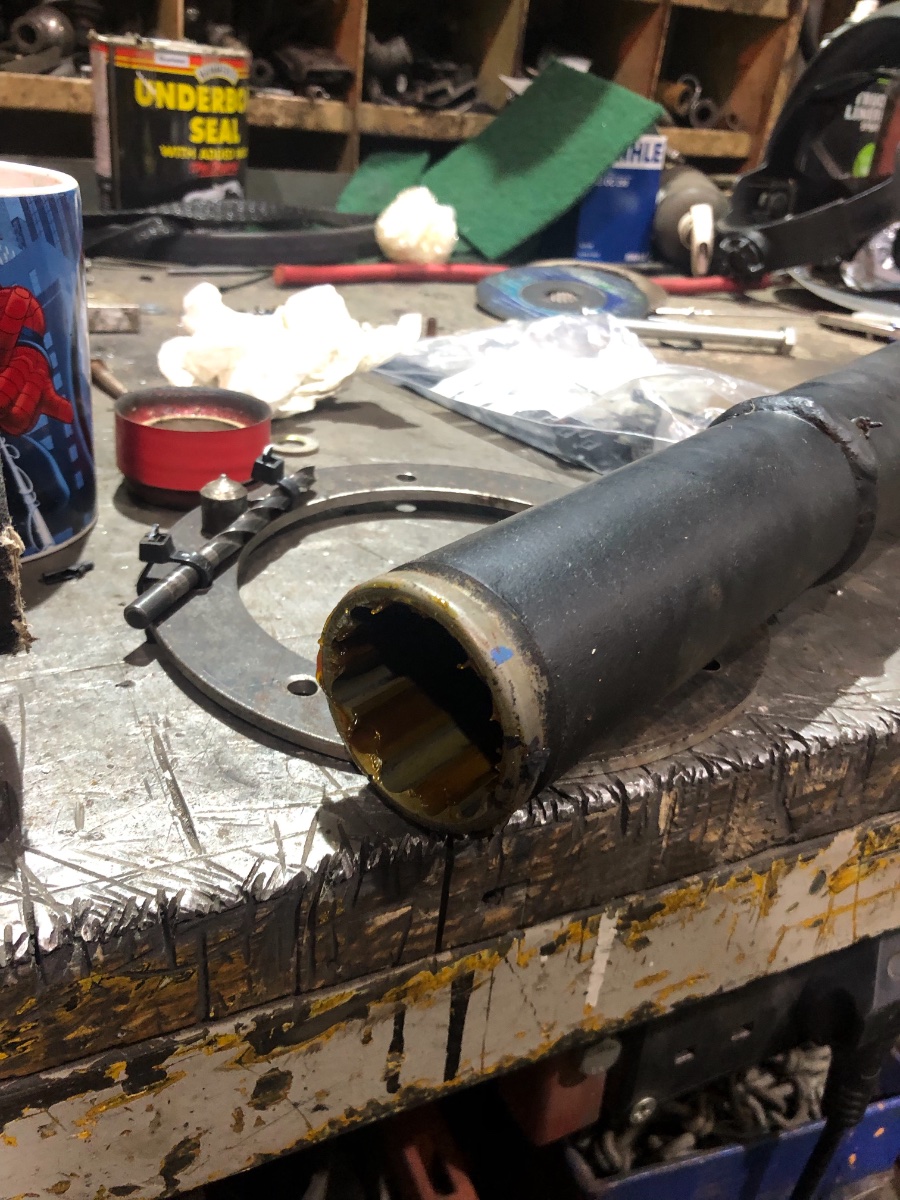

The land rover wide angle prop was turned down like 0.3mm to go inside the landcruiser prop.

stimpy
Engaged 4wd low
Engaged 4wd low
Posts: 102
Joined: Mon Nov 14, 2016 10:03 pm

Re: Mikes lwb build and repairs !

Post by stimpy » Fri Feb 24, 2023 12:43 pm

All looking impressive as usual man!

User avatar
mike harris
SCUK is my life
SCUK is my life
Posts: 1827
Joined: Sat Jan 08, 2011 8:30 pm
Location: hascombe Surrey

Re: Mikes lwb build and repairs !

Post by mike harris » Mon Mar 13, 2023 6:45 pm

Portal power !
Attachments

User avatar
d_r_1989
Winching along now
Winching along now
Posts: 523
Joined: Tue Jul 08, 2014 1:49 pm
Location: Halifax west Yorkshire

Re: Mikes lwb build and repairs !

Post by d_r_1989 » Mon Mar 13, 2023 8:33 pm

Looks good Mike. He makes stuff look so easy at times does James, that man certainly knows how to build a 4x4.
Your motor is Gunna be mental with portals and treps
