Re: 1987 sj410 xud engine, coil sprung and Toyota axles

Post by ScottieJ » Tue Jul 11, 2023 11:06 pm

Oh wow yeah that is close! I’m used to yotas being ran on 16s so guess I’ve never ran into that problem :lol:
Zuki Build

Steady as she goes!

User avatar
d_r_1989
Winching along now
Winching along now
Posts: 523
Joined: Tue Jul 08, 2014 1:49 pm
Location: Halifax west Yorkshire

Re: 1987 sj410 xud engine, coil sprung and Toyota axles

Post by d_r_1989 » Wed Jul 12, 2023 10:12 am

I did buy some 16s aswell in the hope they would clear it but they actually touch. Seems there's loads of different Toyota arms/knuckles that were fitted to different models. Bit of a nightmare to find out information on them and any for sale

User avatar
ScottieJ
The Boss
The Boss
Posts: 11609
Joined: Tue Apr 15, 2008 12:13 pm
Location: Chippenham, wiltshire

Re: 1987 sj410 xud engine, coil sprung and Toyota axles

Post by ScottieJ » Wed Jul 12, 2023 1:38 pm

Yeah that’s pretty interesting! I’ve got 6shooter knuckles and arms for the buggy build so hopefully I won’t have clearance issues.
Zuki Build

Steady as she goes!

User avatar
d_r_1989
Winching along now
Winching along now
Posts: 523
Joined: Tue Jul 08, 2014 1:49 pm
Location: Halifax west Yorkshire

Re: 1987 sj410 xud engine, coil sprung and Toyota axles

Post by d_r_1989 » Sat Aug 19, 2023 10:15 pm

What a busy :suzuki: day it's been for me.

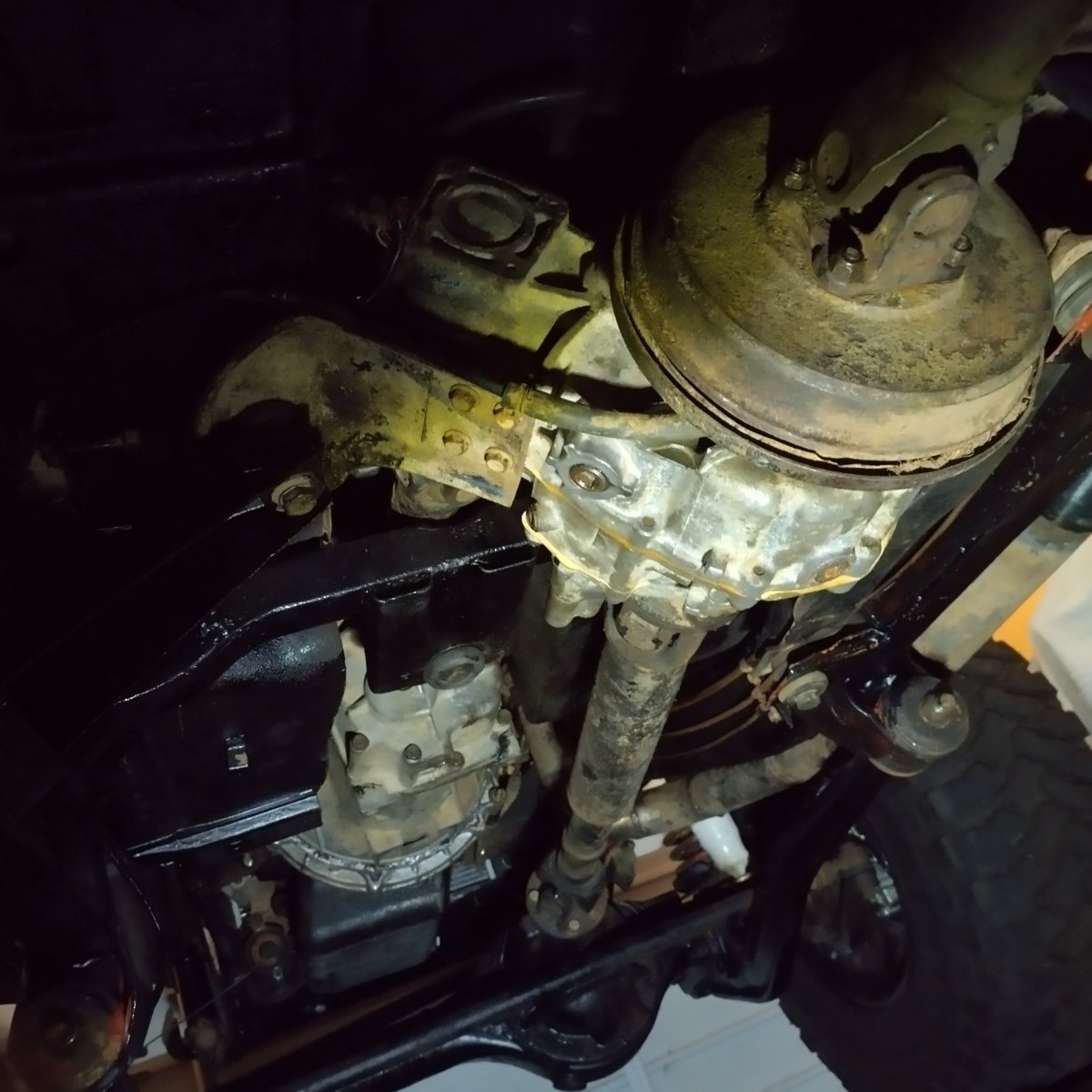

Finally got my gearbox and transfer box back. Dropped them off over a month ago to be rebuilt, after MOT the gearbox developed quite a bad leak and I had a rebuild kit for the transfer box so thought while I'm there might aswell have some fresh drivetrain.

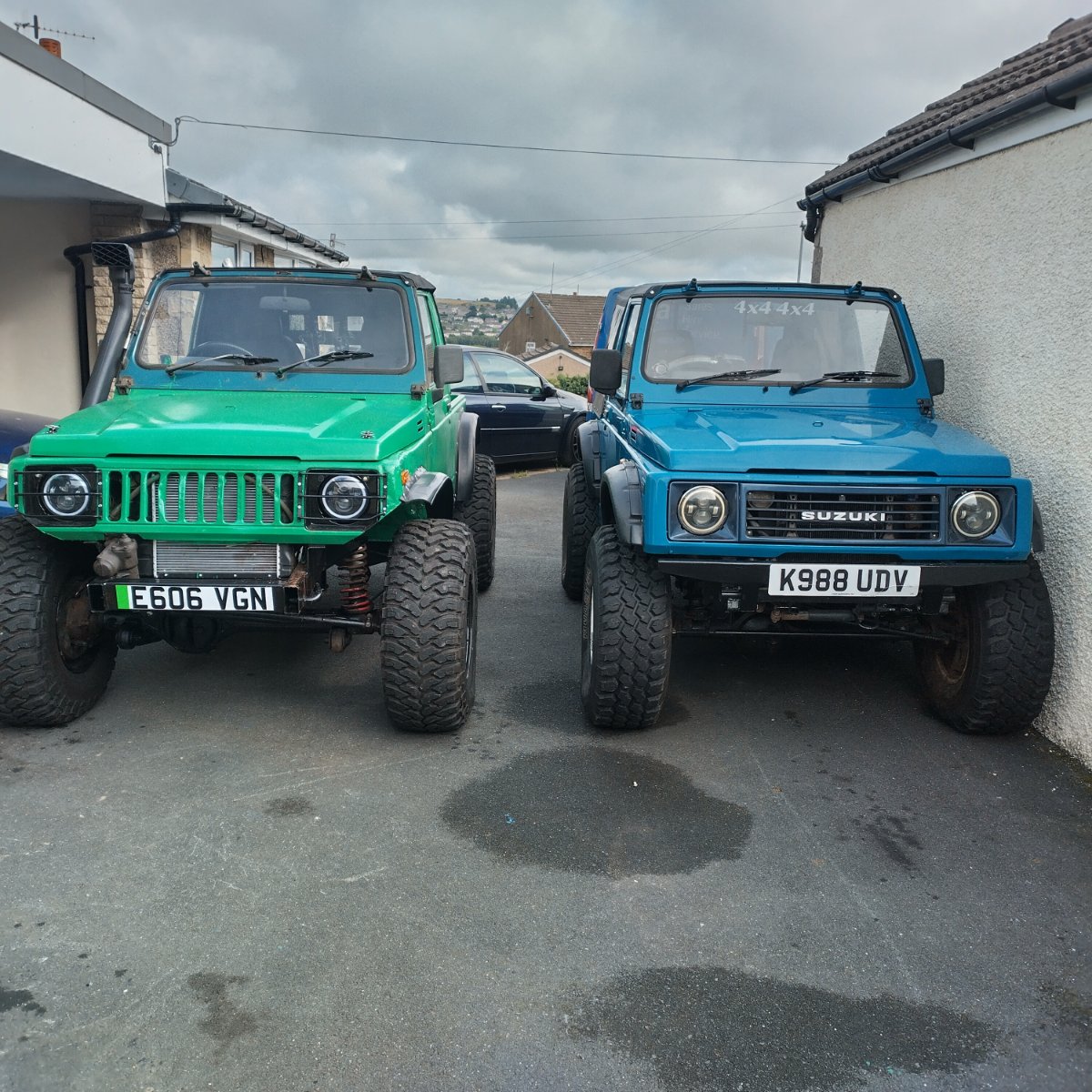

Both the blue sj and green SJ are moving under their own steam.
Now to get some mileage under the green one and make sure there's no more teething problems
Attachments

Rankine
Can I have a tow
Can I have a tow
Posts: 260
Joined: Sun Nov 23, 2014 1:38 pm
Location: Stirling, Scotland

Re: 1987 sj410 xud engine, coil sprung and Toyota axles

Post by Rankine » Sun Aug 20, 2023 2:21 pm

All getting treated very well by the sounds of it
SJ413 LWB Santana 33s, 94",

User avatar
d_r_1989
Winching along now
Winching along now
Posts: 523
Joined: Tue Jul 08, 2014 1:49 pm
Location: Halifax west Yorkshire

Re: 1987 sj410 xud engine, coil sprung and Toyota axles

Post by d_r_1989 » Mon Aug 21, 2023 12:29 pm

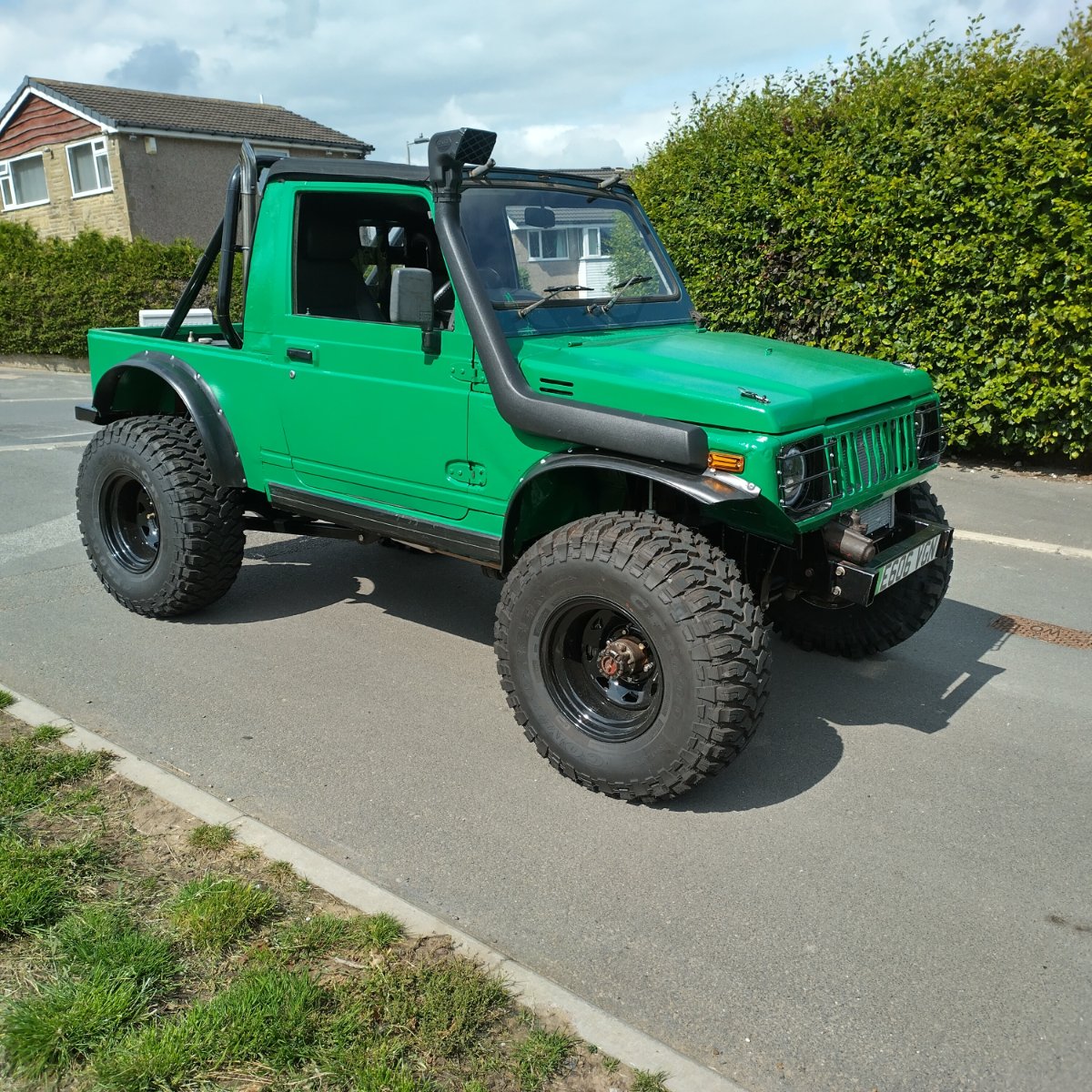

It's definitely worth it, had a drive yesterday and it drives so well now.

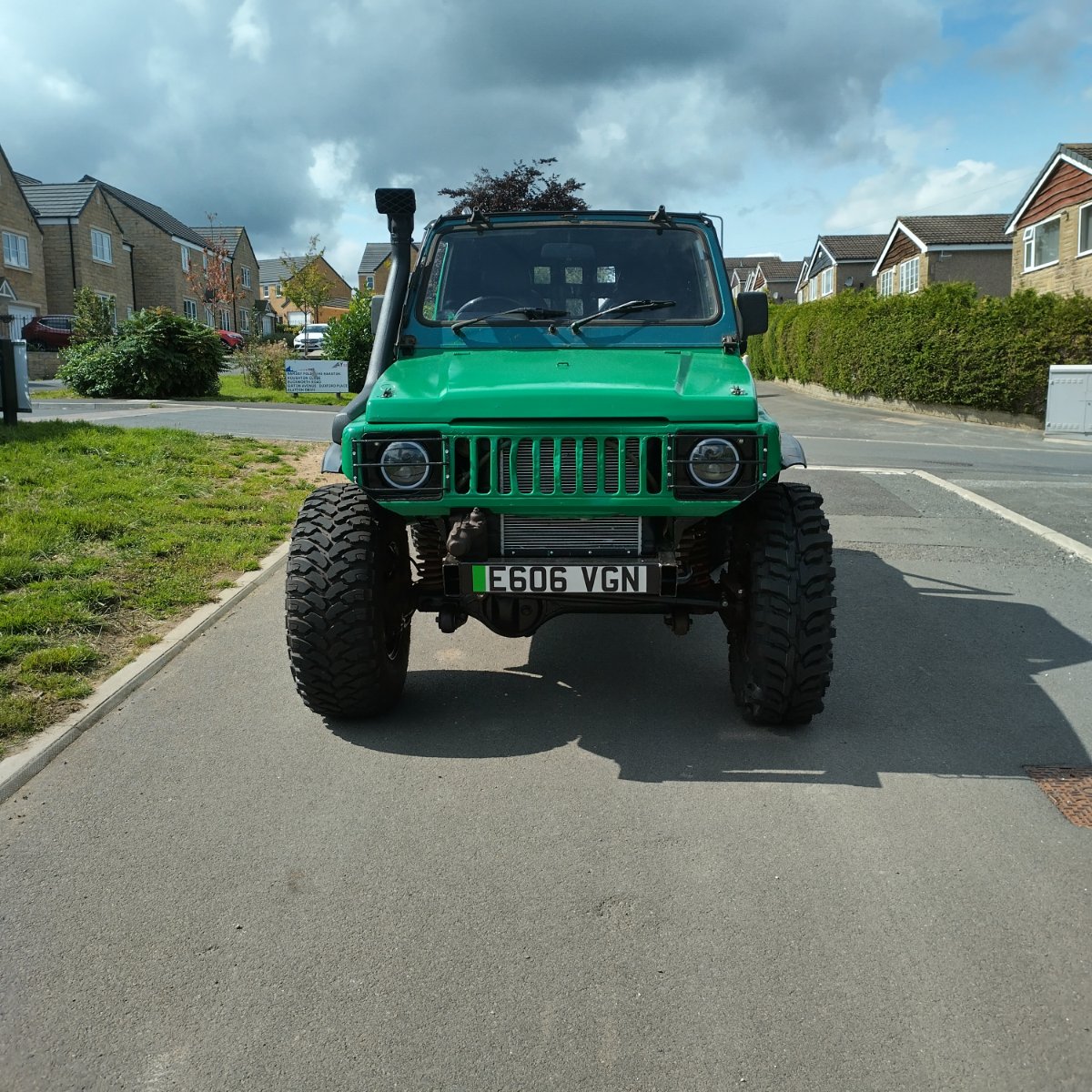

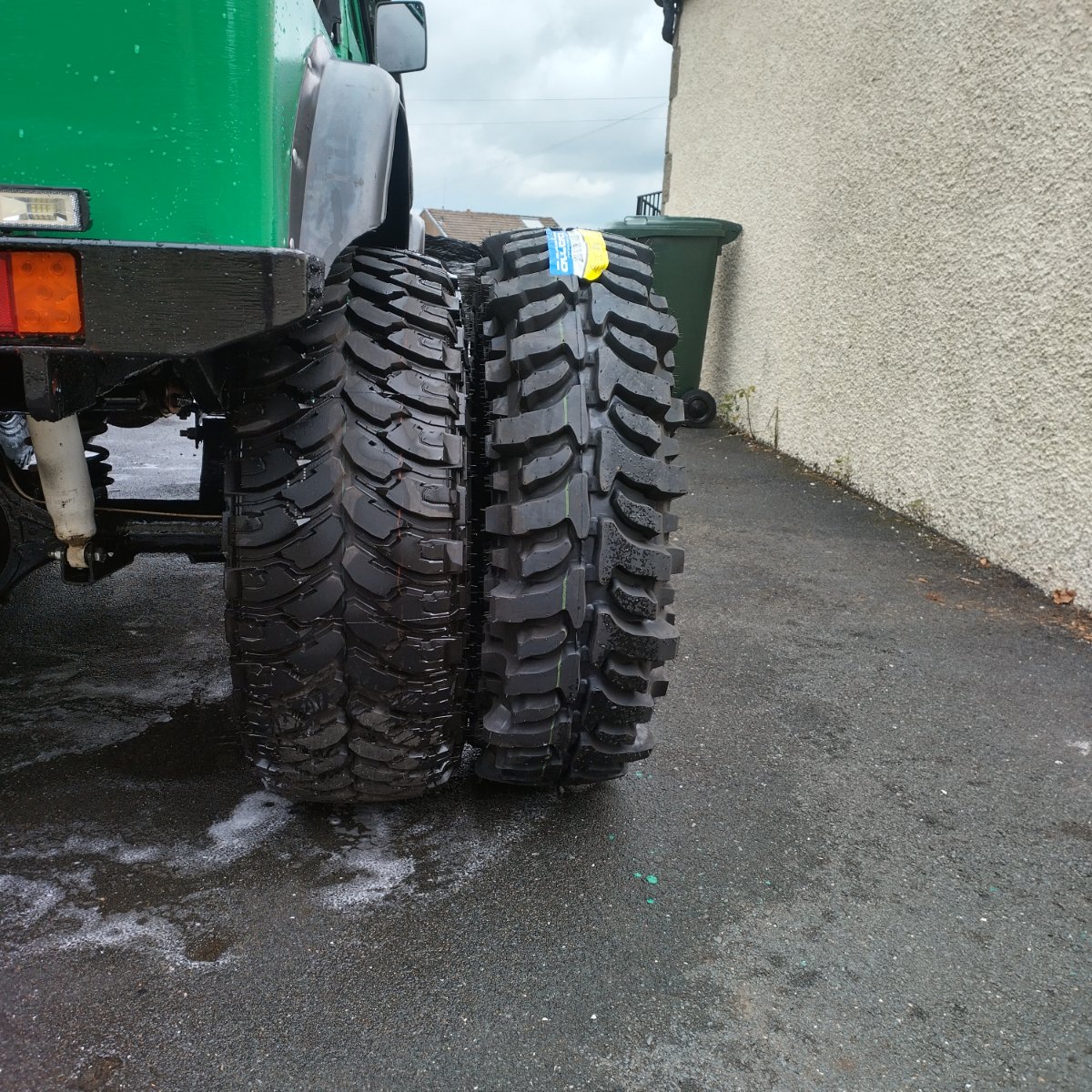

Even had a play about fitting the new tyres. The new tyres are actually an inch taller but it's hard to tell on that front pic because of the 12.5s on the drivers side :suzuki:
Attachments

User avatar
d_r_1989
Winching along now
Winching along now
Posts: 523
Joined: Tue Jul 08, 2014 1:49 pm
Location: Halifax west Yorkshire

Re: 1987 sj410 xud engine, coil sprung and Toyota axles

Post by d_r_1989 » Sat Aug 26, 2023 9:49 am

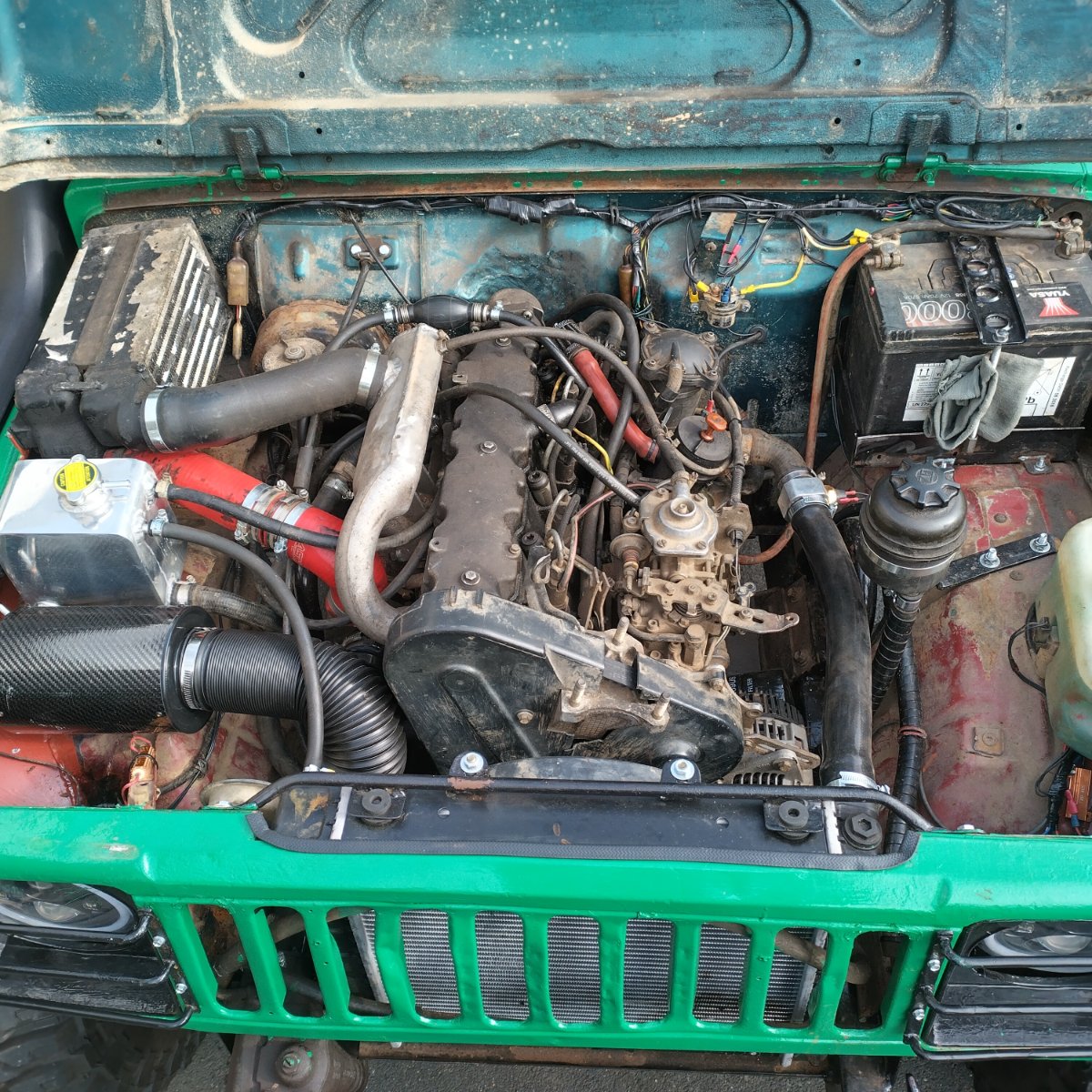

Replaced some water pipes for silicone and tried to tidy up the engine bay abit
Attachments

User avatar
d_r_1989
Winching along now
Winching along now
Posts: 523
Joined: Tue Jul 08, 2014 1:49 pm
Location: Halifax west Yorkshire

Re: 1987 sj410 xud engine, coil sprung and Toyota axles

Post by d_r_1989 » Sun Sep 10, 2023 8:39 pm

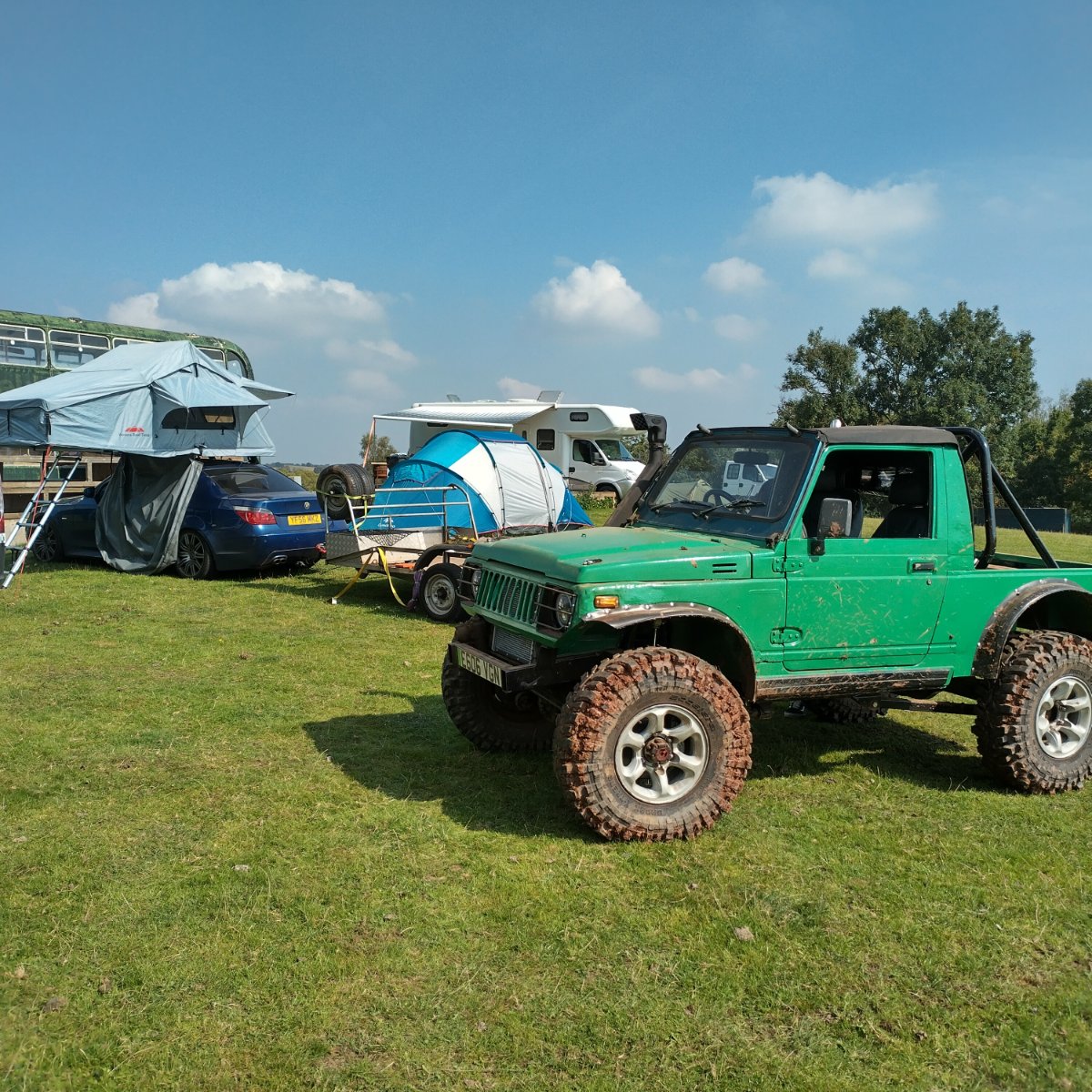

First proper bit of use, went to jeepfest and I can safely say wow what a motor. Performed faultlessly and showed up many more serious offroaders. Only real downside was I having far too much fun and didn't take any pictures! Weather was banging, the BM towed the SJ faultlessly and the roof tent was the best hotel in sight.

These badak Xtreme tyres are very very good, mud, clay, stone, grass gripped better than my mates treps. Fronts were aired down to 9 psi and rears 6 psi, no issues

Links to a couple of videos, as usual videos don't do it any justice how steep the bankings were.
https://youtu.be/ON9F69YvWp0?si=oI1OAYf6EHK-sVk8
https://youtube.com/shorts/oO_eeWA9Dbs? ... rtQk2fwjLv
https://youtube.com/shorts/XXcIxpLJRyE? ... I1RraTpcCj
Attachments

Rankine
Can I have a tow
Can I have a tow
Posts: 260
Joined: Sun Nov 23, 2014 1:38 pm
Location: Stirling, Scotland

Re: 1987 sj410 xud engine, coil sprung and Toyota axles

Post by Rankine » Mon Sep 11, 2023 7:39 am

Looks like a good day out
SJ413 LWB Santana 33s, 94",

User avatar
ScottieJ
The Boss
The Boss
Posts: 11609
Joined: Tue Apr 15, 2008 12:13 pm
Location: Chippenham, wiltshire

Re: 1987 sj410 xud engine, coil sprung and Toyota axles

Post by ScottieJ » Thu Sep 14, 2023 1:00 pm

Looks like it works really well and those tyres hook up nicely 👌
