Differentials: Setting up and servicing etc.

Post by ScottieJ » Thu Jul 07, 2011 12:02 pm

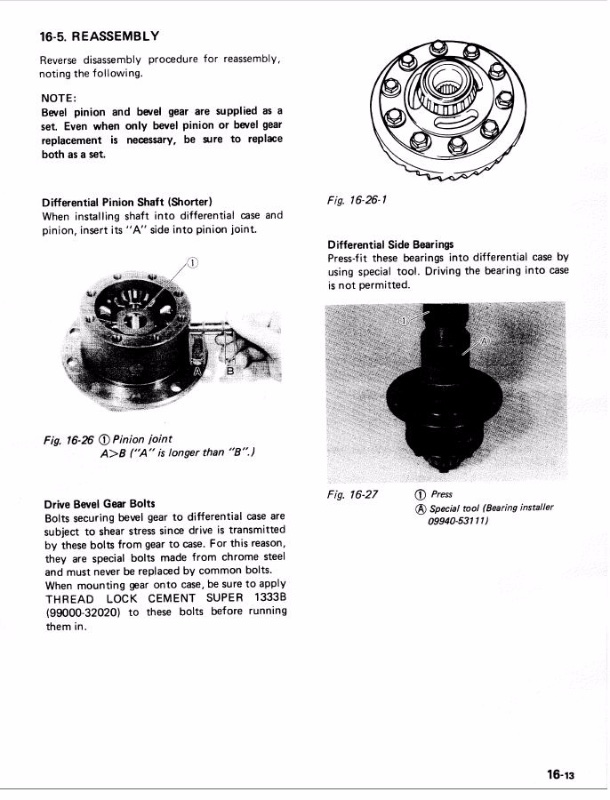

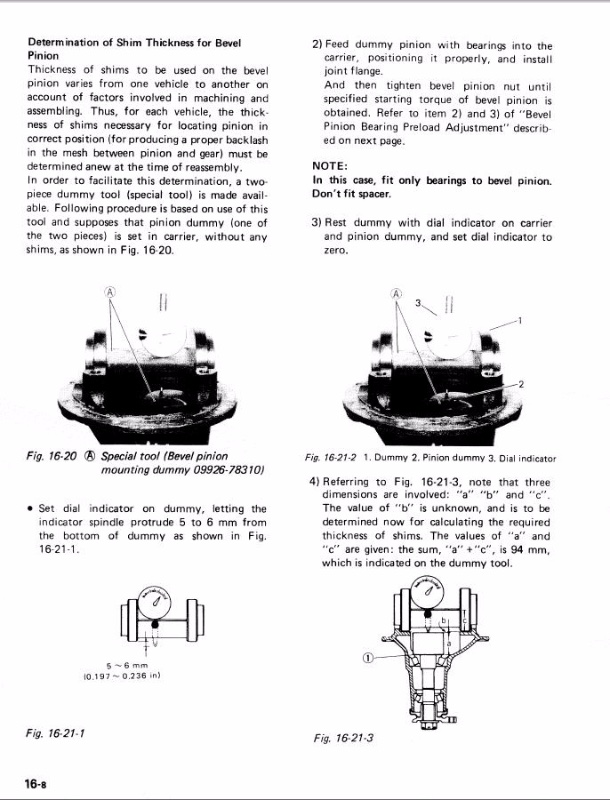

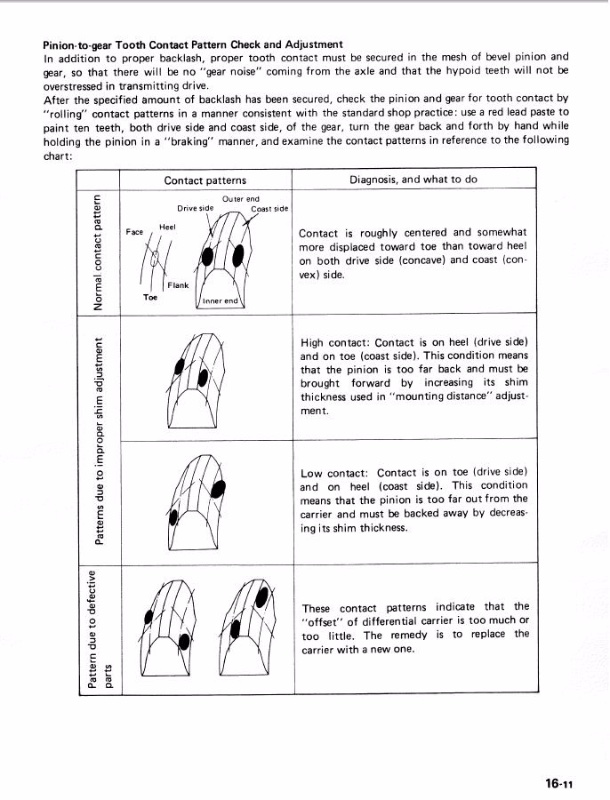

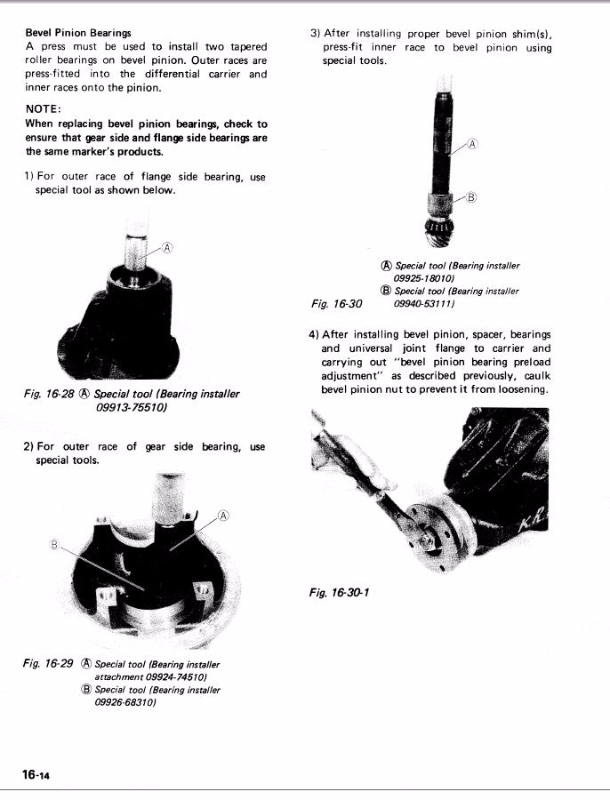

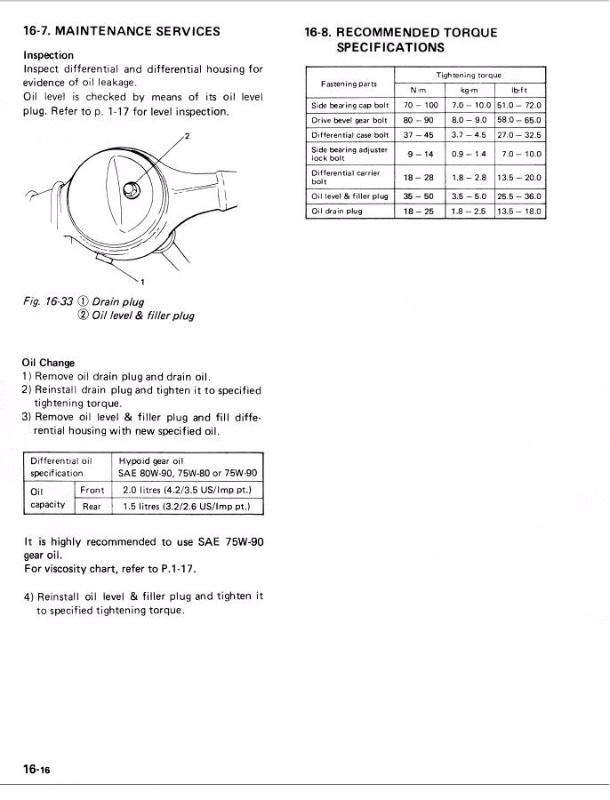

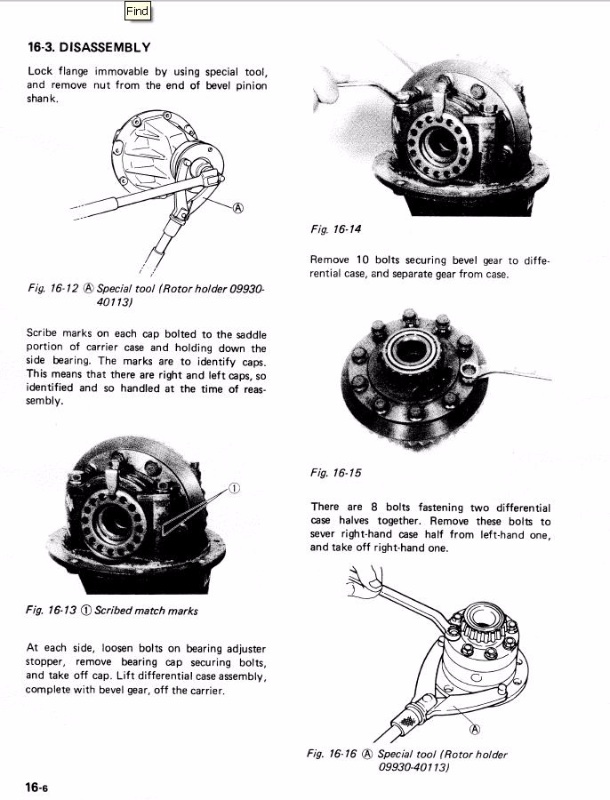

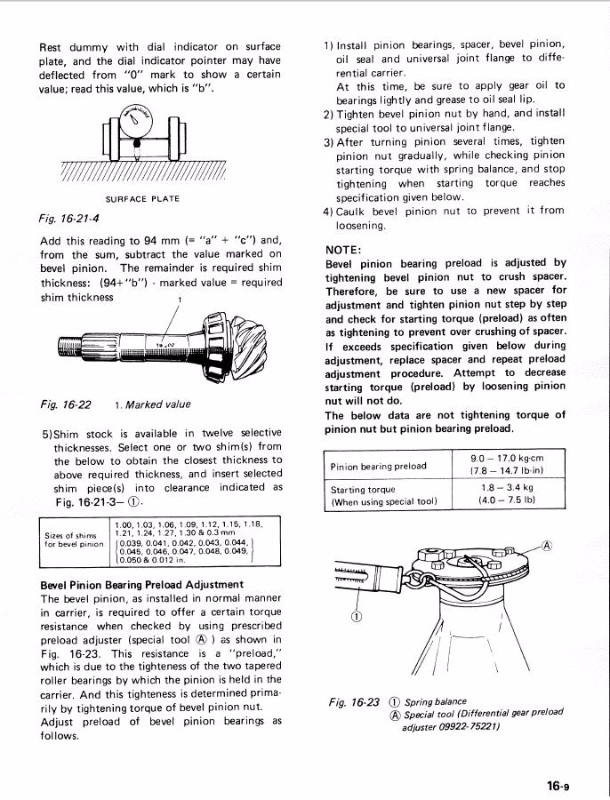

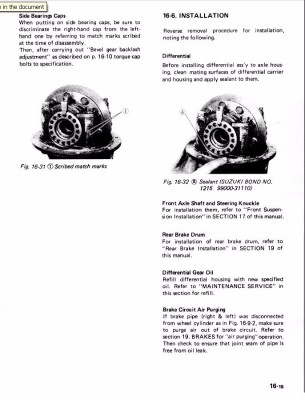

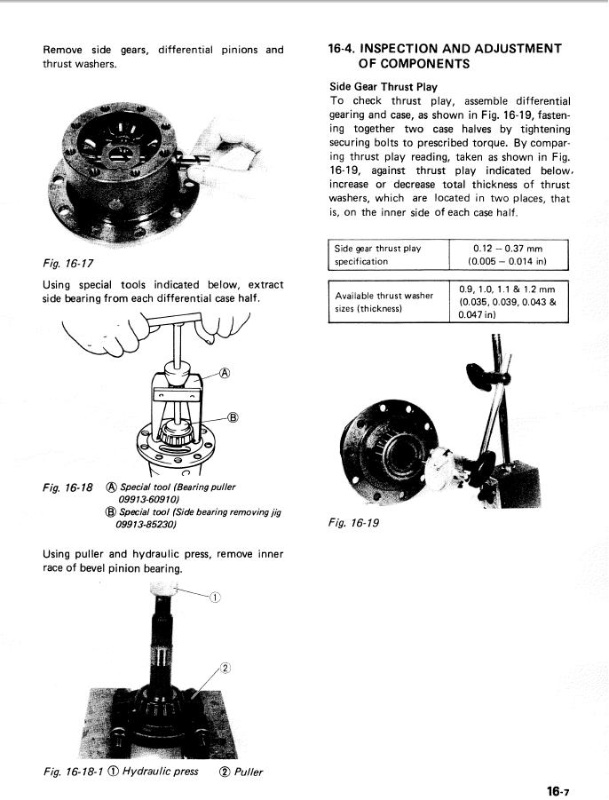

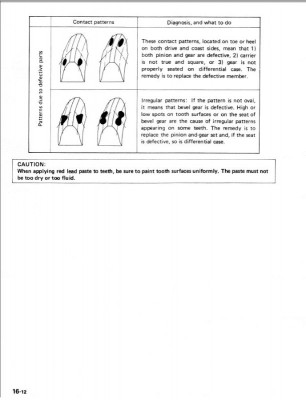

Ring Gear Bolts 10 - 10mm bolts
Ring Gear Diameter 6.90 Inches
Pinion Shaft Diameter/Splines 1.379"/26
Pinion Bearing Preload 7.8-14.7 in-lbs
Backlash .004-.006 in.
Ring Gear Torque 58-65 lbs-ft
Carrier Bearing Cap Torque 51-72 lbs-ft
Pinion Nut Torque Zero endplay (crush sleeve)
Zuki Build

Steady as she goes!

User avatar
twiss
SCUK Computer Wizard
SCUK Computer Wizard
Posts: 6110
Joined: Mon Nov 08, 2010 2:28 pm
Location: Birkirkara, Malta
Contact:

Re: Differentials: Setting up and servicing etc.

Post by twiss » Fri Jul 08, 2011 9:11 am

\he doesn't charge per hour, he charges per month lol
Twiss

'93 Suzuki Samurai Sport 1.6 16v SU. Virtual lift, spring under, 31s
'93 Maruti Gypsy MG410

"If brute force doesn't fix your problem, you aren't using enough of it."

User avatar
Darrell
Suzuki, will you marry me?
Suzuki, will you marry me?
Posts: 2984
Joined: Wed Feb 23, 2011 7:54 pm
Location: south oxfordshire
Contact:

Re: Differentials: Setting up and servicing etc.

Post by Darrell » Sun Jul 10, 2011 8:04 pm

Thanks for posting up all the info. That's enough to let me know don't bother trying to fix one :oops: .
Looks too difficult to me....
2005-GV 1600se, "Hell" What do I know!

Sjbrad410
Got muddy boots
Got muddy boots
Posts: 8
Joined: Mon Apr 16, 2012 12:47 am
Location: Birmingham, England

Re: Differentials: Setting up and servicing etc.

Post by Sjbrad410 » Mon Apr 16, 2012 12:21 pm

i could do with a rear diff so how much am i looking for a new or to rebuild the old one ?

cheers brad

User avatar
Cyprus Geoff
Can I have a tow
Can I have a tow
Posts: 251
Joined: Sun Apr 20, 2008 5:54 am
Location: Paphos, Cyprus

Re: Differentials: Setting up and servicing etc.

Post by Cyprus Geoff » Tue May 22, 2012 7:06 pm

My front one is a bit "clunky" - Scottie let me know if that is a bit too technical for you ;-)

User avatar
Newtomud
Can I have a tow
Can I have a tow
Posts: 478
Joined: Thu May 05, 2011 3:43 pm
Location: wolverhampton

Re: Differentials: Setting up and servicing etc.

Post by Newtomud » Wed May 23, 2012 10:58 pm

Cyprus Geoff wrote:My front one is a bit "clunky" - Scottie let me know if that is a bit too technical for you ;-)
:hahaha: :hahaha:

User avatar
Cyprus Geoff
Can I have a tow
Can I have a tow
Posts: 251
Joined: Sun Apr 20, 2008 5:54 am
Location: Paphos, Cyprus

Re: Differentials: Setting up and servicing etc.

Post by Cyprus Geoff » Tue Jul 17, 2012 1:40 pm

OK time to be serious.... having been frightened by all the above info (thanks Scottie) do you absolutely need all those special tools (which I don't have) or is there a redneck way of doing this? I really need to sort the backlash in my front diff :-(

User avatar
ScottieJ
The Boss
The Boss
Posts: 11175
Joined: Tue Apr 15, 2008 12:13 pm
Location: Chippenham, wiltshire

Re: Differentials: Setting up and servicing etc.

Post by ScottieJ » Tue Jul 17, 2012 1:59 pm

All you really need is a dial indicator and the spring scale, if you are rebuilding your existing diff then you shouldn't need to worry about setting the pinion depth etc as long as you rebuild it the same as it comes apart.
Zuki Build

Steady as she goes!

User avatar
Cyprus Geoff
Can I have a tow
Can I have a tow
Posts: 251
Joined: Sun Apr 20, 2008 5:54 am
Location: Paphos, Cyprus

Re: Differentials: Setting up and servicing etc.

Post by Cyprus Geoff » Tue Jul 17, 2012 2:15 pm

Thanks Scottie, that sounds Double Dutch right now but I am sure it will make sense once I have done my homework.

I will probably tackle that when I change my suspension ;)

User avatar
kibris
Engaged 4wd low
Engaged 4wd low
Posts: 108
Joined: Wed Jul 18, 2012 9:06 am
Location: Alsancak, Girne, Cyprus

Re: Differentials: Setting up and servicing etc.

Post by kibris » Wed Jul 18, 2012 9:55 am

Cyprus Geoff wrote:Thanks Scottie, that sounds Double Dutch right now but I am sure it will make sense once I have done my homework.

I will probably tackle that when I change my suspension ;)
Hi Geoff, I have just done my mini spool, its not as daunting as you think when you get in there mate :)
