Re: 1991 Santana Samurai

Post by tomcat » Thu Jun 13, 2024 11:54 am

After a break due to my wife's ill health, awaiting inlet manifold back from Rockwatt. Things have slowed down somewhat.

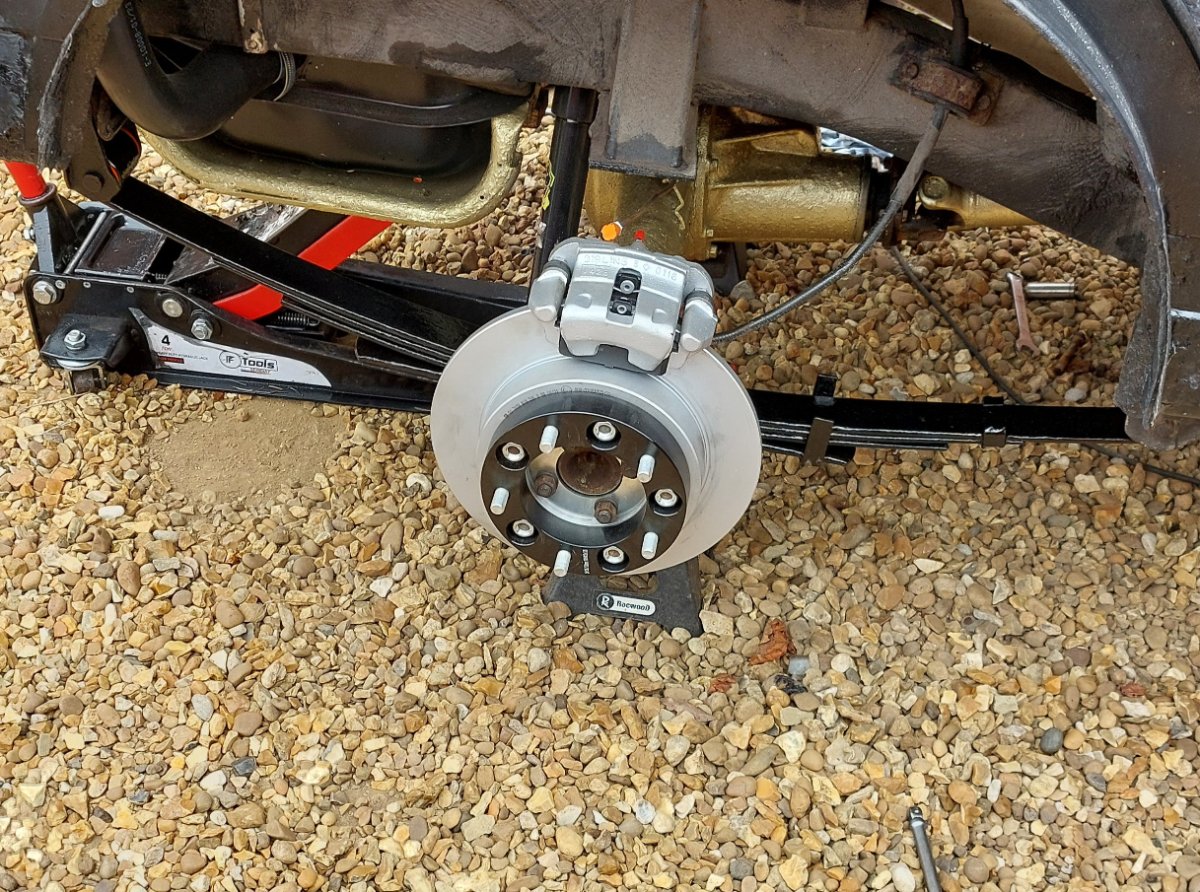

However refurbished springs going on today plus other bits and pieces.
First spring in.

User avatar
tomcat
Engaged 4wd low
Engaged 4wd low
Posts: 210
Joined: Wed May 04, 2022 6:59 pm

Re: 1991 Santana Samurai

Post by tomcat » Thu Jun 13, 2024 12:05 pm

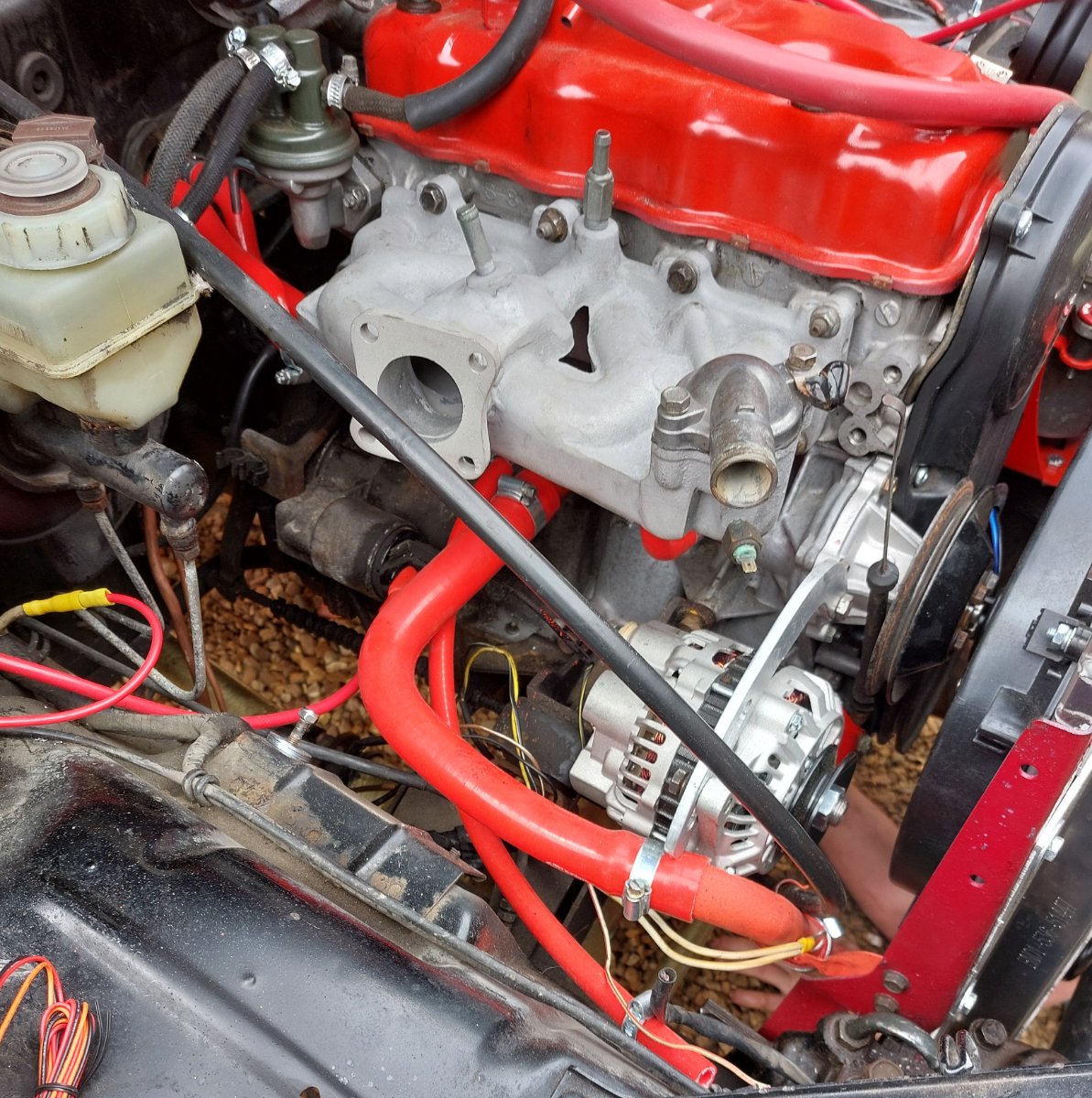

Inlet manifold back in. Alternator with modified bracket and made-up arm fitted.

Rankine
Can I have a tow
Can I have a tow
Posts: 269
Joined: Sun Nov 23, 2014 1:38 pm
Location: Stirling, Scotland

Re: 1991 Santana Samurai

Post by Rankine » Sat Jun 15, 2024 10:09 pm

Looking good. How is the angle for the carb now?
SJ413 LWB Santana 33s, 94",

User avatar
tomcat
Engaged 4wd low
Engaged 4wd low
Posts: 210
Joined: Wed May 04, 2022 6:59 pm

Re: 1991 Santana Samurai

Post by tomcat » Wed Jul 10, 2024 12:17 pm

Rankine wrote:
Sat Jun 15, 2024 10:09 pm
Looking good. How is the angle for the carb now?

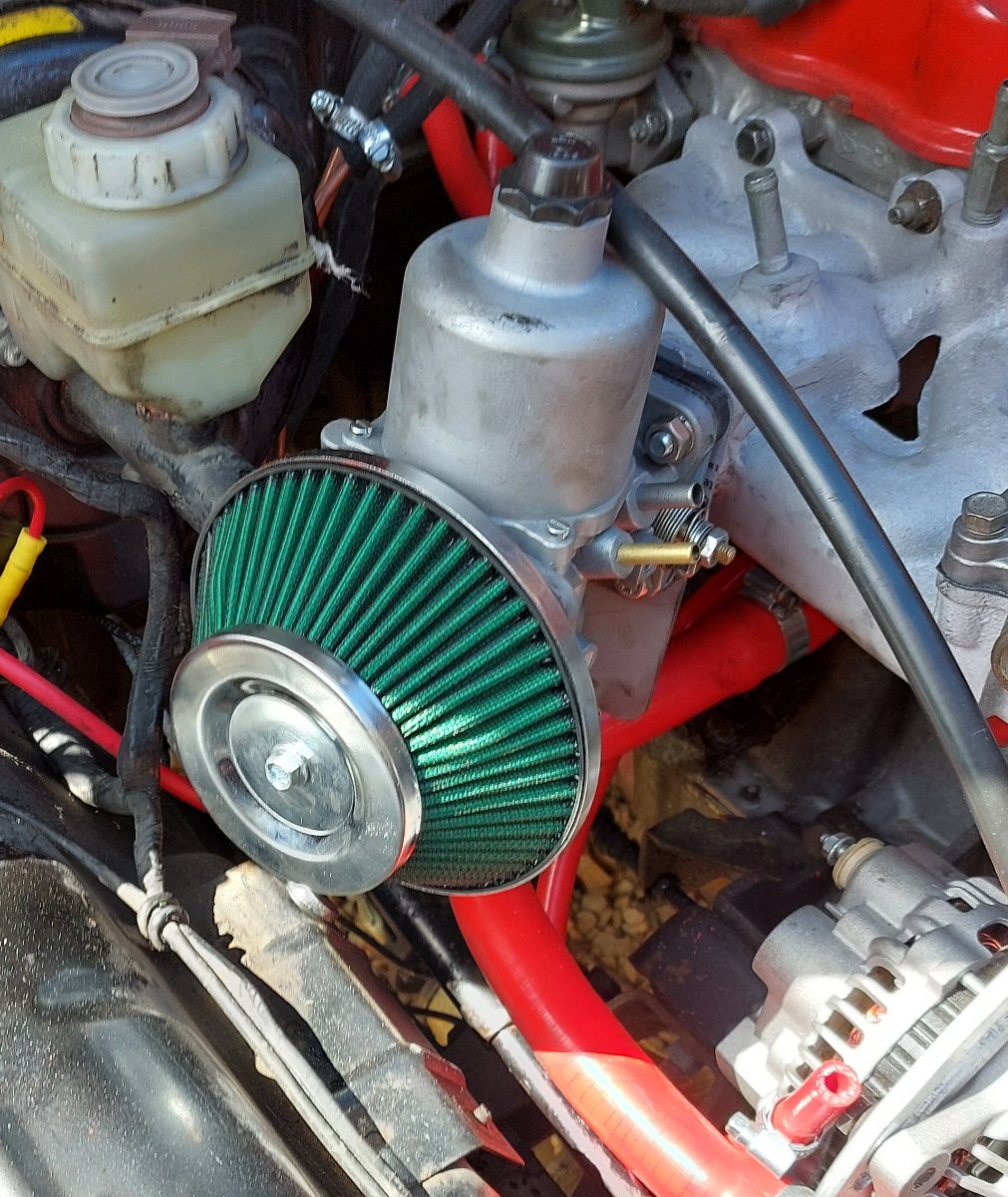

It fits OK. Not a lot of clearance but it fits. :thumbup:

User avatar
tomcat
Engaged 4wd low
Engaged 4wd low
Posts: 210
Joined: Wed May 04, 2022 6:59 pm

Re: 1991 Santana Samurai

Post by tomcat » Wed Jul 10, 2024 11:04 pm

Picture.

User avatar
tomcat
Engaged 4wd low
Engaged 4wd low
Posts: 210
Joined: Wed May 04, 2022 6:59 pm

Re: 1991 Santana Samurai

Post by tomcat » Fri Aug 30, 2024 2:56 pm

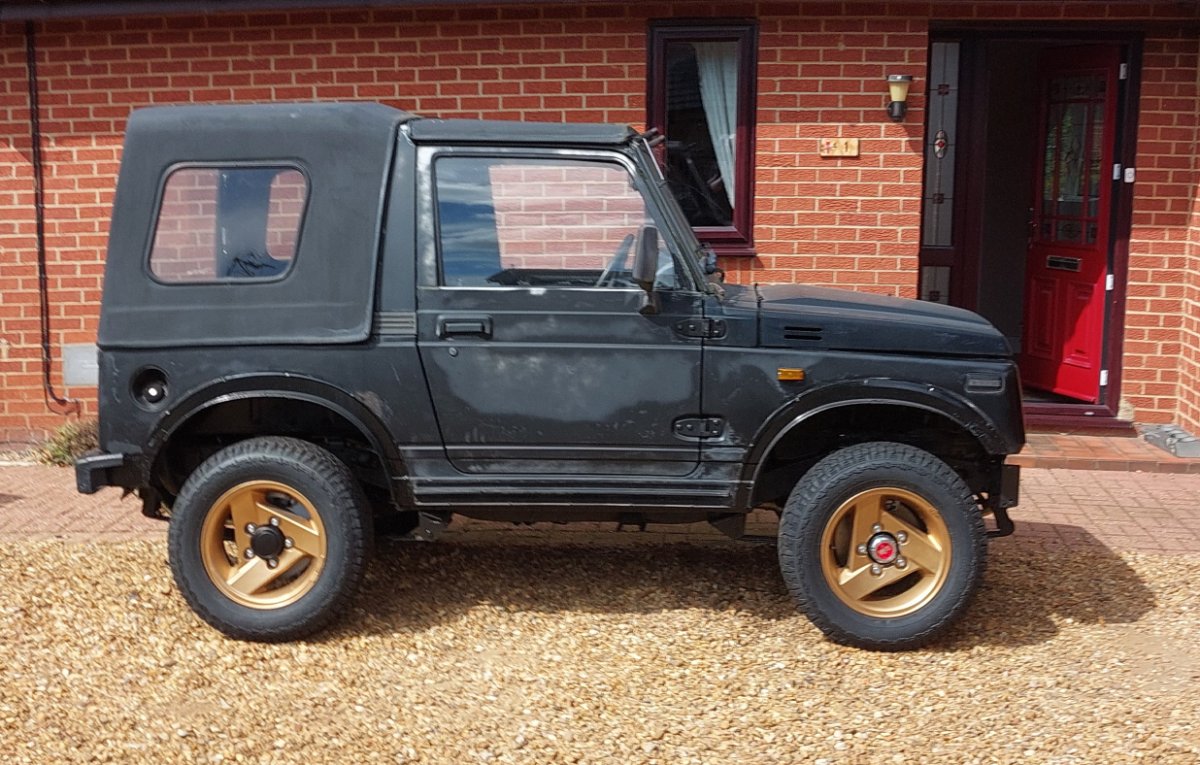

"Sammy" back on it's wheels again but lots more to do yet.

User avatar
tomcat
Engaged 4wd low
Engaged 4wd low
Posts: 210
Joined: Wed May 04, 2022 6:59 pm

Re: 1991 Santana Samurai

Post by tomcat » Sat Aug 31, 2024 11:53 am

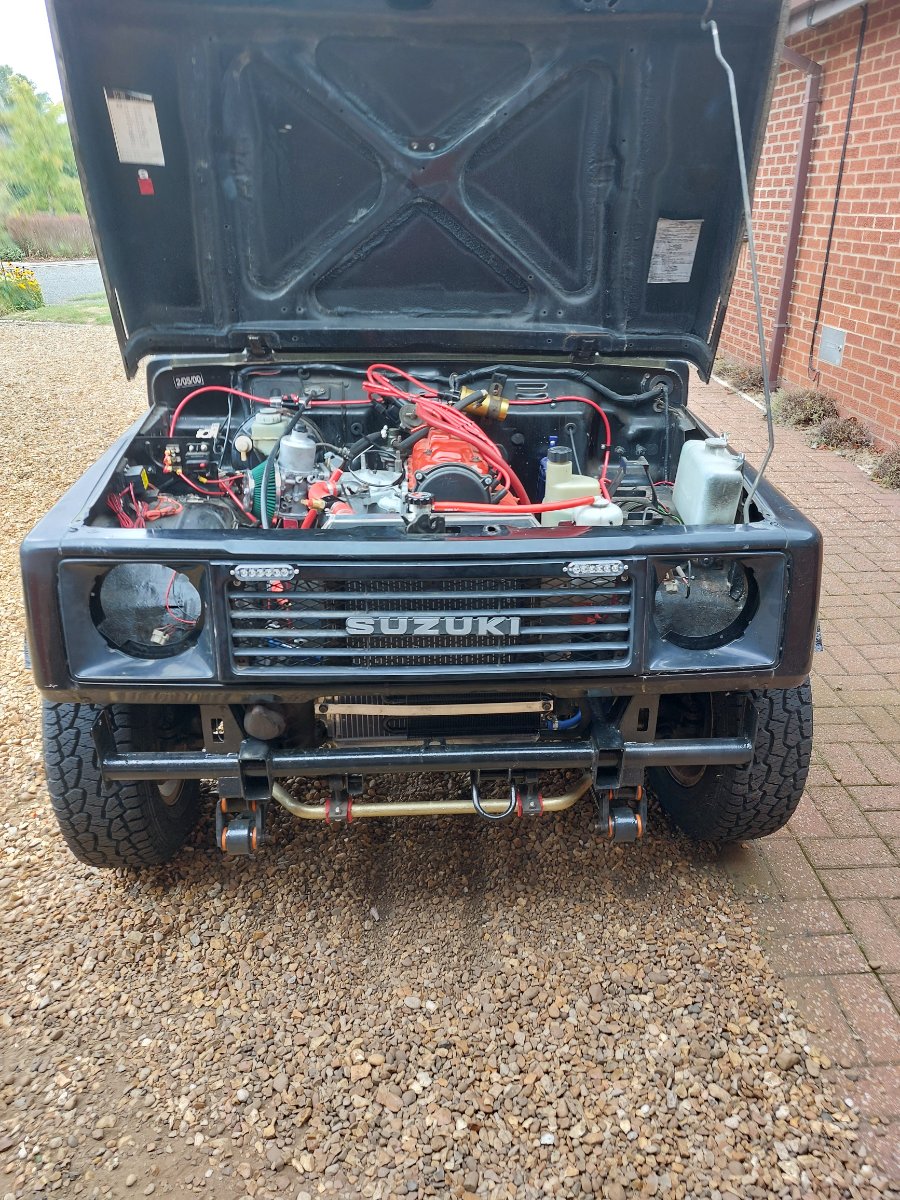

Front view. Grille with DRL's [daytime running lights] added. Front bumper to be added

Rankine
Can I have a tow
Can I have a tow
Posts: 269
Joined: Sun Nov 23, 2014 1:38 pm
Location: Stirling, Scotland

Re: 1991 Santana Samurai

Post by Rankine » Sun Sep 01, 2024 12:14 pm

It's all coming together man
SJ413 LWB Santana 33s, 94",

User avatar
tomcat
Engaged 4wd low
Engaged 4wd low
Posts: 210
Joined: Wed May 04, 2022 6:59 pm

Re: 1991 Santana Samurai

Post by tomcat » Fri Sep 13, 2024 11:56 am

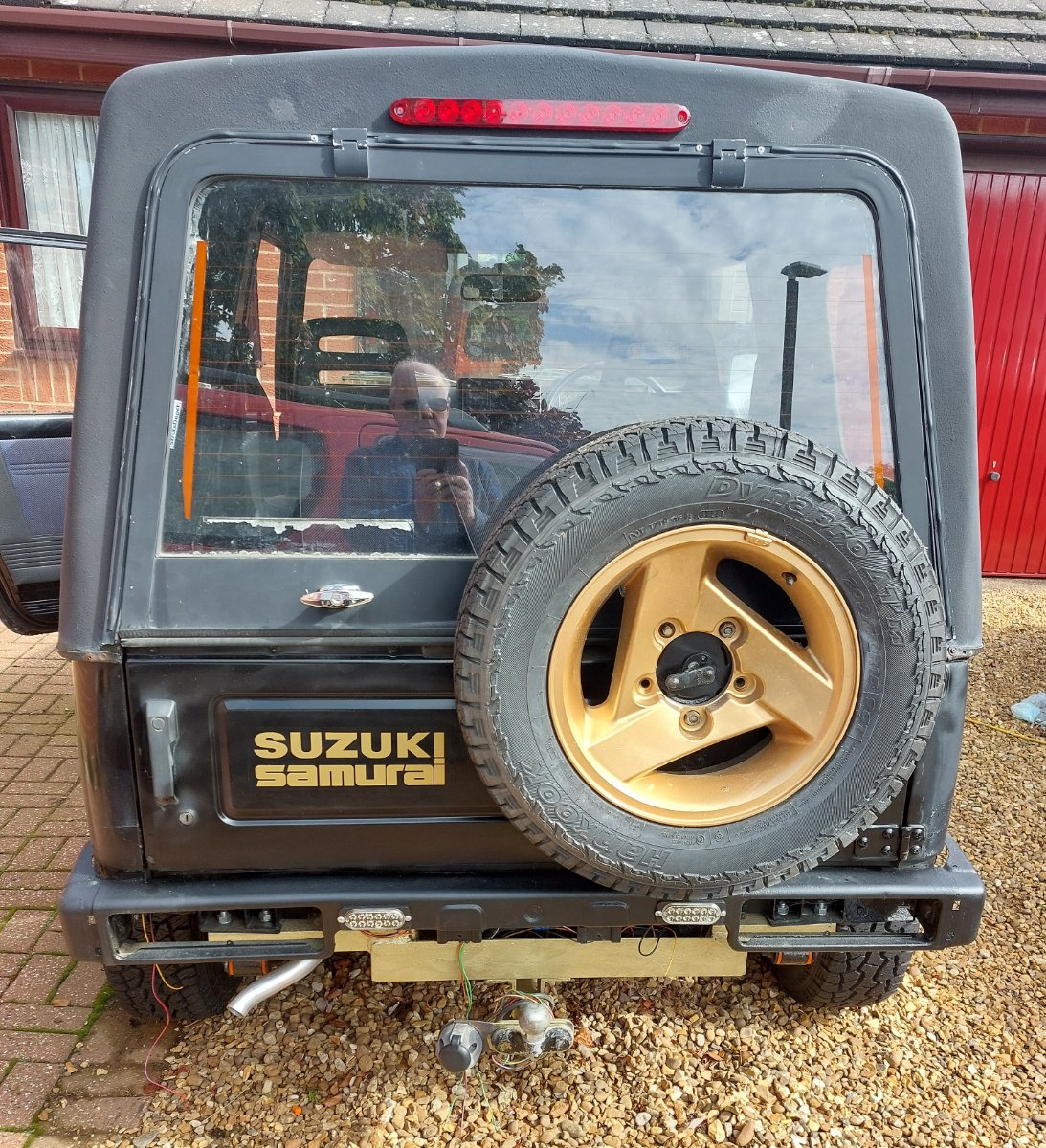

Had a "special" sticker made up for the rear door.
Turned out quite well I think?

User avatar
tomcat
Engaged 4wd low
Engaged 4wd low
Posts: 210
Joined: Wed May 04, 2022 6:59 pm

Re: 1991 Santana Samurai

Post by tomcat » Thu Oct 03, 2024 1:21 pm

Bits of work have continued since last post.
Dashboard panels made up to incorporate switches and instruments. Ashtray removed.
Problem with bonnet shutting due to hinge movement.
Window regulators received attention

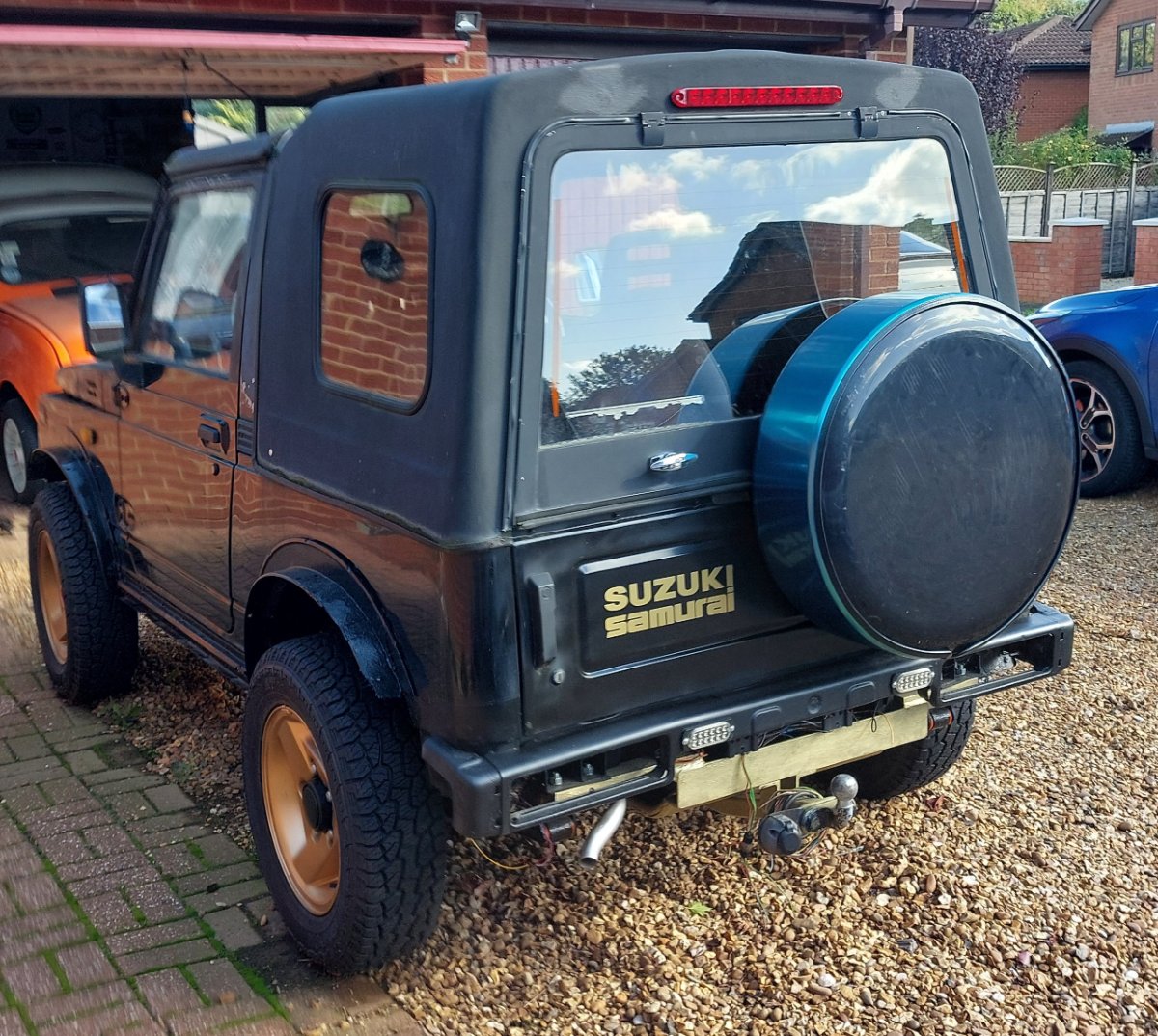

Rear wheel cover fitted.
