Brake pipe circuit

Post by Darrell » Sat Feb 23, 2013 9:34 pm

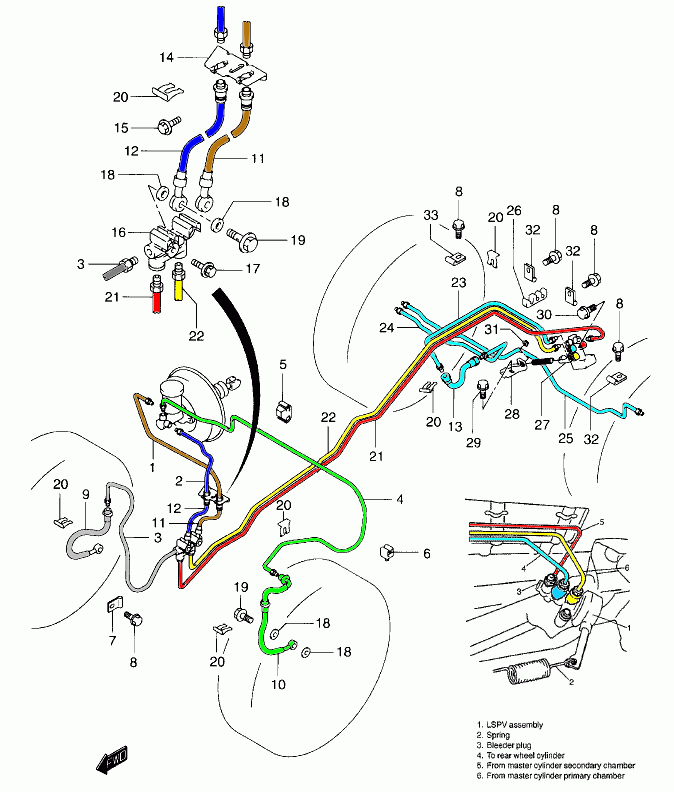

Brake pipe circuit for a Non ABS - Load sensor valve type
jimny brake pipes.gif
jimny brake pipes.gif (35.66 KiB) Viewed 4723 times
Colours for clarity only :thumbup:
