ignition system

[fozzyx123]

Hi guys, i rather foolishly and without thinking decided to rip out the whole contents on my dashboard..i didnt have an ignition barrel but had an ignition button/switch.... problem is.. i ripped everything out without looking.....now i have bare wires everywhere.....i have got as far as the ignition live coming on but cant get the starter motor to turn over...dors someone have a colour code/wiring guide and what ehy connects to what please?

[Darrell]

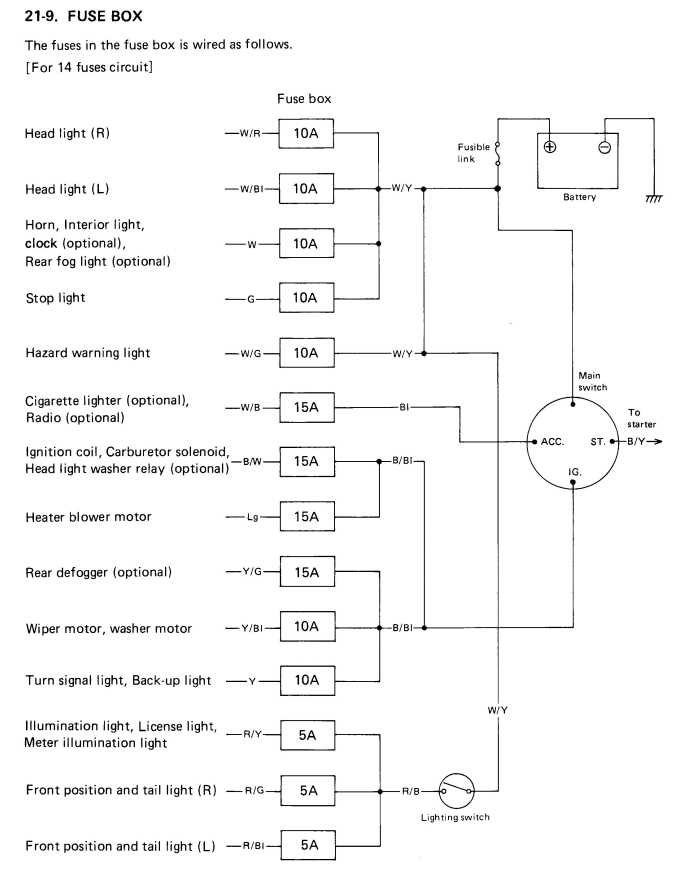

Here's a start (well if it's a 413!)

[fozzyx123]

thanks bud

[Darrell]

Full diagram here http://forum.suzukiclubuk.co.uk/vi ... =11&t=2097

[fozzyx123]

hmmm....seem to have lost all electrics now, cant even get the igntion click....is thier other fuses located elsewhere i might have blown?

[Darrell]

Have you checked the fuselink from the battery ??

[fozzyx123]

couldn't see another fuse anywhere m8, where do i have to have wires toget it to fire...i.e......1 earth, 1 live 1 starter motor live?..or is it more compliacated than that?
