Suzuki sj rear stud spline ????

[dazerede]

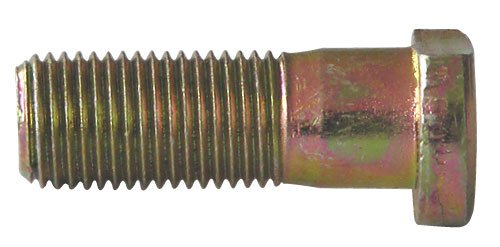

Need to know what the spline is on the Rear wheel studs please ???

[Jordi]

Wheel nut size?

[ScottieJ]

Is this for the guy askng for longer studs on Facebook.

Just use front studs, they are longer.

[dazerede]

Yes Scottie you are right he is my cousin

[dazerede]

What to know what the spline is on the stud I know it's m12x1.25 thread

[Jordi]

I don't think they are strictly splined, as a half shaft is, its just to allow enough grip / interference fit to allow the studs to be tightened.

I would imagine any stud of the correct length / diameter and pitch would do the job fine.

[Darrell]

Don't think the rear ones are spline

[Anton]

I'm sort of remembering my SJ413 rear axle having splined studs. I think. Front ones came out with the smack of a hammer and we were away.

The hole you smack them into isn't splined, the splines are to make a better interference fit is all.

[Darrell]

Further investigation and Suzuki use either on the back. Typical

[twiss]

Mine definitely has the "splined" studs... I remember bashing them out accidentally changing a wheel bearing
