Wiring diagram

[ARCDEB]

Hi peeps can anybody help me? does anybody have a early 1982 sj410 wiring diagram must be the type with external voltage regulator, its got to be the one with 3 wire square plug on the alternator. There are plenty later ones with the built in regulators in the alternator but i can seen to find a early one, even the Haynes workshop manual does not cover they early type. Thanks in advance

[ScottieJ]

The lj80 wiring diagram might work for what you need, they share the same alt and external voltage regulator.

https://haroldb.home.xs4all.nl/Folders/ ... Market.pdf

You could always convert it to run the newer alternator with an internal regulator.

[ARCDEB]

Thanks Scottie that's great, i don't suppose you know to convert to the new type with internal regulator ?

[ScottieJ]

You’ll just need to wire up the thick white wire to the + stud as usual.

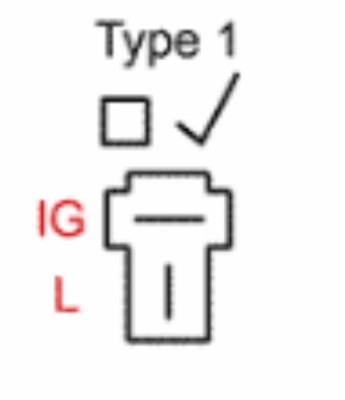

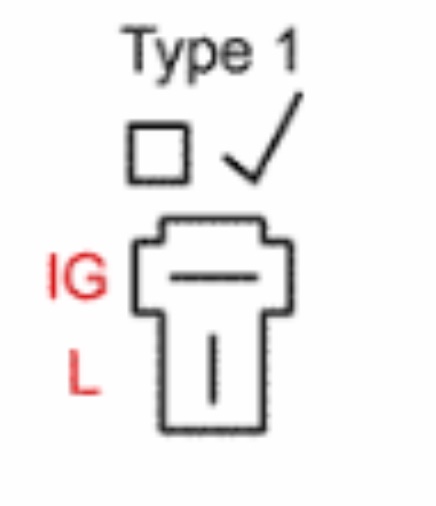

IIRC the later jap ones have a type 1 style plug so

White-red that goes to the voltage reg is the warning light hook that up to L
And
Black-white to IG

The other wires aren’t needed. Make sure the white at the old voltage regulator plug is insulated though to avoid any shorts as that will be a permanent live.
