AISIN Calliper rebuild - what the heck is this clip for?

Starts at the flywheel, ends at the hubs, any problems along them lines, ask your questions here.
Anton
I spend far too much time on here
I spend far too much time on here
Posts: 3859
Joined: Tue Jan 12, 2010 12:12 pm
Location: London

Re: AISIN Calliper rebuild - what the heck is this clip for?

Post by Anton » Wed Mar 13, 2013 9:59 am

Jordi wrote:I've got the rebuild kit with sliders. Just need some of the pad retaining clip.

Cheers bud

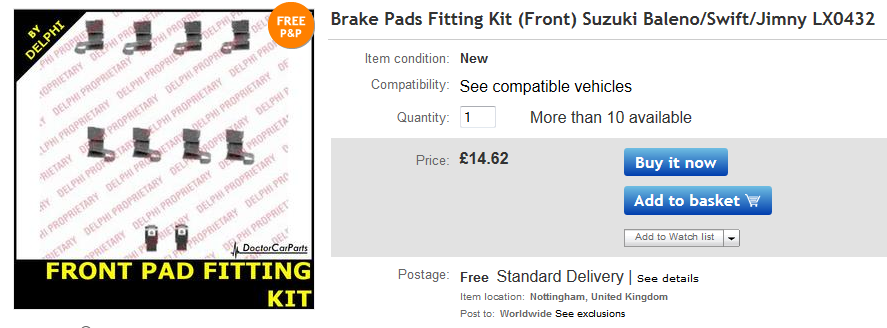

http://www.ebay.co.uk/itm/310534809300

A LOT more spendy, but free delivery so it's probably relatively equal. Shame BI don't have 'em in stock!

I don't know if these will help you, but that page also tells me these part numbers are "equivalent":

TRW: PFK526
METZGER: Z 1671
OJD (QUICK BRAKE): 109-1671, 1671
APEC braking: KIT1113

A little research and I *think* the Suzuki PN is 2281671000. Don't shoot me if that's wrong.
1985 SJ413VX (SJ50V) with SPOA, rear disc brakes, 31x10.5R15 Kaiman Malatesta tyres, an MOT and a lot left to do!

My: Build thread To-do list Pay and Play map

User avatar
Jordi
Bow down before me
Bow down before me
Posts: 7535
Joined: Sun Nov 29, 2009 2:35 pm
Location: Darlington, Co. Durham

Re: AISIN Calliper rebuild - what the heck is this clip for?

Post by Jordi » Wed Mar 13, 2013 12:23 pm

Strange on the pricing. I got my caliper kits from BI but through ebay as it was cheaper.

Cheers for that Anton i'll get it ordered when i'm home.
1988 Samurai - Truck Cab & Tray Back - 1.6 8v & HIF44 - Snorkel - Stack Exhaust - PAS, YJs & 33s - Trussed, Gusseted & Pumpkin Capped Axles - 4.3 R&Ps - 4.16 T/Box - Rear Air Locker - Full Float Back Axle & Discs - RCV Front Shafts - X-Eng Handbrake - Custom Fuel Tank

User avatar
Darrell
Suzuki, will you marry me?
Suzuki, will you marry me?
Posts: 2988
Joined: Wed Feb 23, 2011 7:54 pm
Location: south oxfordshire
Contact:

Re: AISIN Calliper rebuild - what the heck is this clip for?

Post by Darrell » Wed Mar 13, 2013 7:34 pm

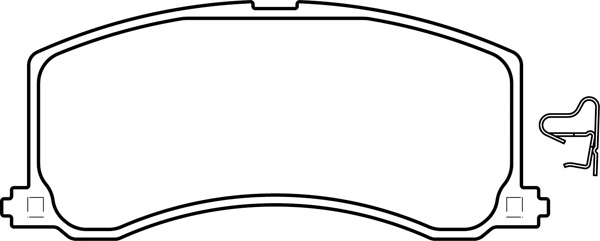

Armed with the above linky I have found the Baleno uses the same kit including an audible wear indicator :doublethumbs:
Do I get a prize?

No - sod off!

Ok here's pics anyway :thumbup:
Attachments
PAD1391 baleno.jpg
PAD1391 baleno.jpg (18.97 KiB) Viewed 3802 times
2005-GV 1600se, "Hell" What do I know!

User avatar
Darrell
Suzuki, will you marry me?
Suzuki, will you marry me?
Posts: 2988
Joined: Wed Feb 23, 2011 7:54 pm
Location: south oxfordshire
Contact:

Re: AISIN Calliper rebuild - what the heck is this clip for?

Post by Darrell » Wed Mar 13, 2013 7:39 pm

"Still, copper slip can't hurt, can it?"

Erm :cry:

About half way down, http://suzukiclubuk.co.uk/forum1/viewto ... se/#p45826
2005-GV 1600se, "Hell" What do I know!

Anton
I spend far too much time on here
I spend far too much time on here
Posts: 3859
Joined: Tue Jan 12, 2010 12:12 pm
Location: London

Re: AISIN Calliper rebuild - what the heck is this clip for?

Post by Anton » Wed Mar 13, 2013 8:43 pm

Jordi wrote:Strange on the pricing. I got my caliper kits from BI but through ebay as it was cheaper.

Cheers for that Anton i'll get it ordered when i'm home.
Niet problemo, comrade!!
Darrell wrote:Do I get a prize?
Yes! Hugz. Hugz coming your way. :lol:
Darrell wrote:"Still, copper slip can't hurt, can it?"

Erm :cry:

About half way down, http://suzukiclubuk.co.uk/forum1/viewto ... se/#p45826
Aaaargh! Better to know now than later, I suppose - gonna have to take 'em apart now, clean everything meticulously and get some silicone grease in there instead.

And here was me thinking I was finished... :hahaha:
