Jimny cooling system

Post by Ladaman » Sat Apr 13, 2013 6:29 pm

As you may know I'm in the process of fitting an Ignis M15a engine into my Sami.

This engine is basically the same as the M13 DOHC Jimny engine, but as it was originally transversely mounted, it's gonna need some cooling plumbing mods.

So could one of you Jimny owners be so kind as to upload some pics of the hose layout, or point me in the direction of some nice drawings or similar of a Jimny set up?

Thanks.
YouTube
Ignis Sport 1.5 16V; Jimny gearbox, 410 transfer box; 5.125:1 Vitara diffs; rear Lockright, Rob Storr full float rear axle, rear discs, YJ springs, virtual lift, 31" Grizzly Claws, beadlock rims, +50mm LR arches, LED rear lights, LED roof spots, bucket seats, Luke harnesses, internal cage

User avatar
Darrell
Suzuki, will you marry me?
Suzuki, will you marry me?
Posts: 2988
Joined: Wed Feb 23, 2011 7:54 pm
Location: south oxfordshire
Contact:

Re: Jimny cooling system

Post by Darrell » Sat Apr 13, 2013 7:18 pm

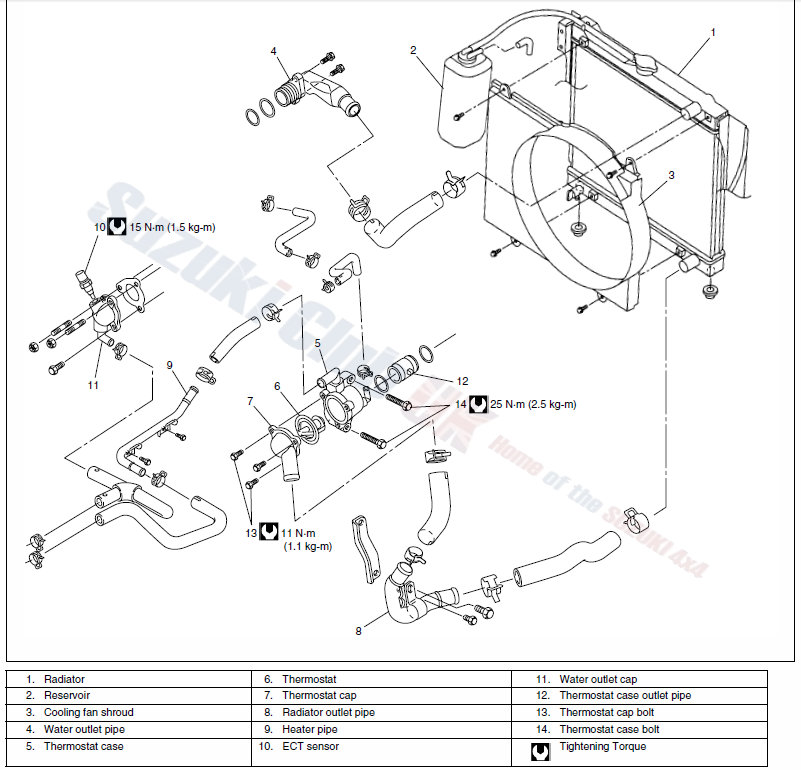

I've got this drawings from my Jimny workshop manual of the DOHC engine version.
Attachments
DOHC Jimny hoses.jpg
DOHC Jimny hoses.jpg (123.88 KiB) Viewed 3898 times
2005-GV 1600se, "Hell" What do I know!

User avatar
Ladaman
Suzuki Guru
Suzuki Guru
Posts: 1090
Joined: Thu Sep 08, 2011 10:56 pm
Location: Huddersfield, W. Yorkshire
Contact:

Re: Jimny cooling system

Post by Ladaman » Sat Apr 13, 2013 7:47 pm

I almost started my original post off with

Darrell can you post a picture of..... :hahaha: That's a great start, thanks.

Some actual engine engine pics would be really nice as well.
YouTube
Ignis Sport 1.5 16V; Jimny gearbox, 410 transfer box; 5.125:1 Vitara diffs; rear Lockright, Rob Storr full float rear axle, rear discs, YJ springs, virtual lift, 31" Grizzly Claws, beadlock rims, +50mm LR arches, LED rear lights, LED roof spots, bucket seats, Luke harnesses, internal cage

User avatar
Ladaman
Suzuki Guru
Suzuki Guru
Posts: 1090
Joined: Thu Sep 08, 2011 10:56 pm
Location: Huddersfield, W. Yorkshire
Contact:

Re: Jimny cooling system

Post by Ladaman » Fri Apr 26, 2013 11:17 pm

I've managed to find a guy quite local to me today who was prepared to sell just about all the Jimny pipework as shown on the diagram Darrell uploaded, and at a sensible price. It all fits nicely too as that's been tonight's job. I still need to sort out the heater pipes and manifold pipes, but it shouldn't be too difficult to sort out. A little bit closer. :D
