Can anyone let me know what type of central locking system is on the 2002 Jimny
i.e. is it
a Positive triggerred central locking system
b Negative triggerred central locking system
c Electro Pneumatic central locking system
Jimny Central Locking
- Darrell
- Suzuki, will you marry me?
- Posts: 2989
- Joined: Wed Feb 23, 2011 7:54 pm
- Location: south oxfordshire
- Contact:
Re: Jimny Central Locking
I have no idea what years have what type, but I have taken these diagrams from the manual I have.
Hope it will help.
Hope it will help.
- Attachments
-
- Type 3.jpg (231.62 KiB) Viewed 4328 times
-

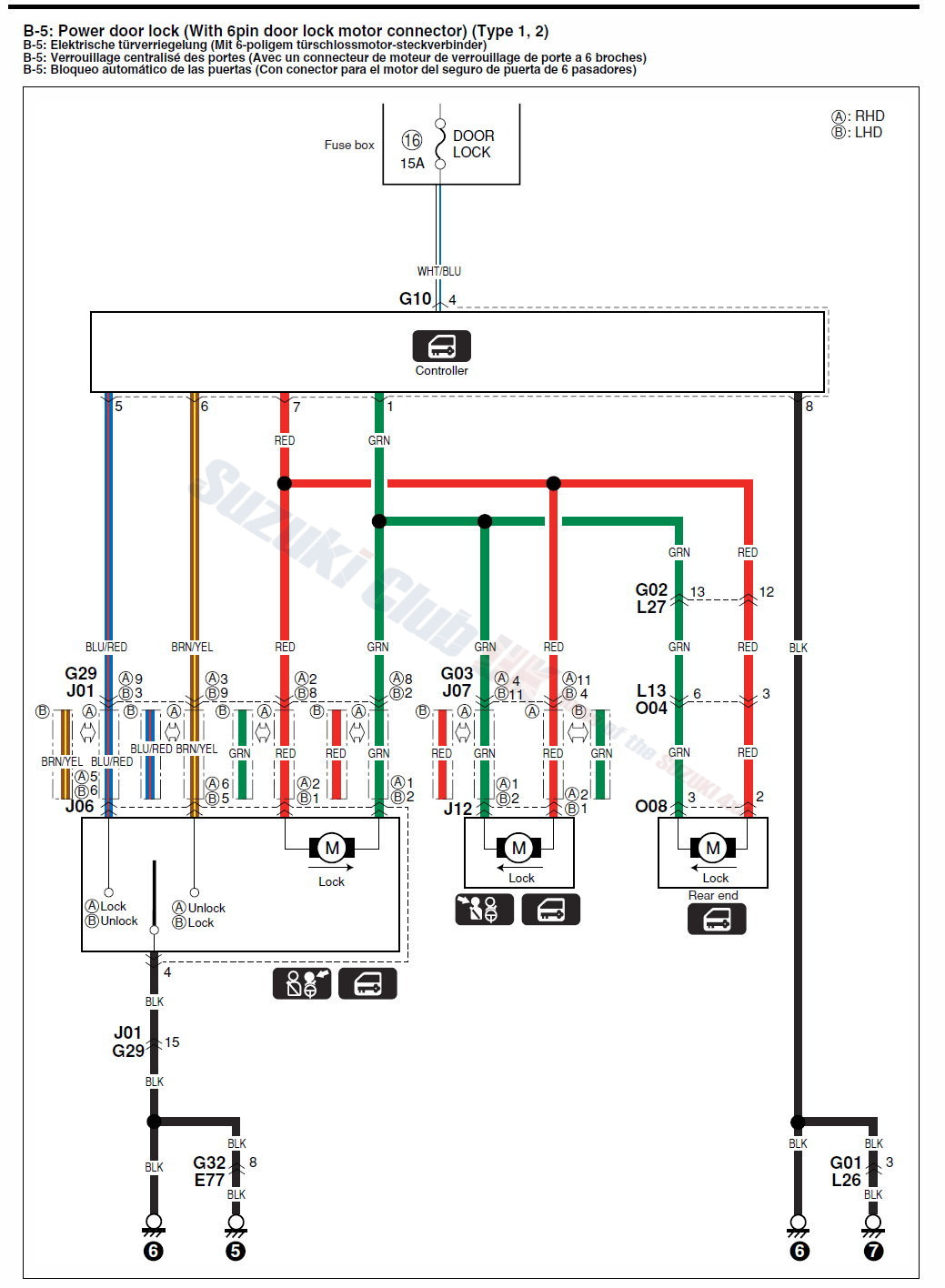

- Type 1 2 6 pin.jpg (244.38 KiB) Viewed 4328 times
-

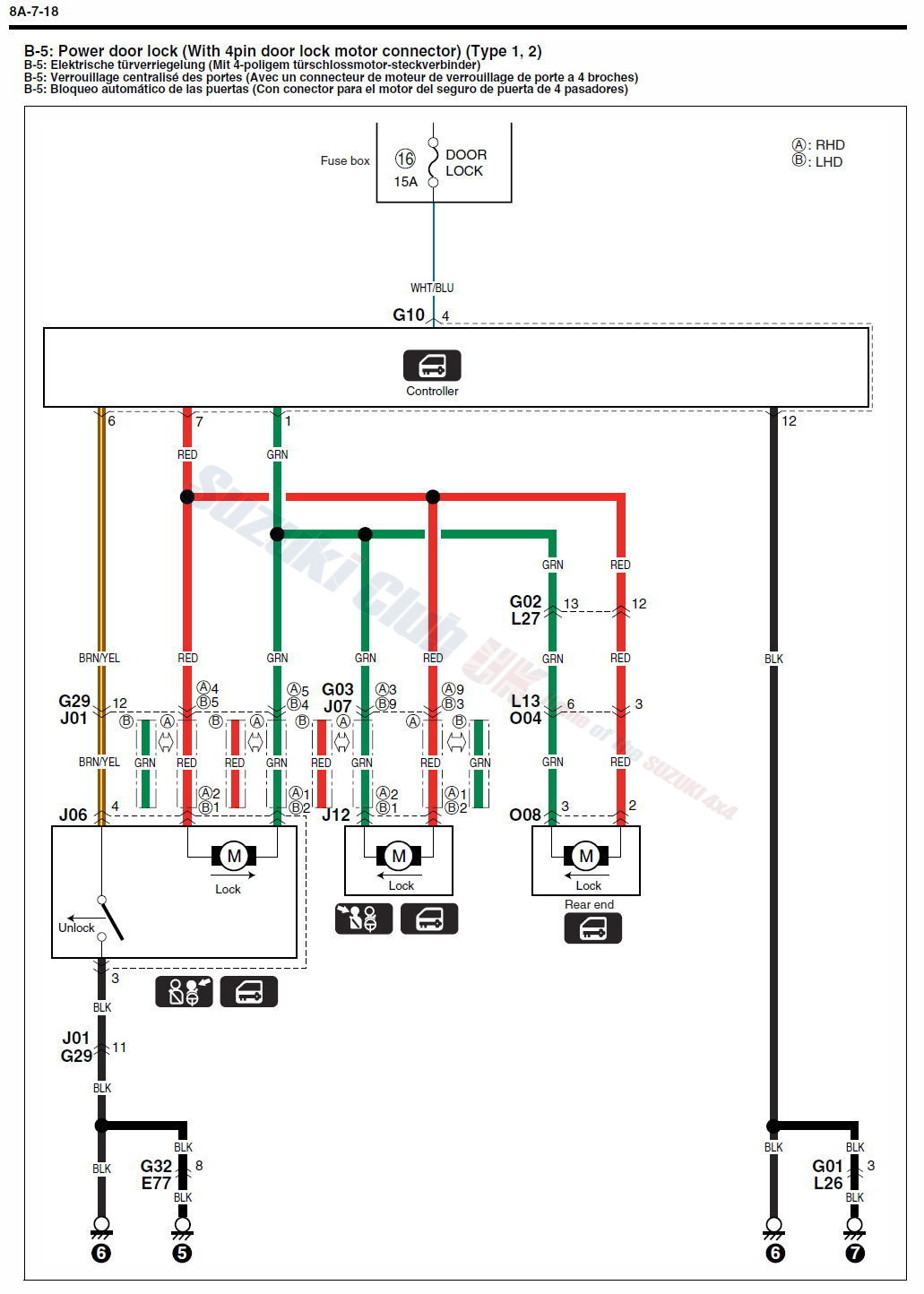

- Type 1 2 4pin.jpg (226.19 KiB) Viewed 4328 times
-

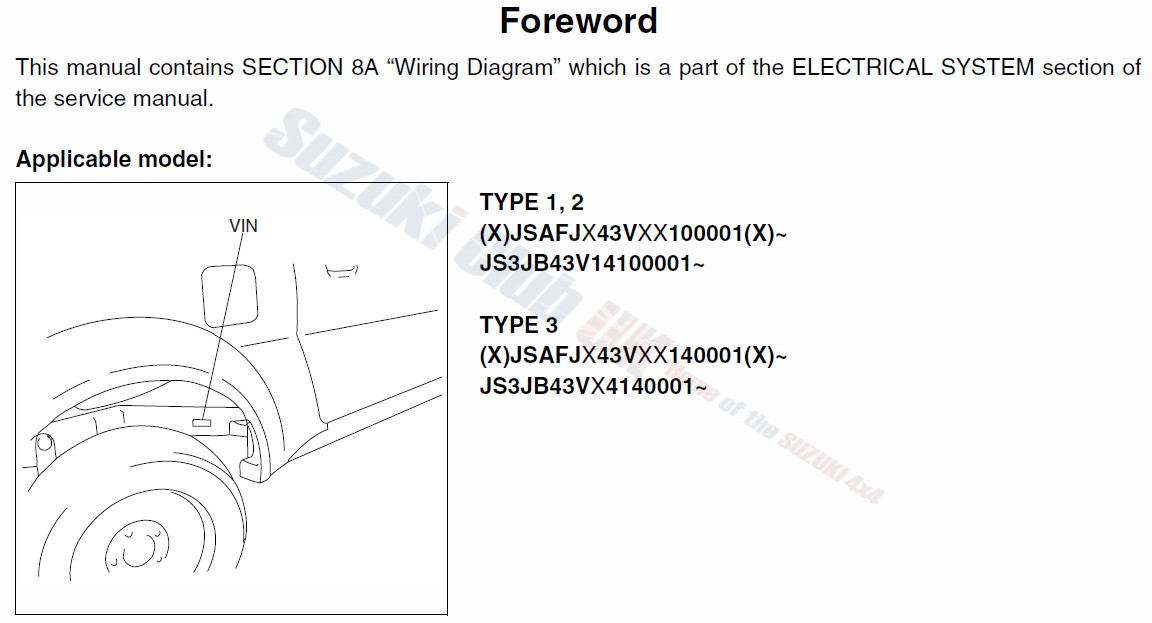

- Jim 1.jpg (124.17 KiB) Viewed 4328 times
2005-GV 1600se, "Hell" What do I know!
Re: Jimny Central Locking
Thanks for the info
