Wiring diagrams

Got an electrical gremlin? Ask the question here.
Tommo
Got muddy boots
Got muddy boots
Posts: 9
Joined: Fri Aug 22, 2014 6:36 pm

Re: Wiring diagrams

Post by Tommo » Fri Aug 22, 2014 6:42 pm

hi i've got a 1988 suzuki sj410 santana my hazards lights work but not the indicator arm its self any ideas what it could be?

User avatar
Darrell
Suzuki, will you marry me?
Suzuki, will you marry me?
Posts: 2988
Joined: Wed Feb 23, 2011 7:54 pm
Location: south oxfordshire
Contact:

Re: Wiring diagrams

Post by Darrell » Fri Aug 22, 2014 9:38 pm

Hi Tommo

They have separate fuses for hazards / indicators so check that first.
2005-GV 1600se, "Hell" What do I know!

Tommo
Got muddy boots
Got muddy boots
Posts: 9
Joined: Fri Aug 22, 2014 6:36 pm

Re: Wiring diagrams

Post by Tommo » Sun Oct 26, 2014 7:52 pm

hi guys im abit stuck my fuel gauge does not work but the is to cables a yellow and red and a violet and yellow one which cable does what? can someone help me

User avatar
Darrell
Suzuki, will you marry me?
Suzuki, will you marry me?
Posts: 2988
Joined: Wed Feb 23, 2011 7:54 pm
Location: south oxfordshire
Contact:

Re: Wiring diagrams

Post by Darrell » Sun Oct 26, 2014 8:15 pm

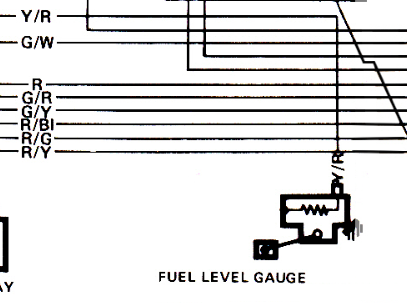

Yellow with red tracer goes to the fuel sender unit.
Not aware of any violet wires on an SJ :er:
Attachments
2005-GV 1600se, "Hell" What do I know!

Tommo
Got muddy boots
Got muddy boots
Posts: 9
Joined: Fri Aug 22, 2014 6:36 pm

Re: Wiring diagrams

Post by Tommo » Sun Oct 26, 2014 8:30 pm

so it the Y/R the only cable that should be connected?

User avatar
ektoz
Engaged 4wd low
Engaged 4wd low
Posts: 153
Joined: Fri Apr 19, 2013 10:59 am
Location: Paphos, Cyprus
Contact:

Re: Wiring diagrams

Post by ektoz » Thu Jan 08, 2015 8:31 am

Thanks very much scottie !!
Don't grow up, it's a trap
My build thread:
http://www.suzukiclubuk.co.uk/forum1/vi ... hp?t=10402

Jayanson1997
Got muddy boots
Got muddy boots
Posts: 8
Joined: Sat Oct 17, 2015 10:00 pm

Re: Wiring diagrams

Post by Jayanson1997 » Sun Jan 31, 2016 5:41 pm

Anyone know how to change the fuse board out of a Suzuki sj Spanish model, to a fuse box out of a jap model, as I have snapped my fuse board an can't seem to find one anywhere
Cheers

User avatar
ScottieJ
The Boss
The Boss
Posts: 11184
Joined: Tue Apr 15, 2008 12:13 pm
Location: Chippenham, wiltshire

Re: Wiring diagrams

Post by ScottieJ » Fri Aug 12, 2016 4:19 pm

Just added the Spanish Santana Samurai wiring diagram to the first post. :thumbup:
Zuki Build

Steady as she goes!

keyring
Engaged 4wd low
Engaged 4wd low
Posts: 121
Joined: Mon Dec 16, 2013 3:32 am

Re: Wiring diagrams

Post by keyring » Thu Sep 29, 2016 8:41 am

Would anyone have a pinnouts diagram for these clocks?
Attachments

User avatar
Darrell
Suzuki, will you marry me?
Suzuki, will you marry me?
Posts: 2988
Joined: Wed Feb 23, 2011 7:54 pm
Location: south oxfordshire
Contact:

Re: Wiring diagrams

Post by Darrell » Thu Sep 29, 2016 11:01 am

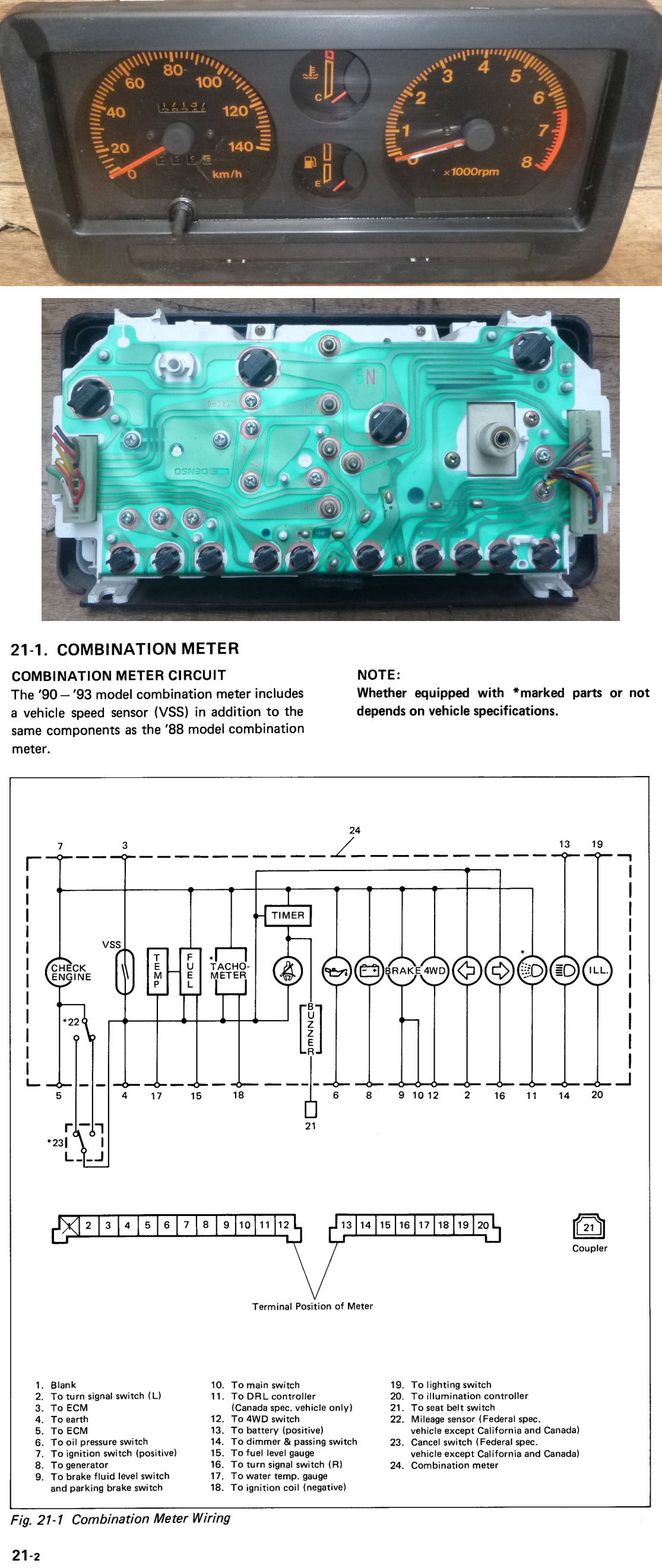

I've put this together for the type with the VSS, I believe earlier ones would still look the same.
Attachments
Sammy clocks 1992.jpg
Sammy clocks 1992.jpg (434.68 KiB) Viewed 2718 times
2005-GV 1600se, "Hell" What do I know!
