Missing link design question

Post by Richie » Mon Jan 14, 2013 8:30 am

Ive got 6 days until the pit is open :lol: so i cant mess this up.

When putting rear springs on the front whats the best design for building the missing link setup?
Any pictures welcome.

What angle should i aim to have the front shackle sit at compaired to the spring to get it to flex right? Thx guys
Top
User avatar
felstmiester
Engaged 4wd low
Engaged 4wd low
Posts: 165
Joined: Sat Dec 18, 2010 12:10 pm

Re: Missing link design question

Post by felstmiester » Tue Jan 15, 2013 4:23 pm

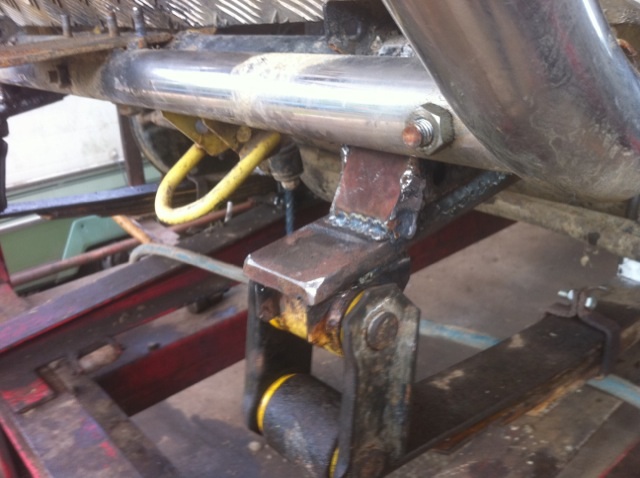

When I did ruf I did mine like this. But obviously you have to weld em.
1.5 ISUZU TD ENGINE. EXTERNAL ROLL CAGE. CUSTOM MADE FRONT & REAR BUMPERS. SAMMY AXLES. RASCAL REARS. RUF. WRX SEATS. FRONT & REAR WINCHES. SNORKEL. FRONT SPOTS & REAR FLOODS. TWIN BATTERIES. FULL WADING KIT. 8.5" WHEELS WITH GRIZZLY CLAWS. OH!!!! AND THE WIFE'S ROASTING TIN!!
Top
User avatar
ScottieJ
The Boss
The Boss
Posts: 11635
Joined: Tue Apr 15, 2008 12:13 pm
Location: Chippenham, wiltshire

Re: Missing link design question

Post by ScottieJ » Tue Jan 15, 2013 4:28 pm

:thumbup: http://www.zukikrawlers.com/showthread. ... ssing+link
Zuki Build

Steady as she goes!
Top
Richie
Engaged 4wd low
Engaged 4wd low
Posts: 192
Joined: Fri Nov 09, 2012 6:23 pm

Re: Missing link design question

Post by Richie » Tue Jan 15, 2013 6:51 pm

Thx just what i need :)
