landy rear lights help

minibreaker · Post by **minibreaker** » Sat Nov 23, 2013 5:30 pm

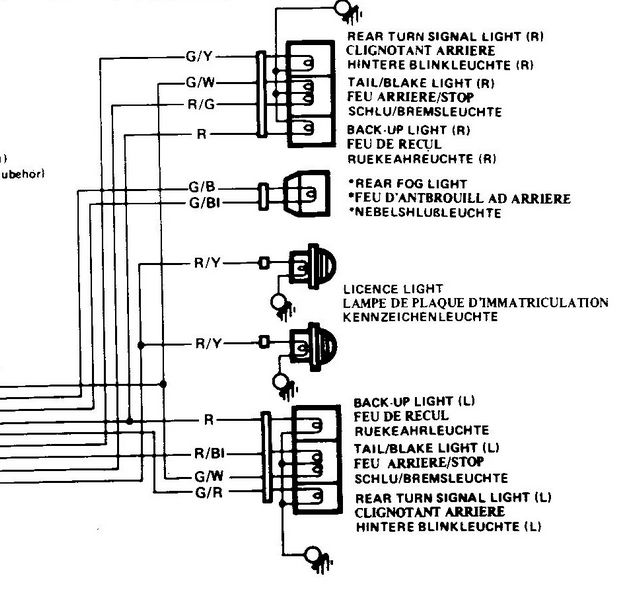

ok i looked at the wiring diagram but i am blind and cant seem to zoom in. i have 3 wires coming out of my brakelight and 2 out of the indicator but i only have 4 wires coming out of the cars loom 2 gree and 2 red can someone please help as i am very confused as to what to wire to what thanks in advanc e

Darrell · Post by **Darrell** » Sat Nov 23, 2013 5:36 pm

3 of them should have a tracer colour..

minibreaker · Post by **minibreaker** » Sat Nov 23, 2013 5:44 pm

thats a great helpthansk as i read it i connect one indicator wire to gree/yellow and the other to earth. and 2 wires for the brake lights and the other to the earth. i bloody hate wiring

Darrell · Post by **Darrell** » Sat Nov 23, 2013 10:30 pm

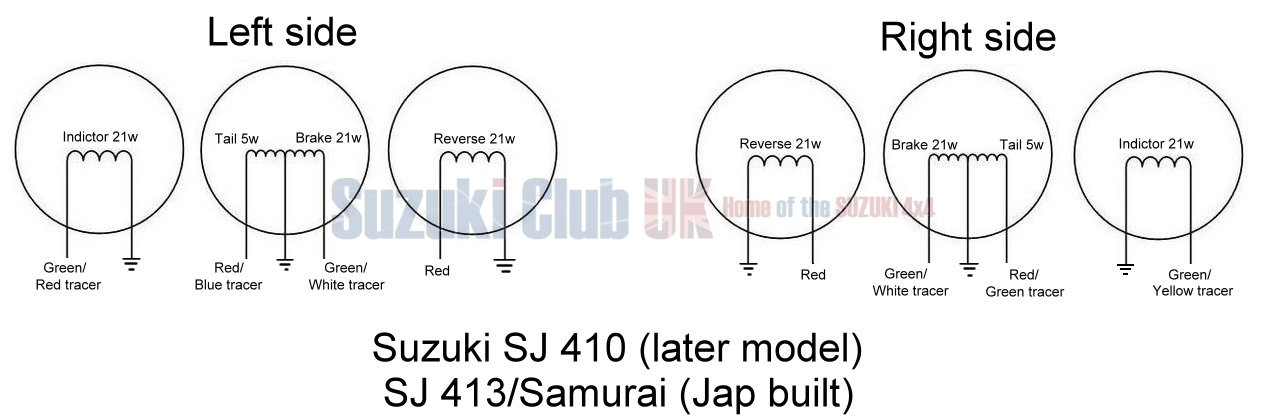

I haven't done a diagram for ages ..... so
