Adding front fog / spot lights

Post by ipbr21054 » Wed Dec 06, 2017 7:45 pm

Grand Vitara 2004.

Current in my front bumper there are no fog / spot lights.
Is there a loom which is mounted in the engine bay where once I fit the lights can then be connected or
Do you need to start from scratch and install it all.

Thanks.
Grand Vitara,54 plate,2000cc,Manual,5 Door,Air Con,4WD.
Top
User avatar
ROBBIE
I spend far too much time on here
I spend far too much time on here
Posts: 4555
Joined: Tue Sep 09, 2008 6:32 pm
Location: Dorset or stuck

Re: Adding front fog / spot lights

Post by ROBBIE » Thu Dec 07, 2017 9:27 am

Sorry not really noticed if there are any models that had fogs, but if yes there is a possibility that could be wiring down there
Sid James gone but never forgotten
Jimny 1.6 not as good as an SJ but still good
Top
User avatar
Darrell
Suzuki, will you marry me?
Suzuki, will you marry me?
Posts: 2989
Joined: Wed Feb 23, 2011 7:54 pm
Location: south oxfordshire
Contact:
Contact Darrell

Re: Adding front fog / spot lights

Post by Darrell » Thu Dec 07, 2017 10:09 pm

You need to check the wiring is in place. If so you just need the lights,switch and probably a relay/fuse installed in the appropriate sockets.
Attachments

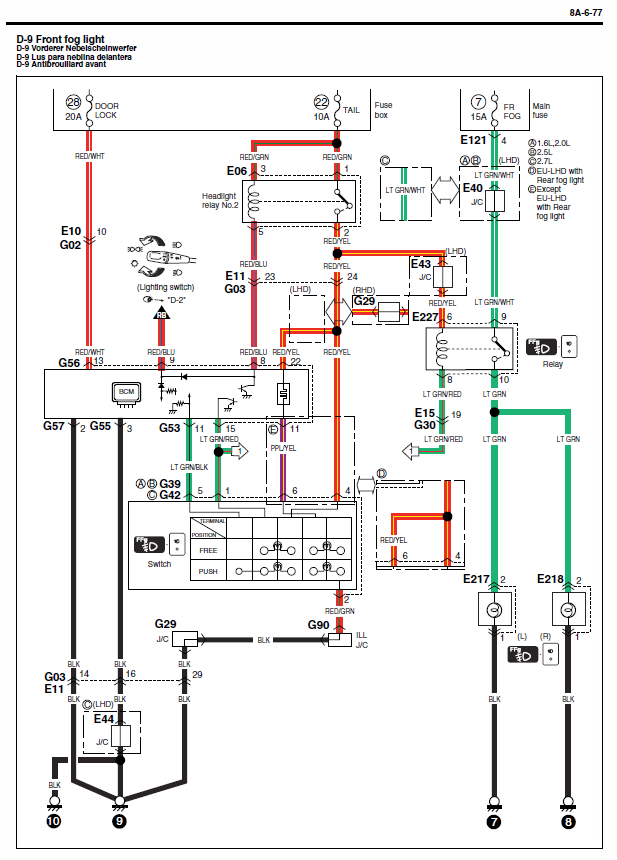

GV SQ 2003-2005 front fog.png
GV SQ 2003-2005 front fog.png (81.87 KiB) Viewed 4076 times
2005-GV 1600se, "Hell" What do I know!
