Re: Marves 410 van

Post by timwilks13 » Thu May 16, 2019 10:16 am

I think you should have left the old tyres on the rears, loving the laid back style :hahaha:
1986 SJ410 - Furry dice, new window winder.

10 kinds of people in this world, those who understand binary and those who dont.

if you can read this you're too close to the monitor, sit back and save your eyes!!
My build, formally Trotters build.

marve114
Engaged 4wd low
Engaged 4wd low
Posts: 102
Joined: Fri May 18, 2018 10:52 pm

Re: Marves 410 van

Post by marve114 » Thu May 16, 2019 12:57 pm

It was a very weird drive proper laid back

Anton
I spend far too much time on here
I spend far too much time on here
Posts: 3859
Joined: Tue Jan 12, 2010 12:12 pm
Location: London

Re: Marves 410 van

Post by Anton » Fri May 17, 2019 2:27 pm

marve114 wrote:
Thu May 16, 2019 12:57 pm
It was a very weird drive proper laid back

Click Here for Youtube Video

1985 SJ413VX (SJ50V) with SPOA, rear disc brakes, 31x10.5R15 Kaiman Malatesta tyres, an MOT and a lot left to do!

My: Build thread To-do list Pay and Play map

marve114
Engaged 4wd low
Engaged 4wd low
Posts: 102
Joined: Fri May 18, 2018 10:52 pm

Re: Marves 410 van

Post by marve114 » Thu May 30, 2019 2:49 pm

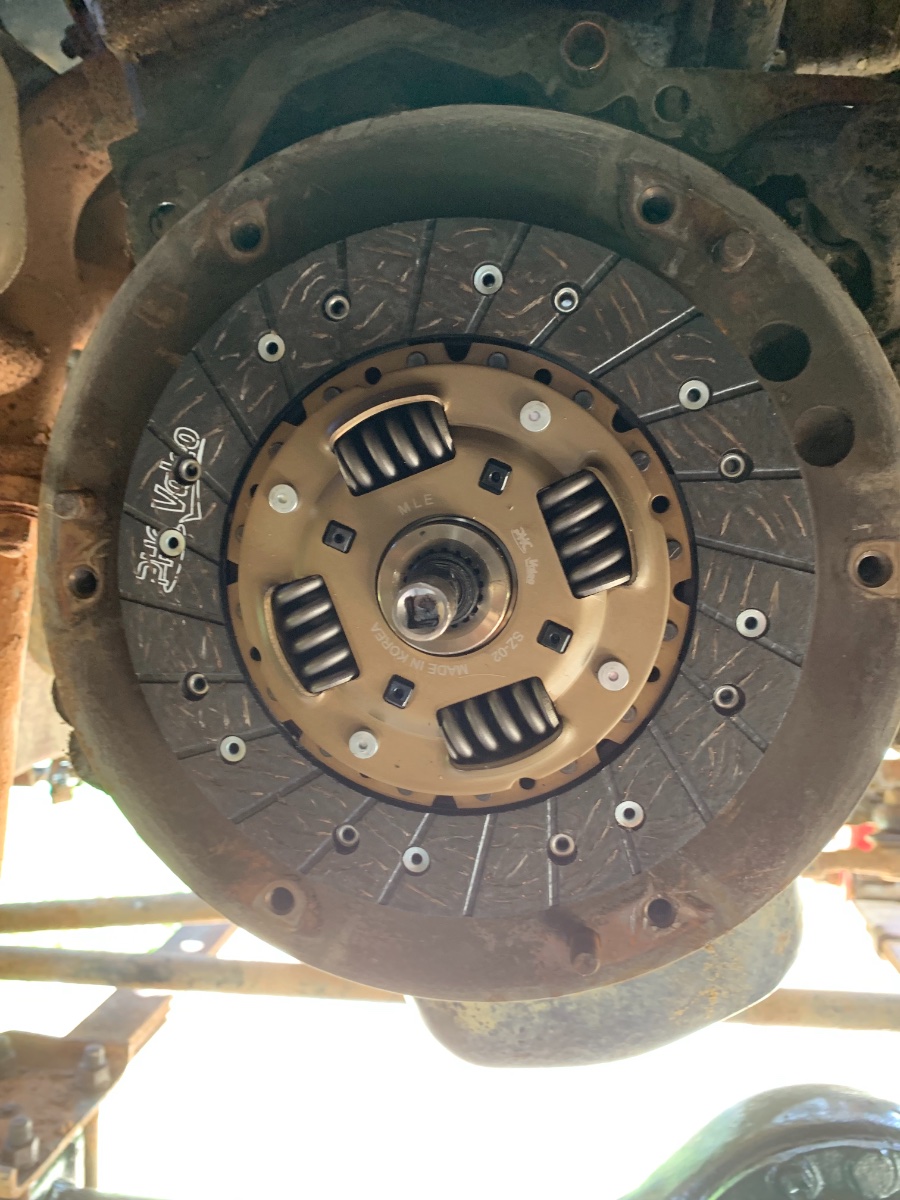

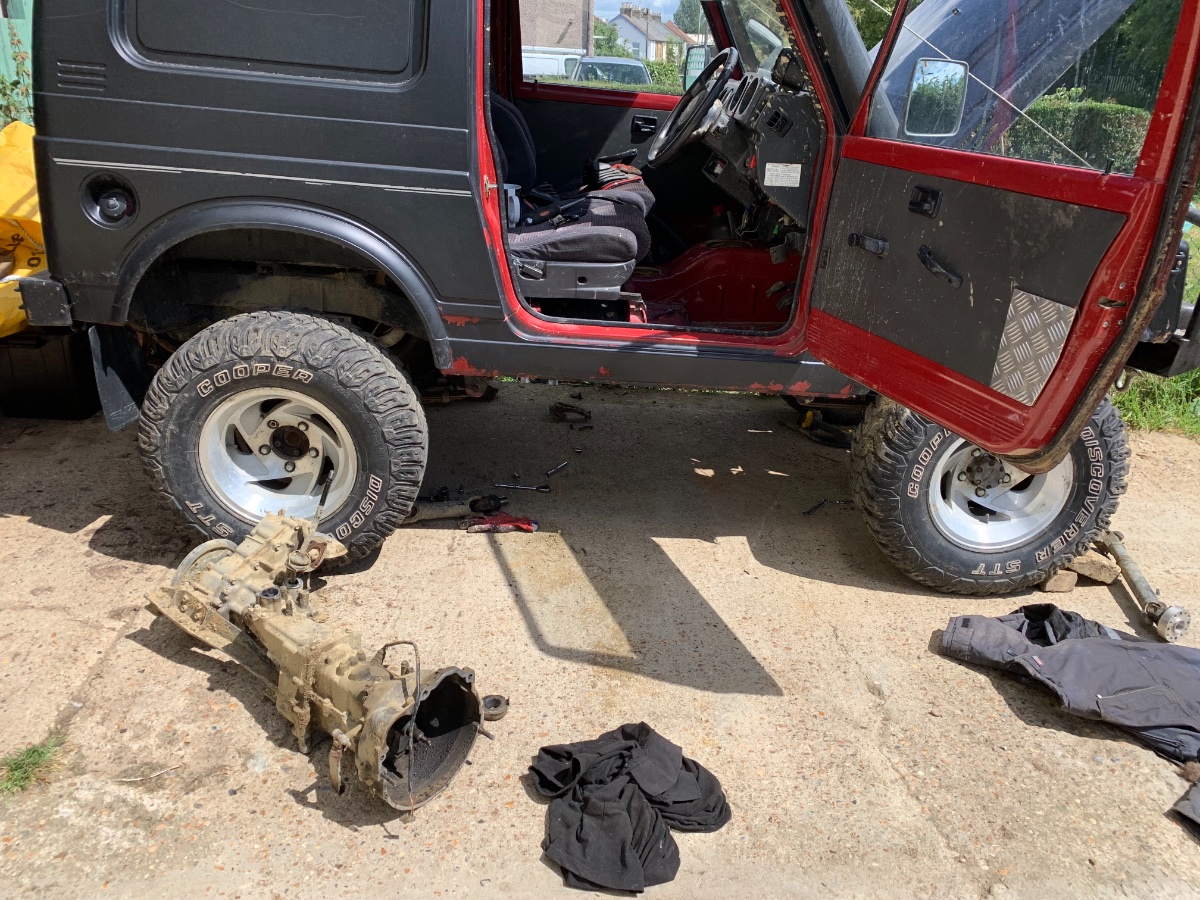

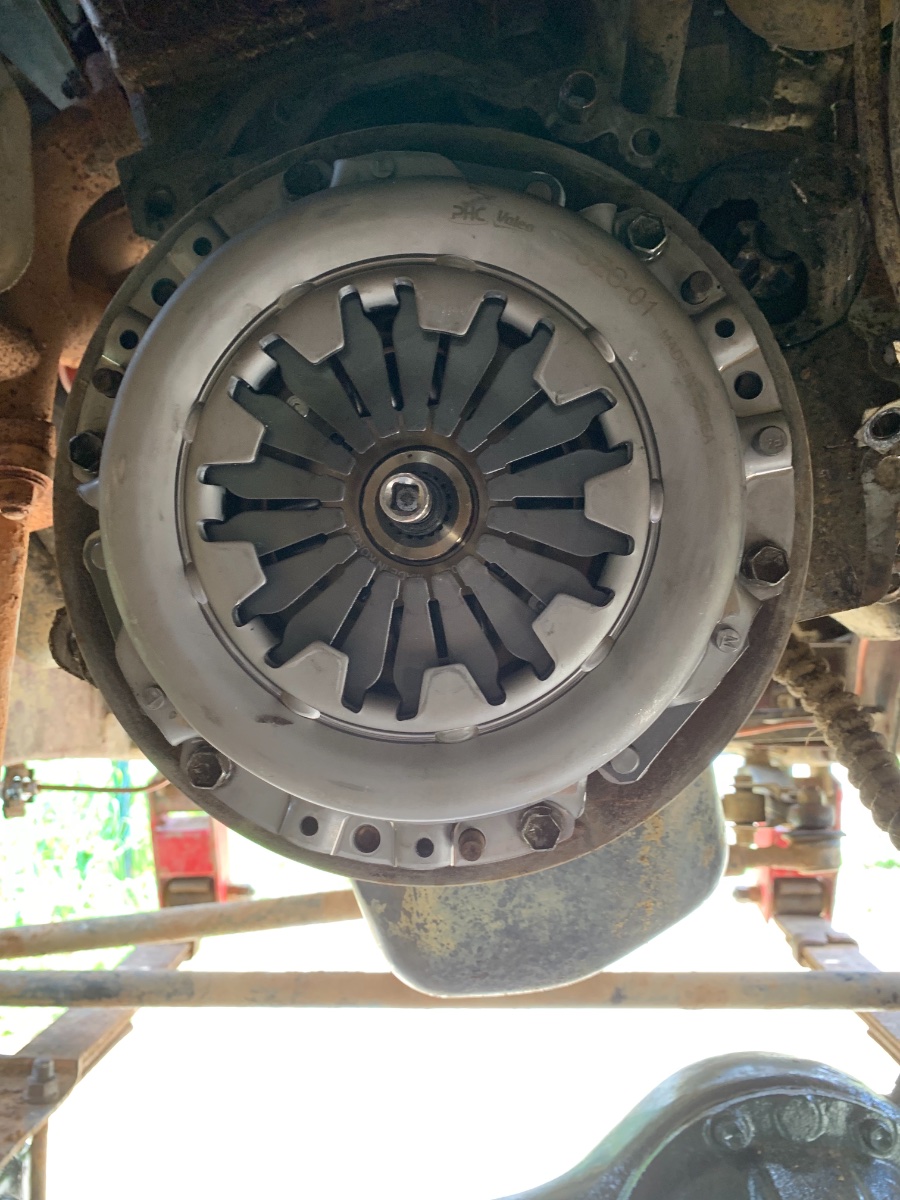

Clutch renewed but to be honest it looked ok for a little while

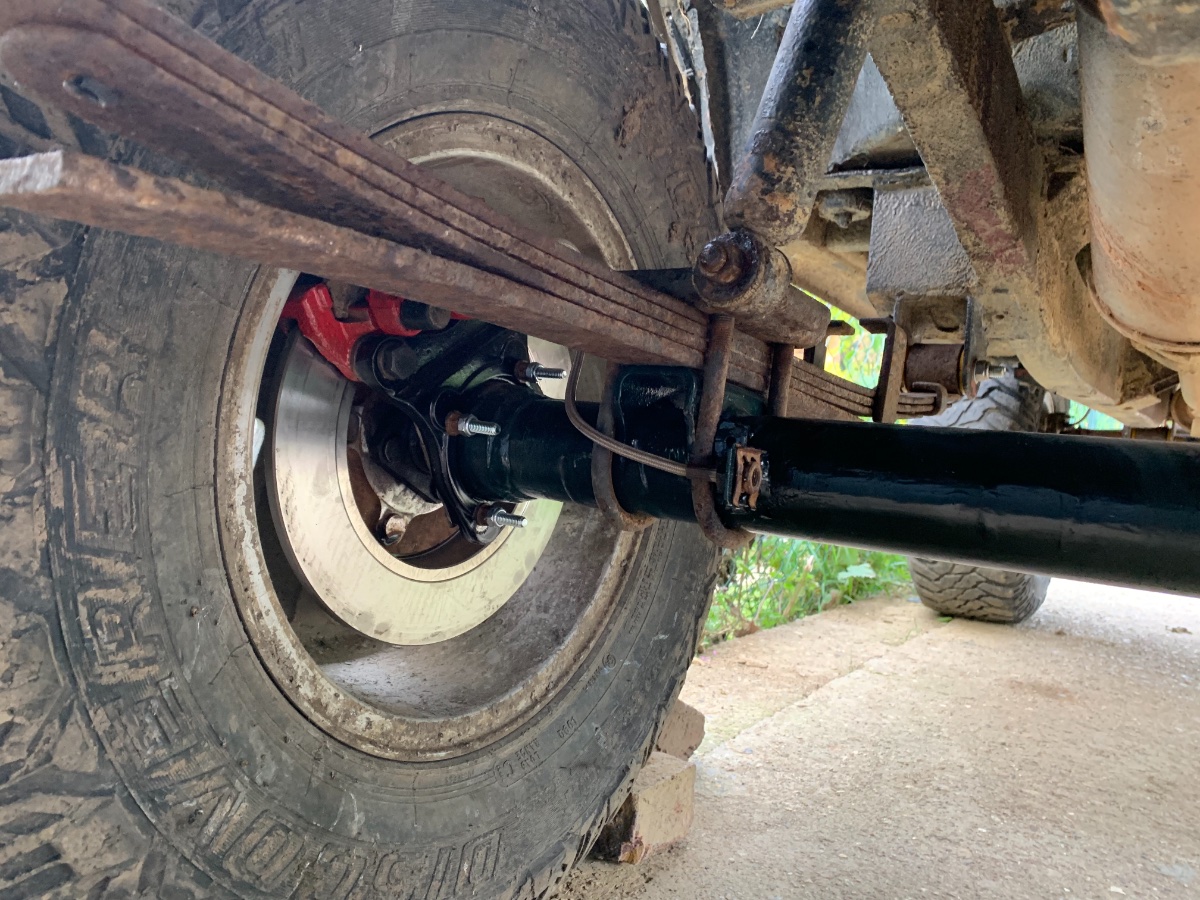

Put the lobster box in as well with cradle just gotta put some hd mounts in as one of the original was torn but I needed it to have a hand brake

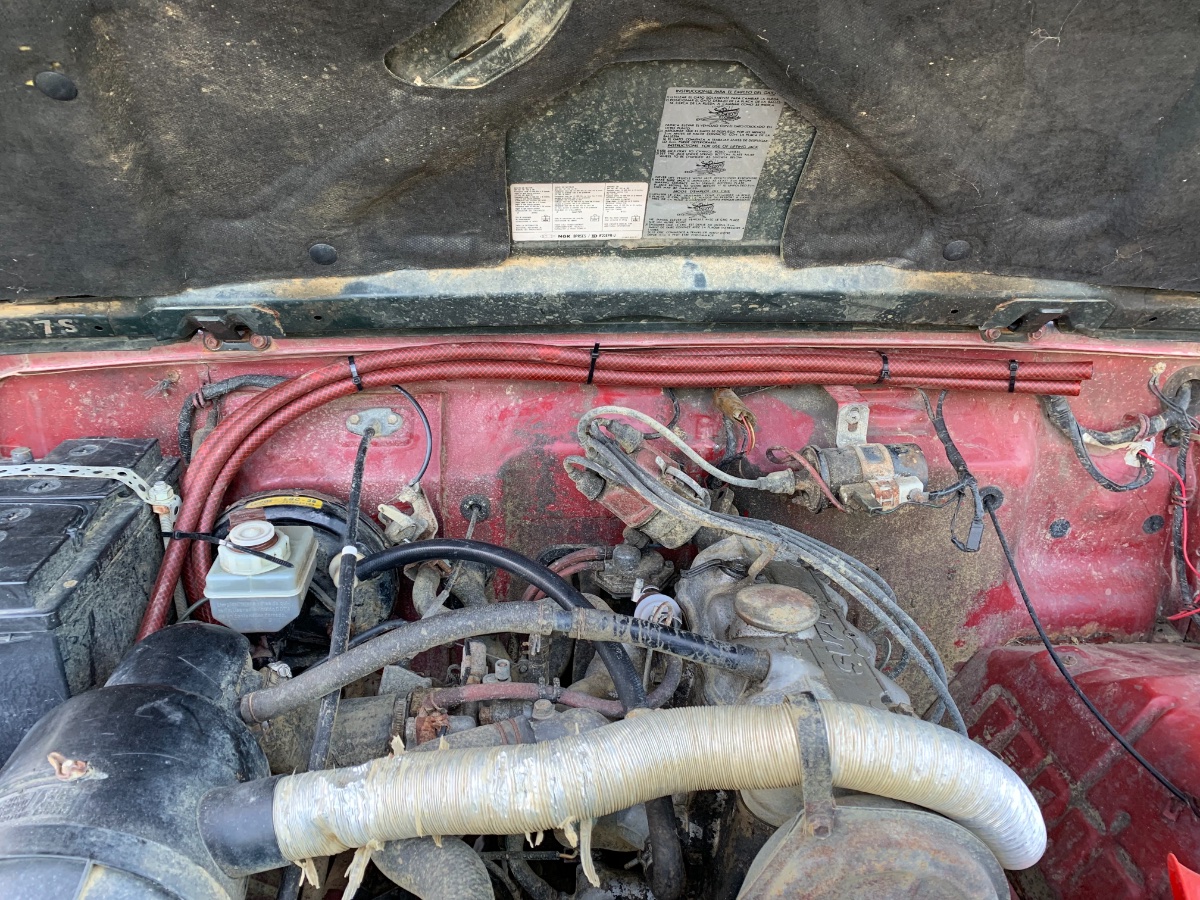

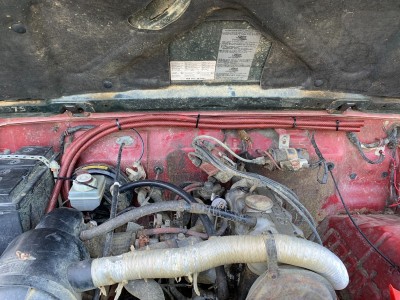

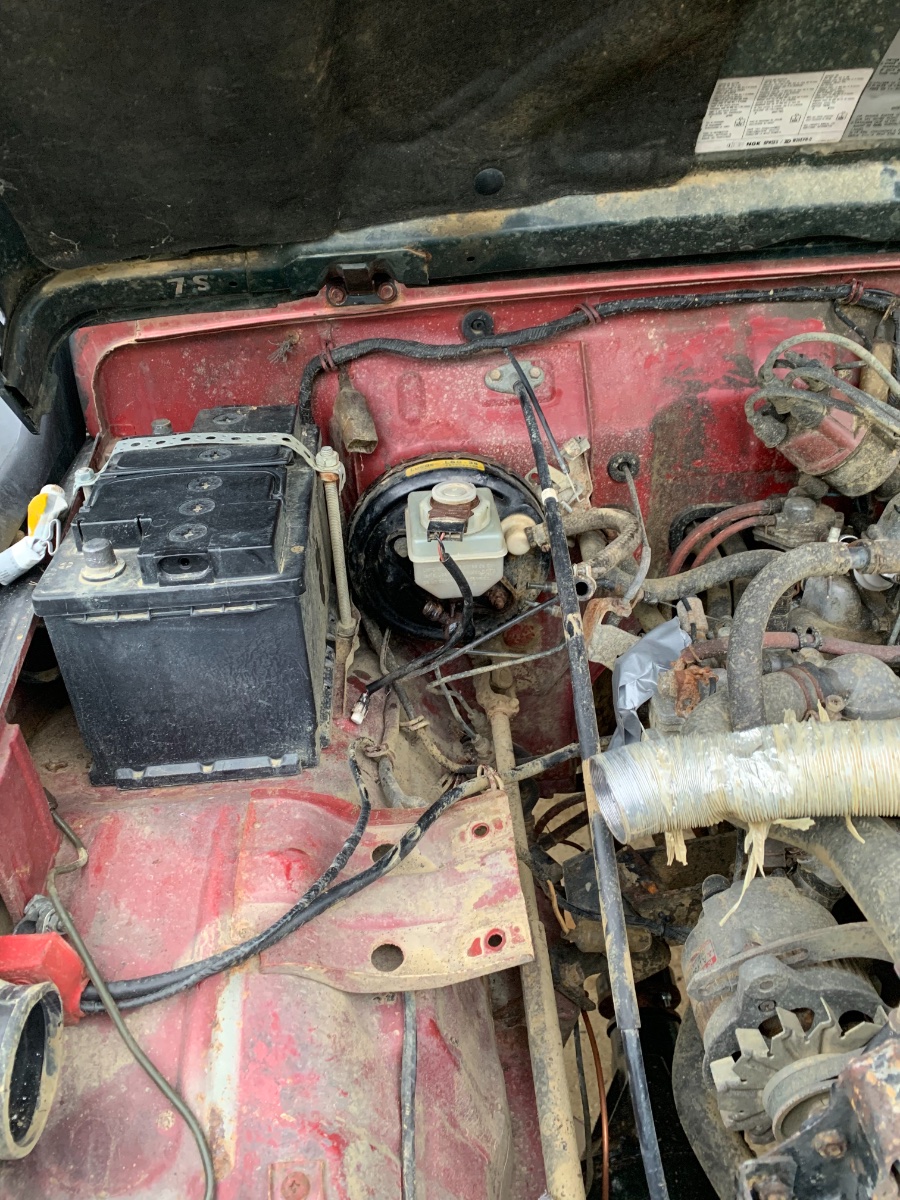

Servo on brakes bleed

Tyres ordered

Still a few little jobs todo but getting there
Attachments

marve114
Engaged 4wd low
Engaged 4wd low
Posts: 102
Joined: Fri May 18, 2018 10:52 pm

Re: Marves 410 van

Post by marve114 » Thu May 30, 2019 9:54 pm

Hd transfer box mounts fitted

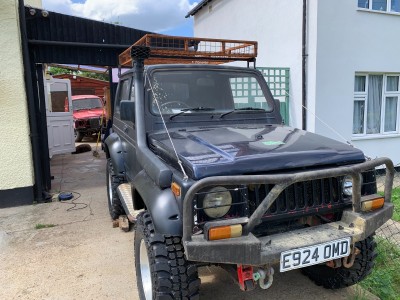

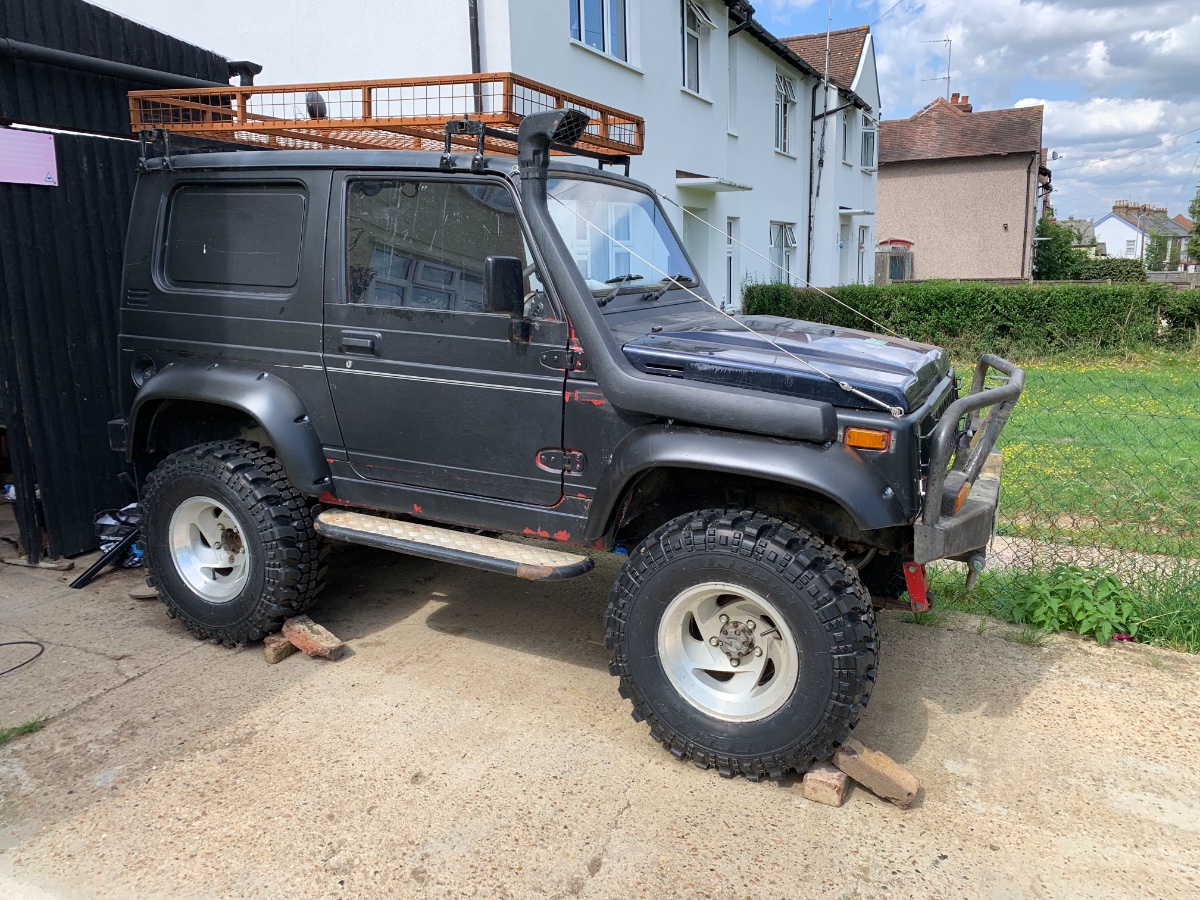

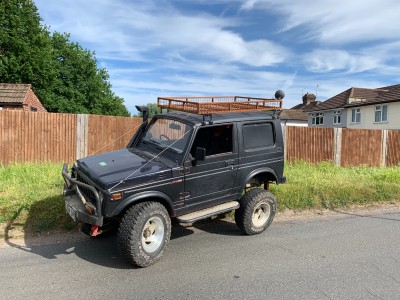

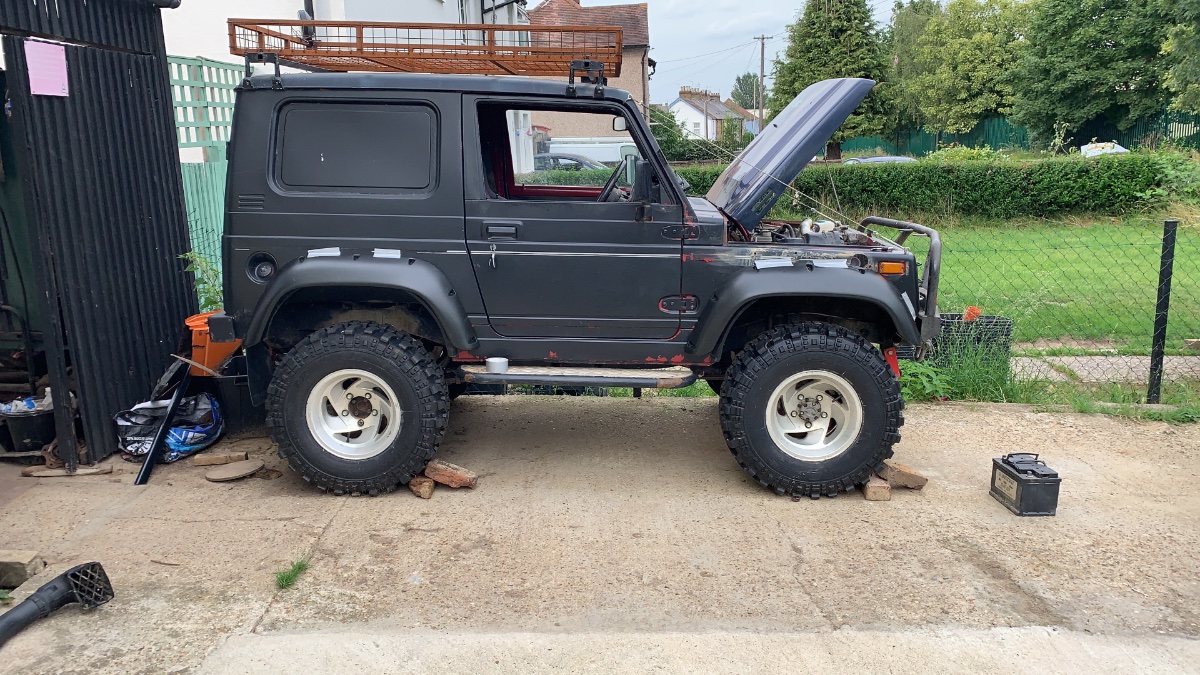

Side steps on
Attachments

User avatar
timwilks13
SCUK Website Padawan
SCUK Website Padawan
Posts: 1248
Joined: Sun Feb 03, 2013 5:55 am
Location: Scarborough, soon to be Poland

Re: Marves 410 van

Post by timwilks13 » Fri May 31, 2019 12:00 pm

Really cracking on with it well done!
1986 SJ410 - Furry dice, new window winder.

10 kinds of people in this world, those who understand binary and those who dont.

if you can read this you're too close to the monitor, sit back and save your eyes!!
My build, formally Trotters build.

marve114
Engaged 4wd low
Engaged 4wd low
Posts: 102
Joined: Fri May 18, 2018 10:52 pm

Re: Marves 410 van

Post by marve114 » Fri May 31, 2019 9:46 pm

Finally feels like it’s getting some where now

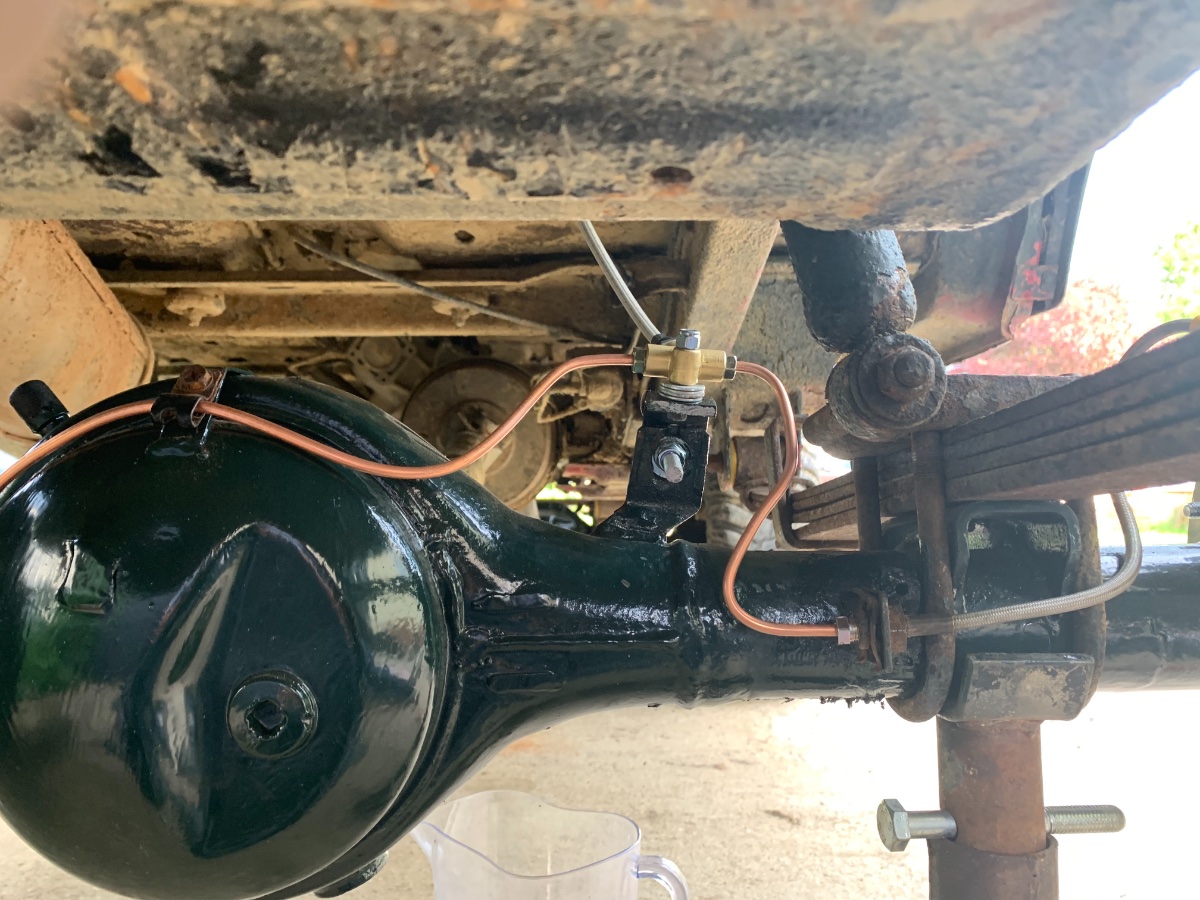

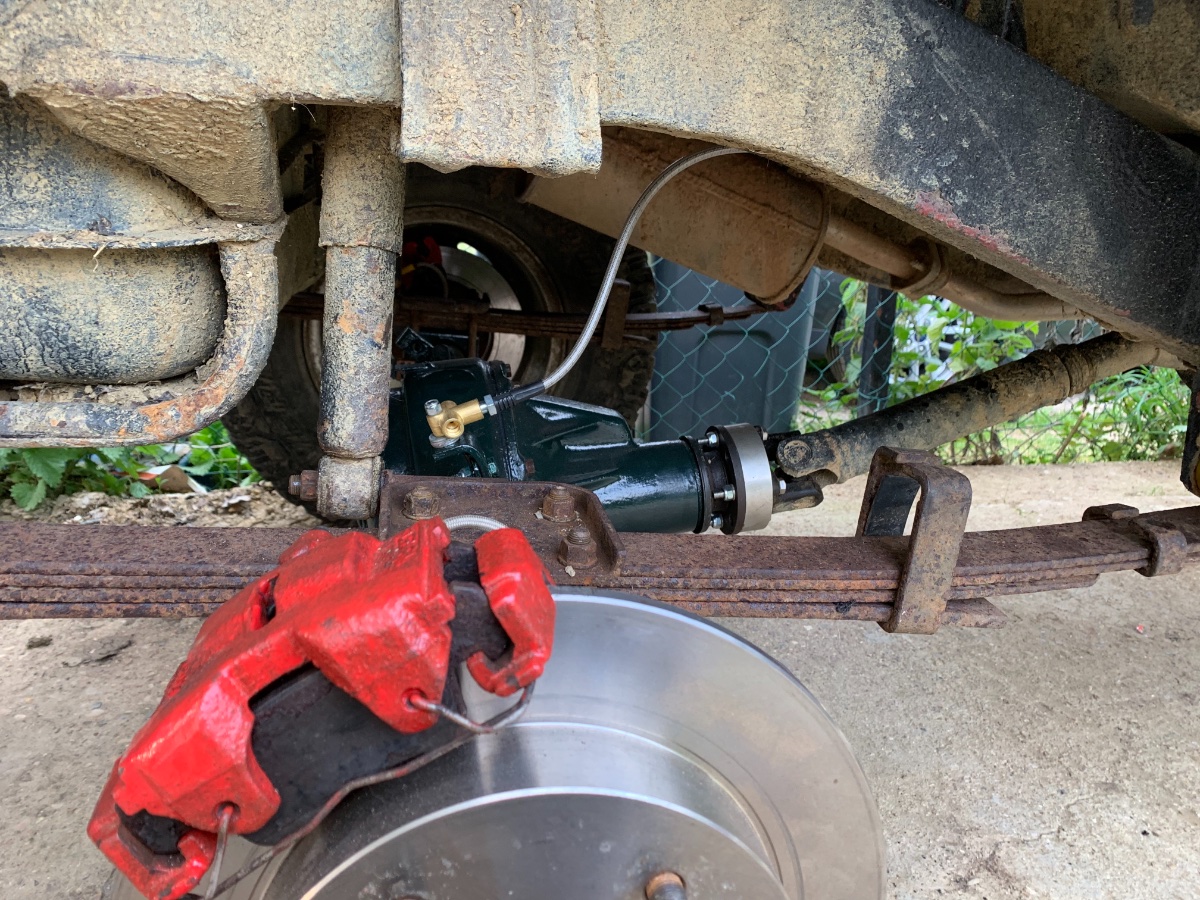

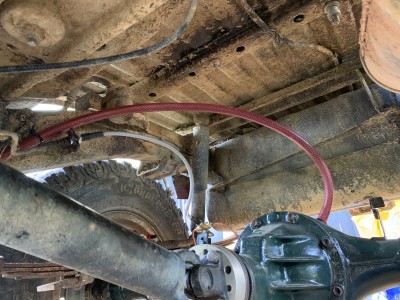

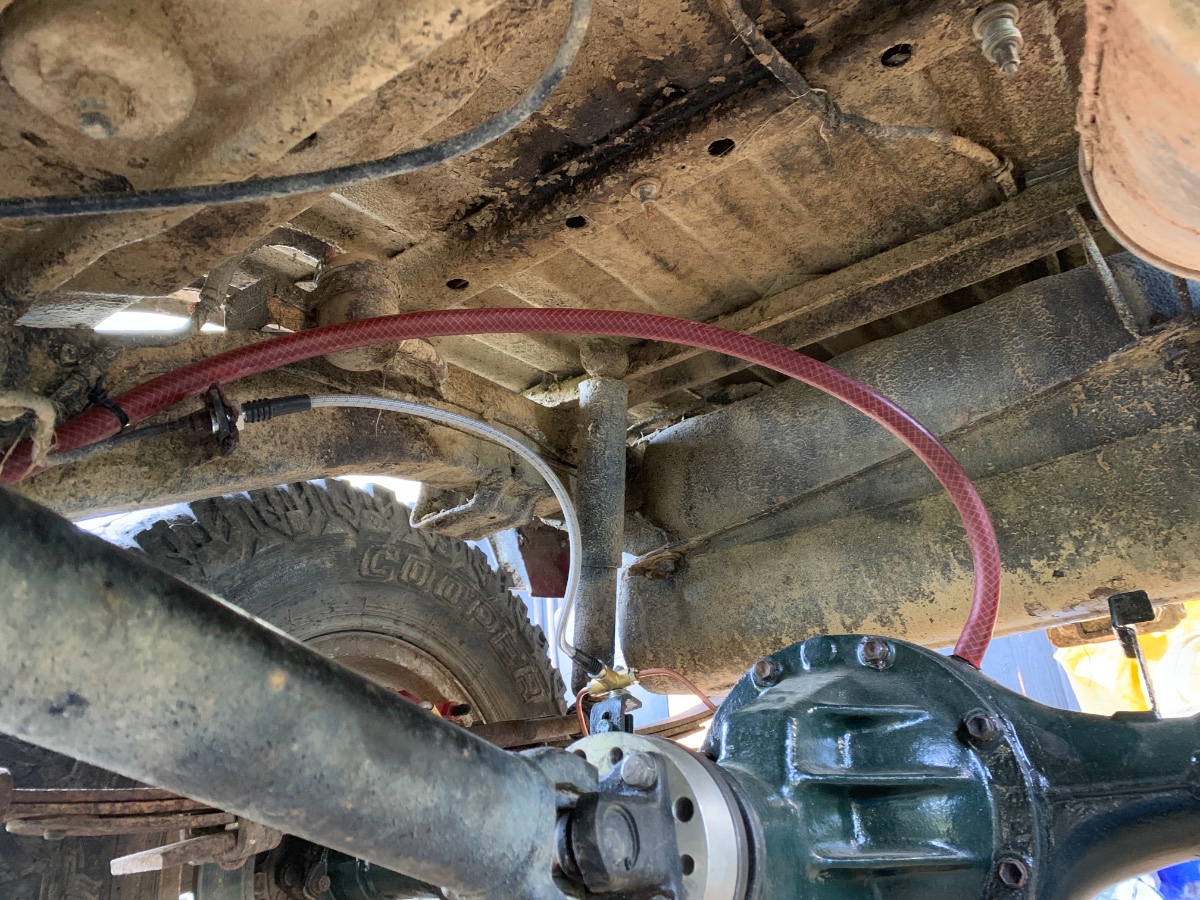

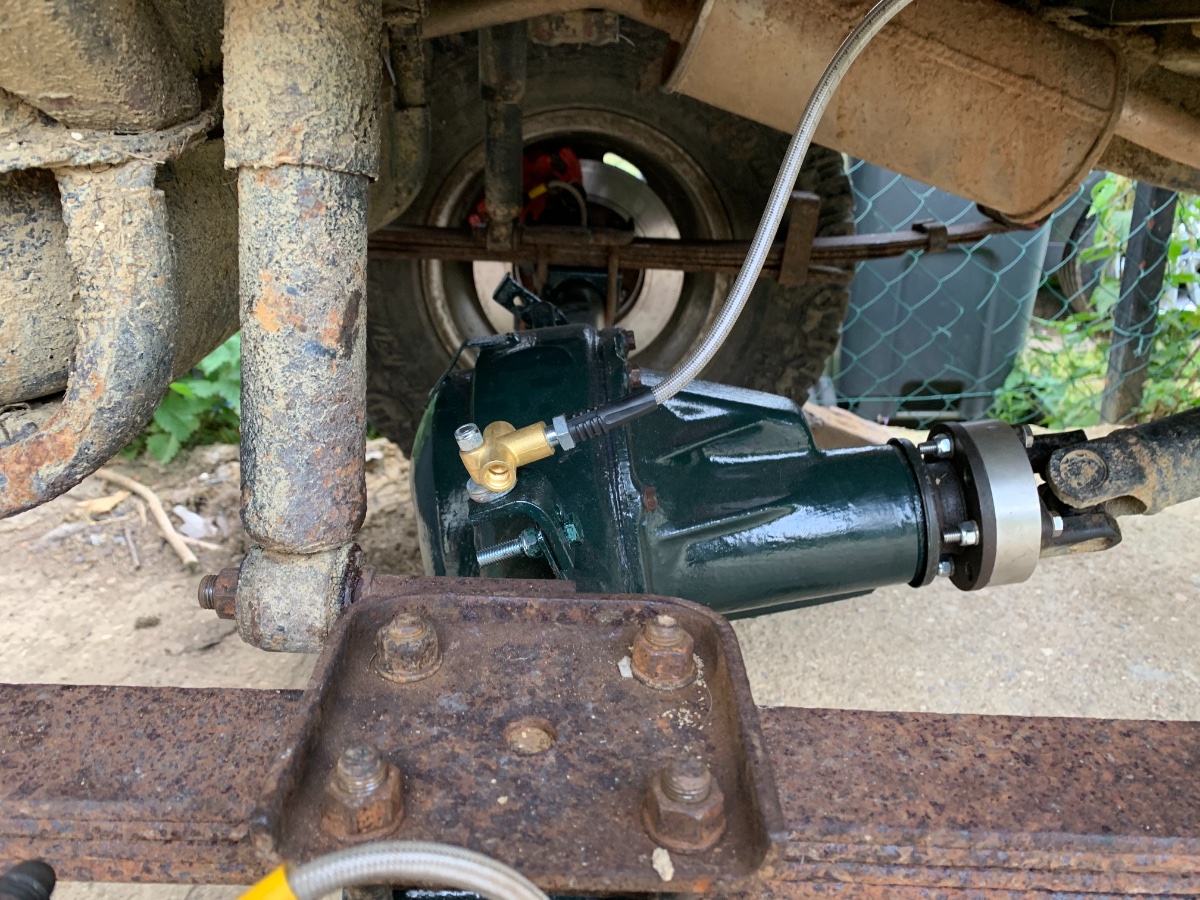

Making up some diff breathers this afternoon
Gotta add some jubilee clips to the pipe but that should do the job nicely

Might make up a 3 way t and send one small plastic tube up the snorkel

Filled the axles up with oil
Gotta get it on more level ground and just check the levels again .

Gonna get some more oil to change the oil on the lobster box

Then if I get a change drive it 😂
Attachments

marve114
Engaged 4wd low
Engaged 4wd low
Posts: 102
Joined: Fri May 18, 2018 10:52 pm

Re: Marves 410 van

Post by marve114 » Sun Jun 02, 2019 9:13 am

Got to have a drive and it don’t seem to bad soa so far

But I do have an issue with my transferbox I bought it’s making a slapping noise when you let off the throttle

It has excessive back lash on the input flange off the back of the gearbox but play is in the transfer box

Il see if I can upload a video

Other wise if it wasn’t for that I would of been happy


The lockright in the rear diff gonna take some getting used to as well
Attachments

Anton
I spend far too much time on here
I spend far too much time on here
Posts: 3859
Joined: Tue Jan 12, 2010 12:12 pm
Location: London

Re: Marves 410 van

Post by Anton » Sun Jun 02, 2019 11:00 pm

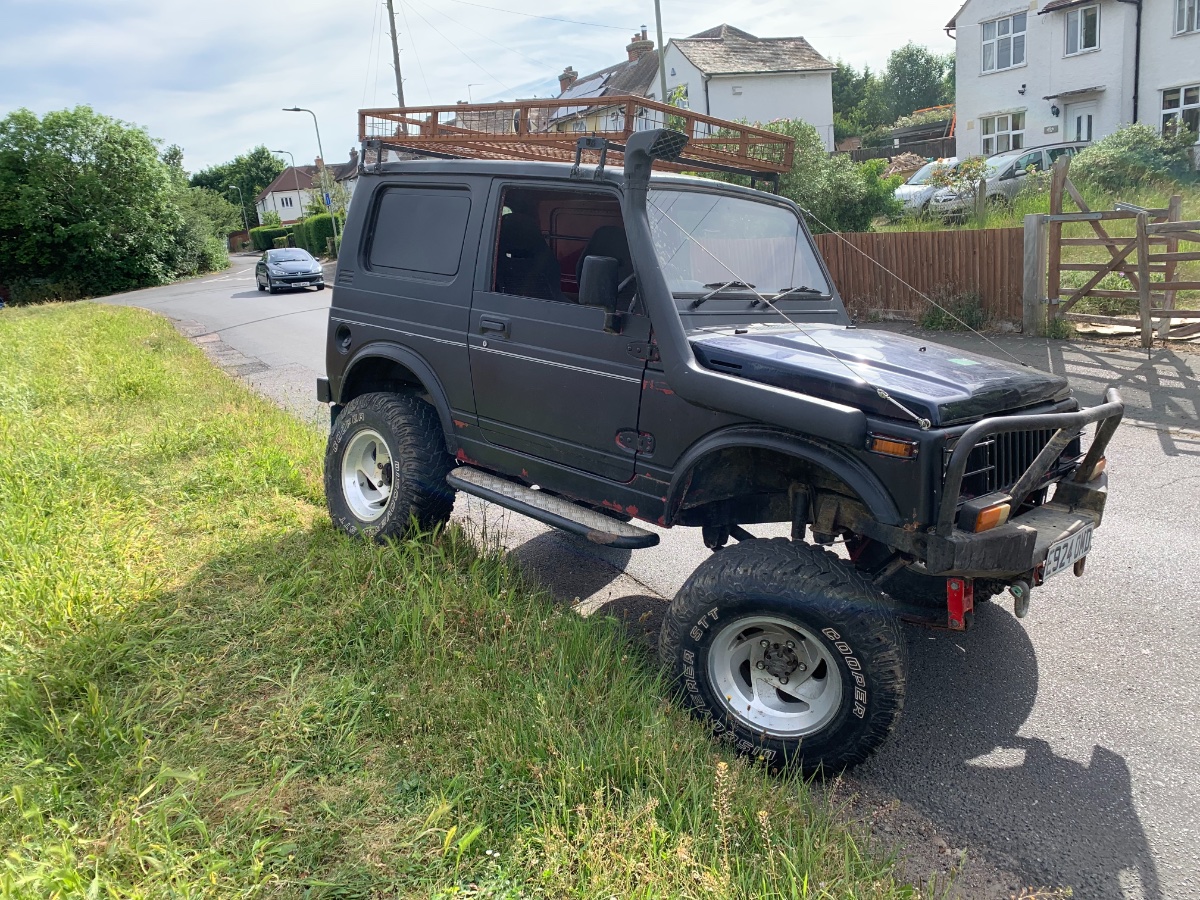

Nice articulation! :doublethumbs: :lol: :doublethumbs:

The tcase thing sucks though. I don't know how to alter backlash on gears in a tcase (or if you can!). If you work it out, please post pix!
1985 SJ413VX (SJ50V) with SPOA, rear disc brakes, 31x10.5R15 Kaiman Malatesta tyres, an MOT and a lot left to do!

My: Build thread To-do list Pay and Play map

marve114
Engaged 4wd low
Engaged 4wd low
Posts: 102
Joined: Fri May 18, 2018 10:52 pm

Re: Marves 410 van

Post by marve114 » Mon Aug 05, 2019 9:51 pm

The chatter turned out to be misaligned ujs. :salute:

I’ve been sketchy as of late had a hospital stay with kidney stones currently on my 2nd stent with string seriously now fun but I’m trying todo little bits here and there.

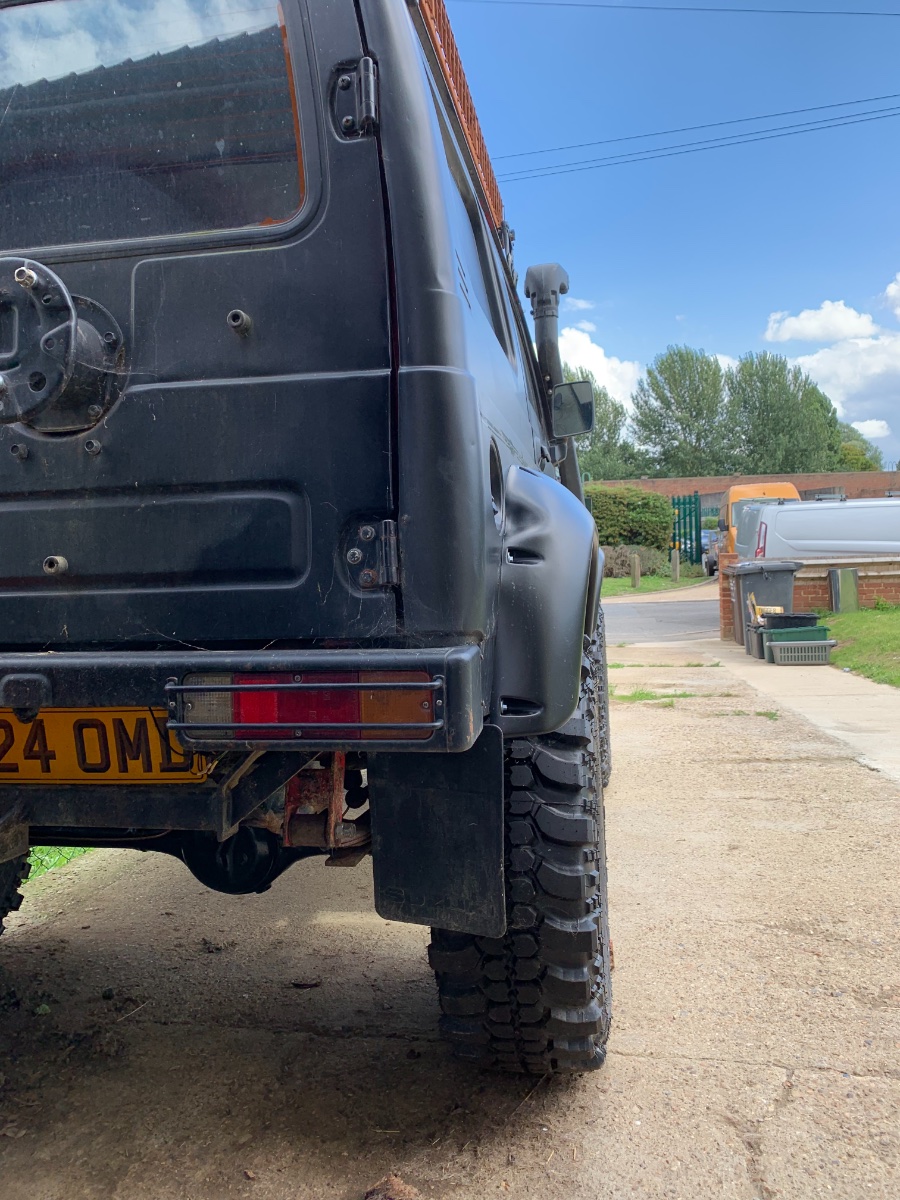

Started on covering up the wheels little mock up here
My front springs are a bit worn il get around to replacing them at some point

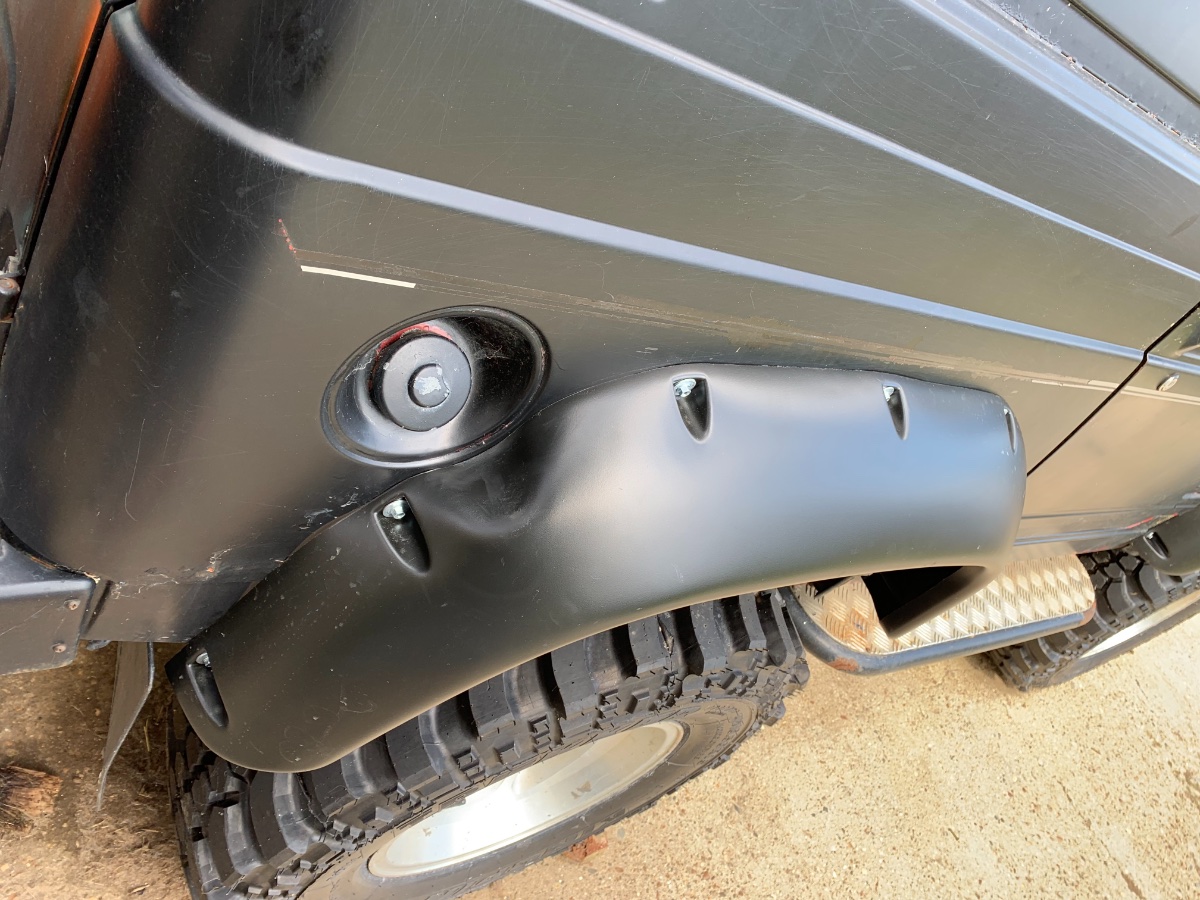

Carried on fitting the defenders arches I think they come out well on the drivers side

Passenger side to go but that will be easy

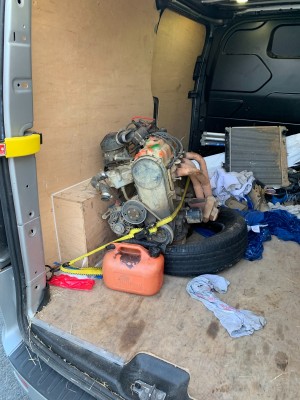

Also got my hands on a 1.6 8 valve 413 gearbox and vitara rad
Supposedly a very good engine that had a few quid spent on it
Gonna check the clutch and replace if needed also I’m gonna do the timing belt and water pump

So il be pulling her front end off to do the conversion
Attachments
