Clutch bearing Info

Post by Darrell » Sun Nov 11, 2012 11:56 pm

If you see any mistakes please let me know. Incorrect diagrams are worse than none.
Feel free to add any info you have :thumbup:
2005-GV 1600se, "Hell" What do I know!
Top
User avatar
Darrell
Suzuki, will you marry me?
Suzuki, will you marry me?
Posts: 2988
Joined: Wed Feb 23, 2011 7:54 pm
Location: south oxfordshire
Contact:
Contact Darrell

Re: Clutch bearing Info

Post by Darrell » Sun Nov 11, 2012 11:58 pm

Early SJ410
Attachments

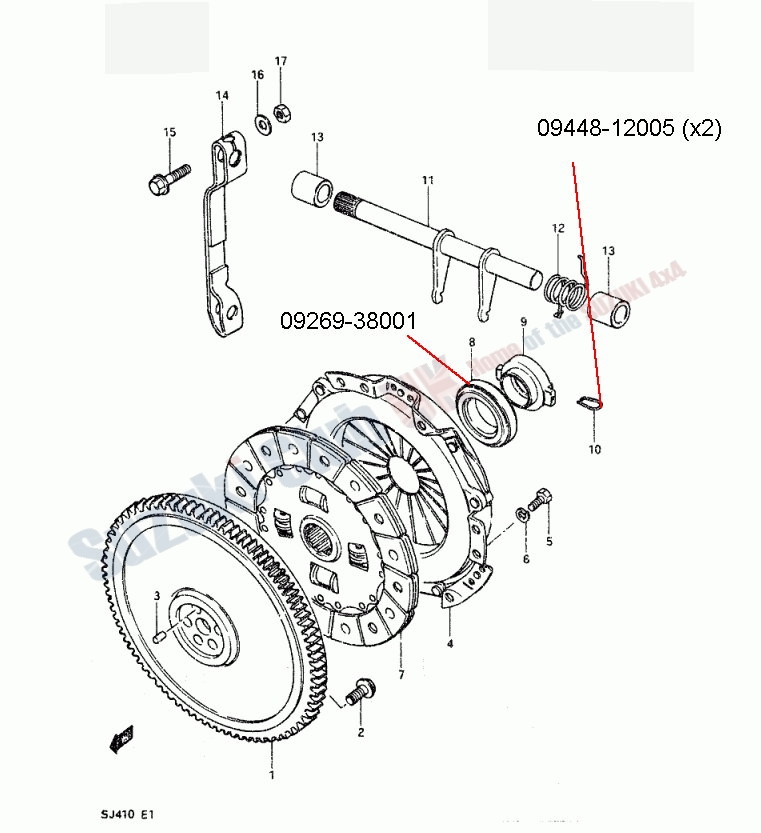

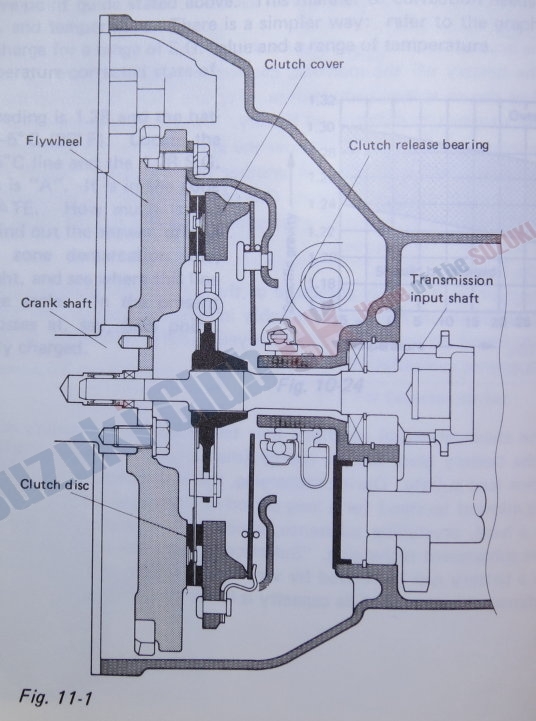

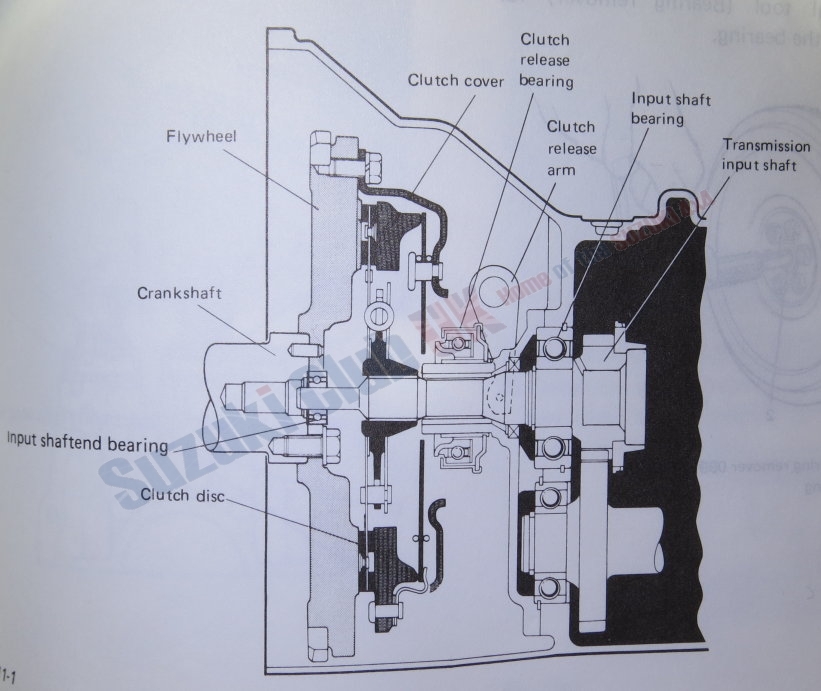

Early 410 clutch.jpg
Early 410 clutch.jpg (171.59 KiB) Viewed 4420 times

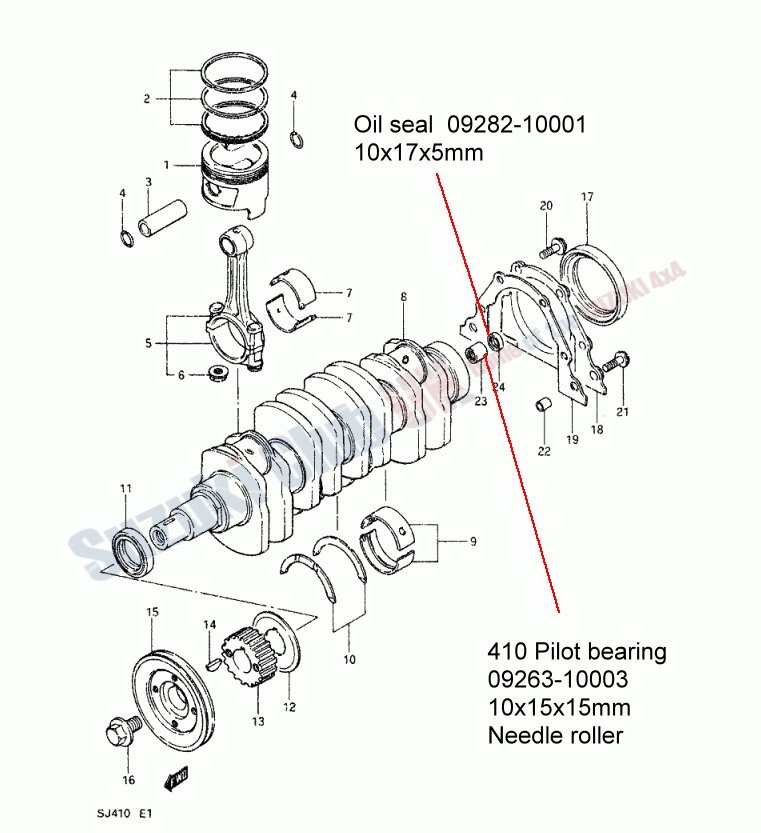

Early 410 pilot bearing in crankshaft (2).jpg
Early 410 pilot bearing in crankshaft (2).jpg (161.83 KiB) Viewed 4420 times

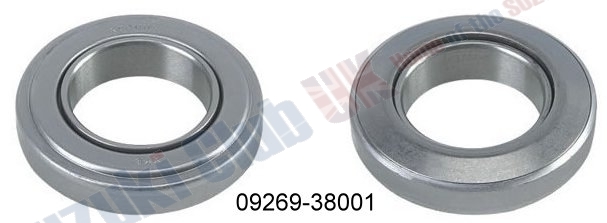

Early 410 clutch bearing.jpg
Early 410 clutch bearing.jpg (154.79 KiB) Viewed 4420 times
2005-GV 1600se, "Hell" What do I know!
Top
User avatar
Darrell
Suzuki, will you marry me?
Suzuki, will you marry me?
Posts: 2988
Joined: Wed Feb 23, 2011 7:54 pm
Location: south oxfordshire
Contact:
Contact Darrell

Re: Clutch bearing Info

Post by Darrell » Mon Nov 12, 2012 12:00 am

Later SJ410
Attachments

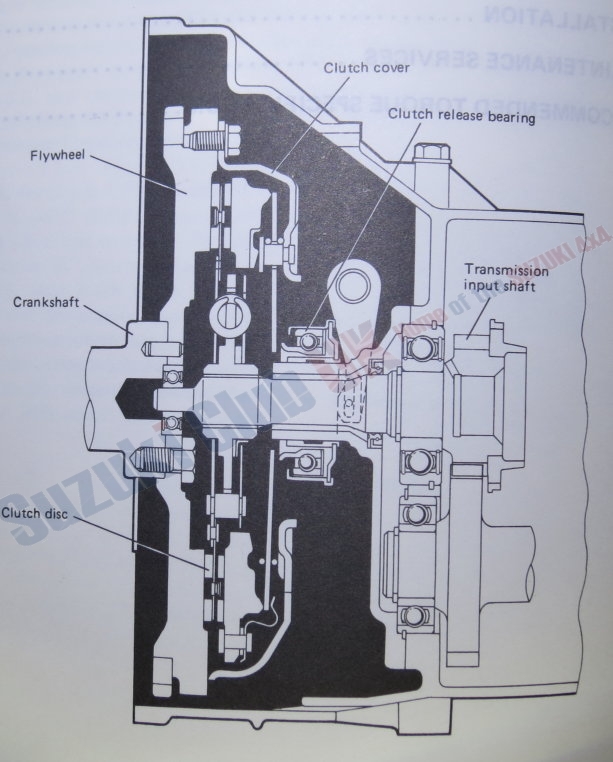

Later 410 clutch.jpg
Later 410 clutch.jpg (212.18 KiB) Viewed 4419 times

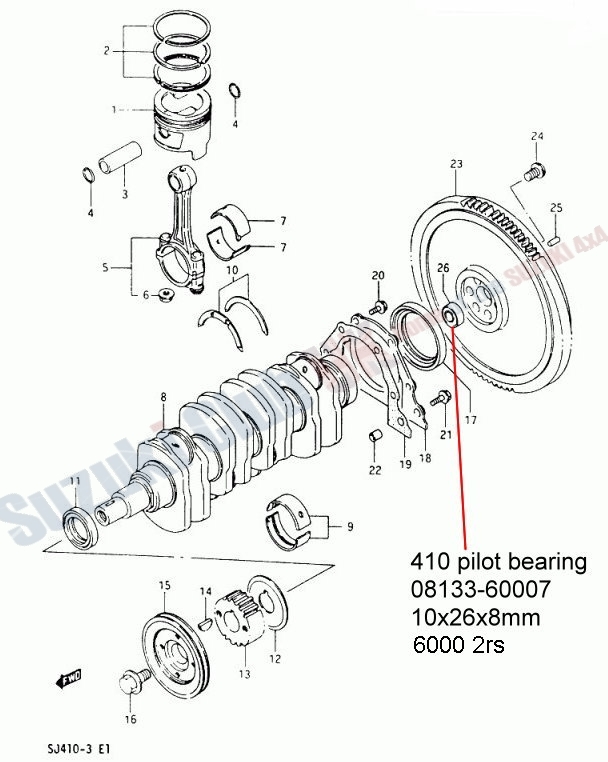

Later 410 pilot bearing in flywheel.jpg
Later 410 pilot bearing in flywheel.jpg (136.84 KiB) Viewed 4419 times

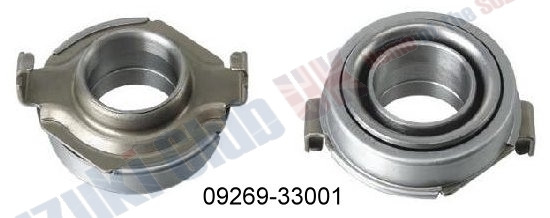

Later 410 & 413 clutch bearing.jpg
Later 410 & 413 clutch bearing.jpg (119.9 KiB) Viewed 4419 times
2005-GV 1600se, "Hell" What do I know!
Top
User avatar
Darrell
Suzuki, will you marry me?
Suzuki, will you marry me?
Posts: 2988
Joined: Wed Feb 23, 2011 7:54 pm
Location: south oxfordshire
Contact:
Contact Darrell

Re: Clutch bearing Info

Post by Darrell » Mon Nov 12, 2012 12:01 am

SJ413-Sammie
Attachments

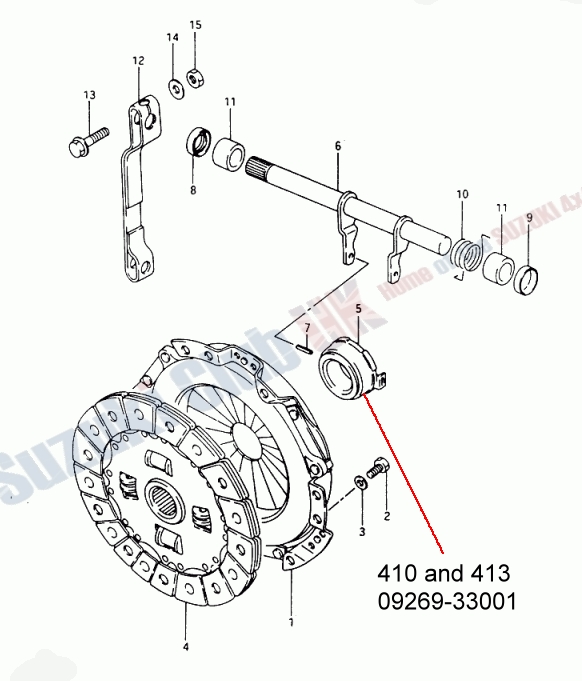

413 clutch.jpg
413 clutch.jpg (191.38 KiB) Viewed 4418 times

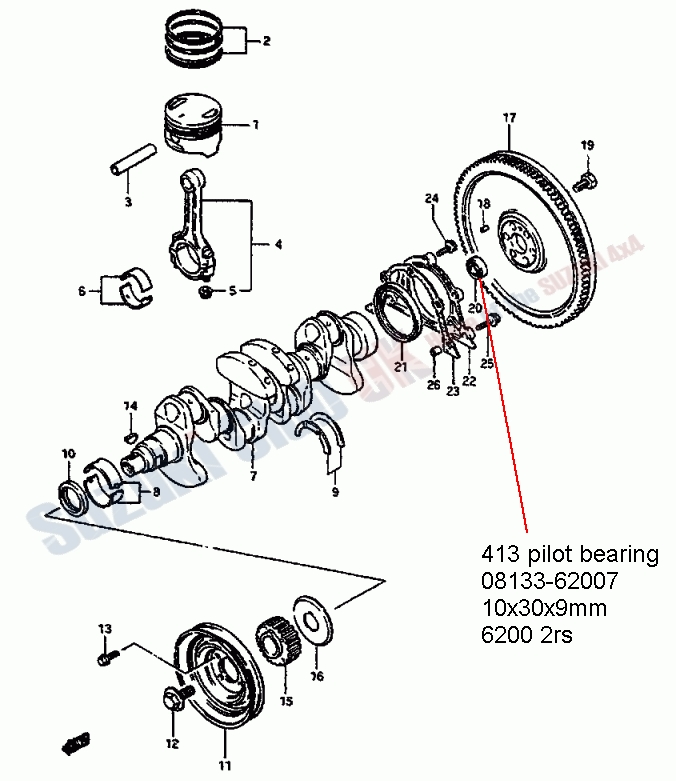

413 Pilot bearing.jpg
413 Pilot bearing.jpg (151.75 KiB) Viewed 4418 times
Later 410 & 413 clutch bearing.jpg
Later 410 & 413 clutch bearing.jpg (119.9 KiB) Viewed 4418 times
2005-GV 1600se, "Hell" What do I know!
Top
User avatar
ScottieJ
The Boss
The Boss
Posts: 11635
Joined: Tue Apr 15, 2008 12:13 pm
Location: Chippenham, wiltshire

Re: Clutch bearing Info

Post by ScottieJ » Mon Nov 12, 2012 9:30 am

Good info there Darrell! Stickied!
Zuki Build

Steady as she goes!
Top
User avatar
Darrell
Suzuki, will you marry me?
Suzuki, will you marry me?
Posts: 2988
Joined: Wed Feb 23, 2011 7:54 pm
Location: south oxfordshire
Contact:
Contact Darrell

Re: Clutch bearing Info

Post by Darrell » Tue Nov 13, 2012 8:29 pm

Bit more --
Attachments

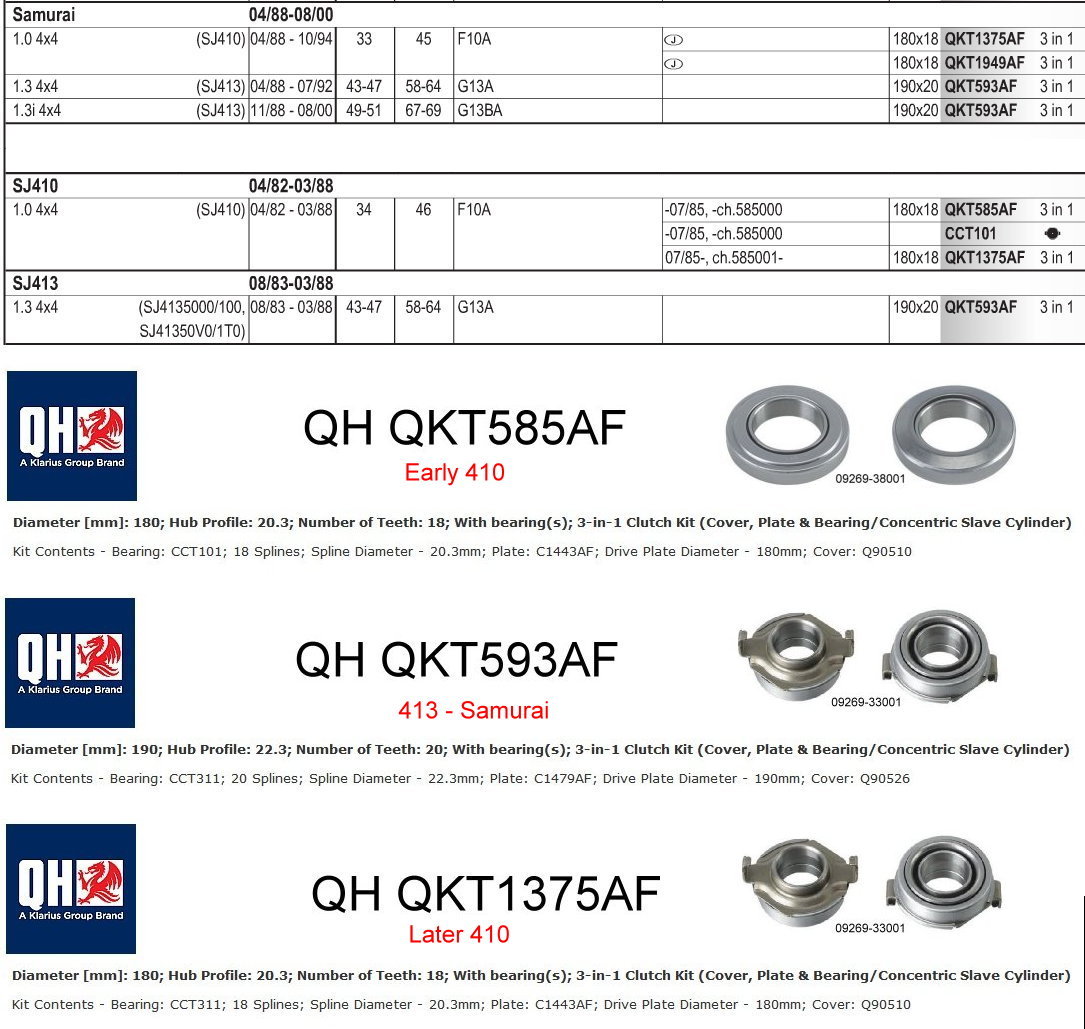

Suzuki SJ clutches.jpg
Suzuki SJ clutches.jpg (201.85 KiB) Viewed 4370 times
2005-GV 1600se, "Hell" What do I know!
Top
User avatar
andyrew
SCUK is my life
SCUK is my life
Posts: 1820
Joined: Fri Jul 31, 2009 12:39 am

Re: Clutch bearing Info

Post by andyrew » Tue Nov 13, 2012 8:36 pm

darrel , you are like the stephen fry of suzuki :thumbup:
