What model carb is this?

Darrell · Post by **Darrell** » Fri Jan 11, 2013 10:50 pm

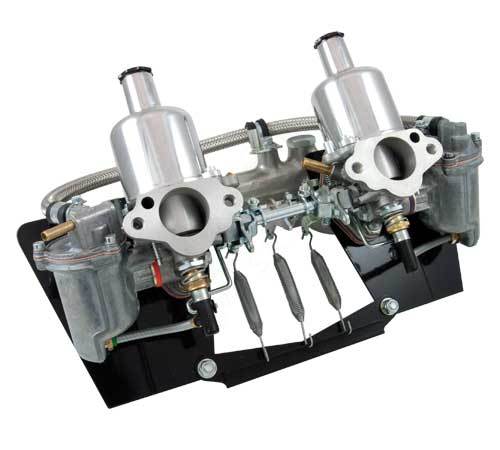

I see they do adaptors for that carb to suit all different angles so I don't see why you can't mod it a little to get it level. Maybe drill/file the chamber a little to locate it on the lug and keep it at the right level. Seems they are often fitted in pairs and the throttle return spring/s are fitted to a bracket of some type between the two, so I guess you can just make a bracket to suit the cable and spring.
Personally I know sod all about them , it's just what I've found "Googling"

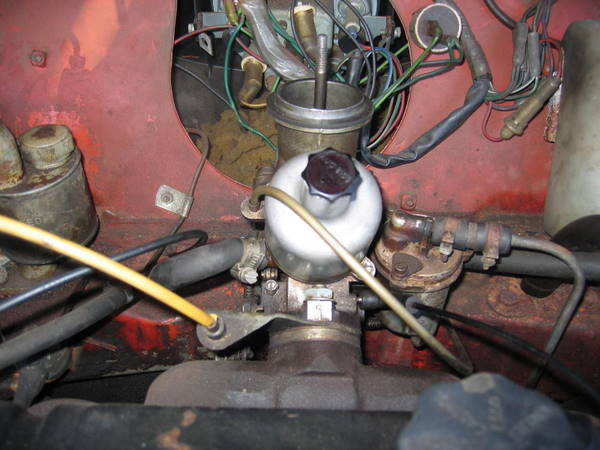

A few pics

kiwizook · Post by **kiwizook** » Fri Jan 11, 2013 10:59 pm

Thanks darell, i might do that. seems like your googling skills are better than mine, as I couldn't find a thing. do you also know which lever is what?

: carb lever shot; Pic_0112_071.jpg (286.48 KiB) Viewed 5598 times

The right lever operates a butterfly valve, and moves real easy,
the left lever operates the assembly at the bottom of the carburettor, and needs a little more force to operate
Thanks,

govert

Darrell · Post by **Darrell** » Fri Jan 11, 2013 11:43 pm

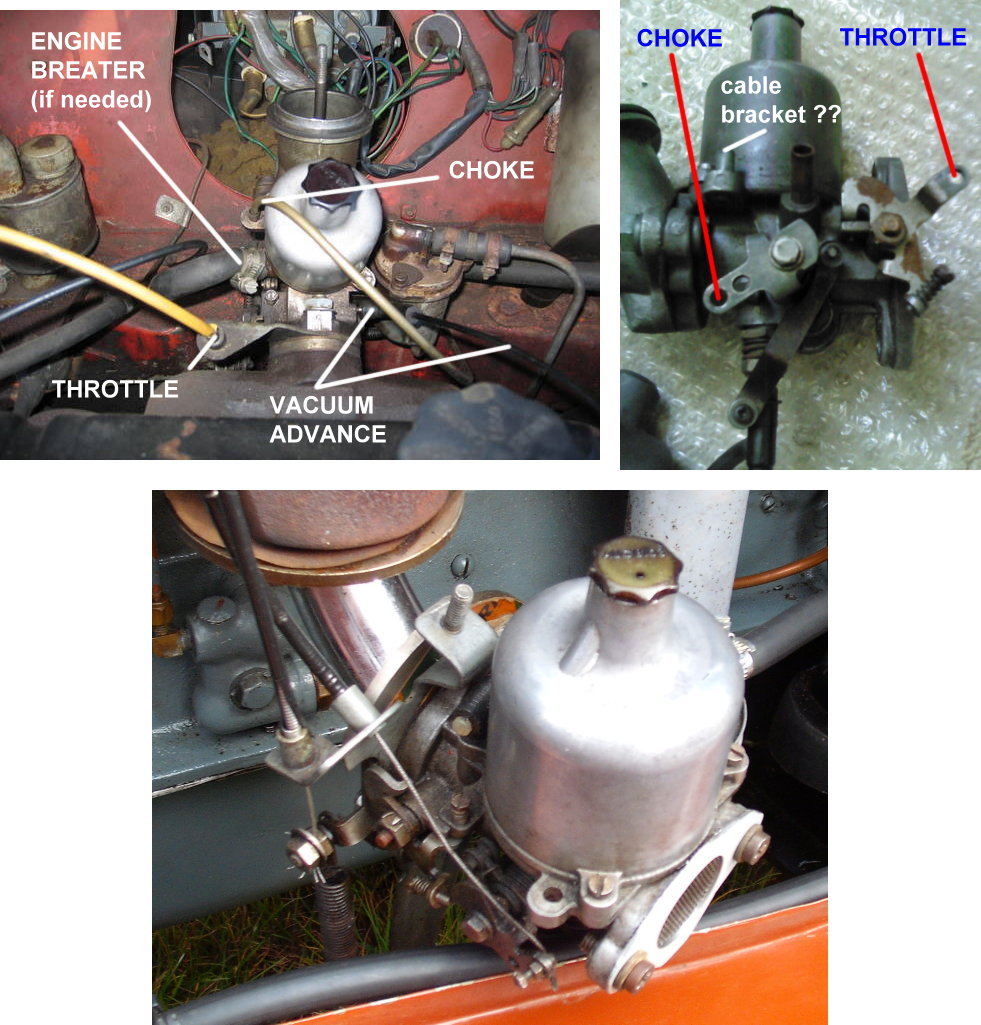

I'm assuming things go like this.

: HS2.jpg (201.68 KiB) Viewed 5590 times

Please anybody say if you see I'm making a balls up.

kiwizook · Post by **kiwizook** » Sat Jan 12, 2013 3:53 am

Thanks a lot darell, this really explains it all to me, and thinking about it, it makes sense too actually. could I just block off the engine breather hose? the hose that come of the rocker cover and goes in the airbox, had been spilling some oil and crap in the airbox before i got my rig, so i'm not too keen on putting this on my carb. so can i just block that one off?

and what darell marked cable bracket, does look a lot like a cable bracket, so well spotted darell!

Post by **dan_2k_uk** » Sat Jan 12, 2013 9:59 am

Yeah I've just got that breather blanked on my SU and the crank case breather goes back to the standard air box.

Do you have the bracket plate for the throttle cable that goes between the carb and manifold?

kiwizook · Post by **kiwizook** » Sun Jan 13, 2013 6:03 pm

don't have that bracket plate, so I will have to make something up for it i'm afraid. any tips or pics for this guys?

Darrell · Post by **Darrell** » Sun Jan 13, 2013 6:46 pm

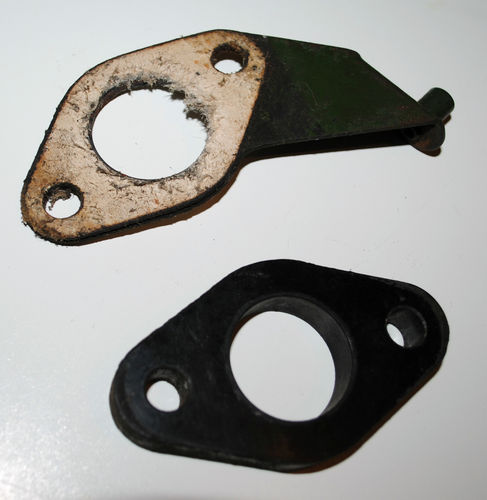

Looking at the ones above its just a plate between the carb and manifold with a suitable bit added. Only found one pic searching for the bracket.

Post by **ScottieJ** » Sun Jan 13, 2013 7:04 pm

If it's spitting a lot of oil into the air box then I'd whip the Pcv valve off and give it a clean, make sure it rattles etc, it's perfectly normal for a bit of oil to make its way into the air box though.

I'd personally keep the Pcv system connected if it was me.

kiwizook · Post by **kiwizook** » Mon Jan 14, 2013 4:26 am

I will definetly keep it connected, but I will keep it on the airbox, and not my carb. I cleaned the tapet cover, which was full of oil sludge. do I need to clean anything else too regarding this matter?
And where is the pcv valve located?

Post by **ScottieJ** » Mon Jan 14, 2013 8:41 am

The Pcv valve is screwed into the top of the inlet manifold, the pipe that runs from the rocker to airbox should have a T-piece with another pipe running down to the Pcv valve
