Been a while since I posted up. A lots happened. Bought a defender so the SJ was left sat for a month or 2. Anyway the Landys blown a piston so I'm using the SJ while I swap the engine.
I broke this bit so I took one off a spare axle and found that mine is different. Mine seems to be bigger more heavy duty. The U bolts are bigger thread and the plate has the holes in a slightly different place

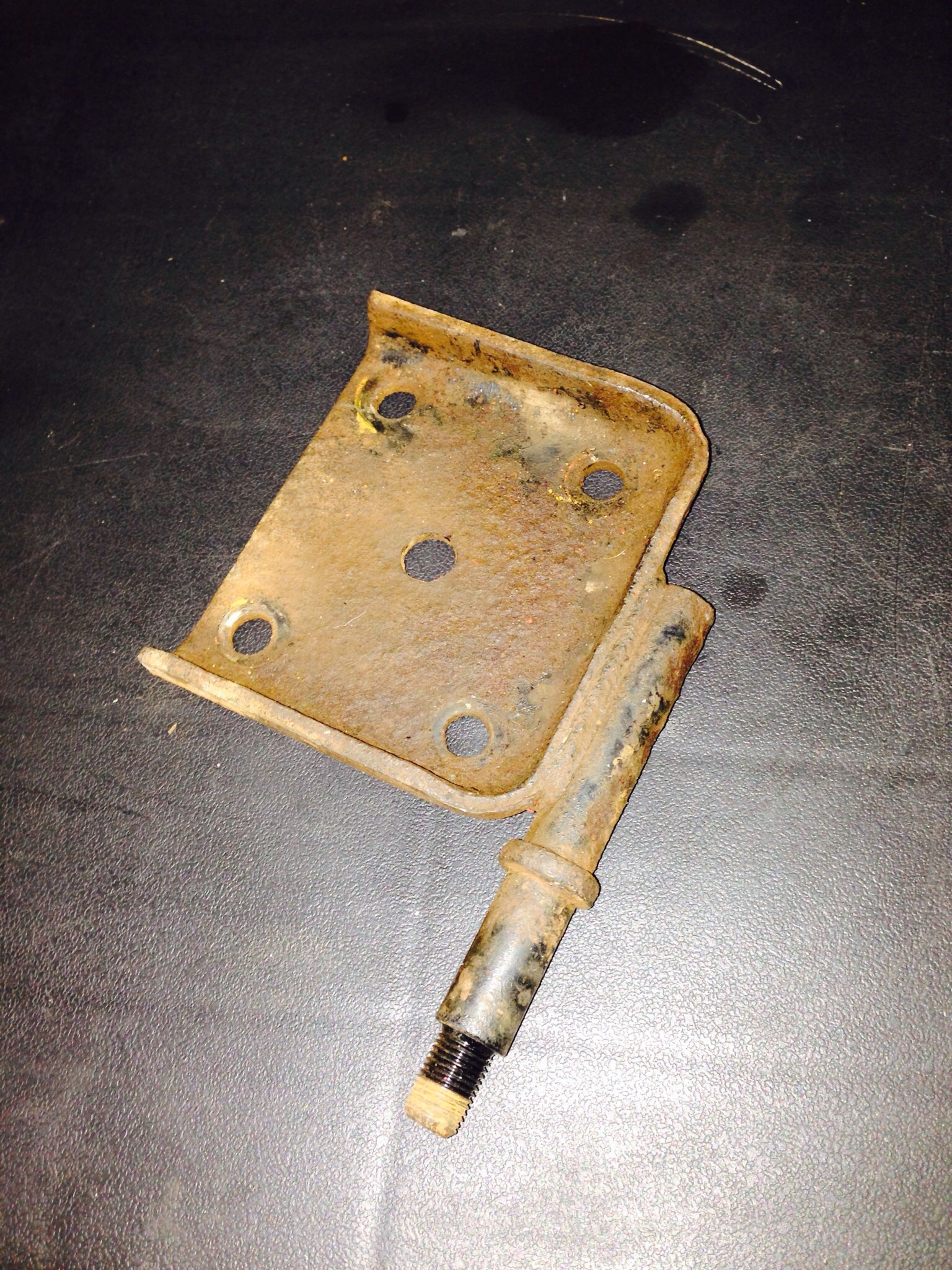

Here are pics of my broken plate and the one I intended to replace it with
Should I weld the new pin onto my plate or what ?
Hello again. Back in a SJ but I broke it
Hello again. Back in a SJ but I broke it
- Attachments
-
- image.jpg (603.8 KiB) Viewed 8249 times
-
- image.jpg (1.21 MiB) Viewed 8249 times
-
dazerede
- Suzuki, will you marry me?
- Posts: 2141
- Joined: Fri Sep 30, 2011 10:23 pm
- Location: cornwall callington
Re: Hello again. Back in a SJ but I broke it
Thee are 2 different types samurai ones are bigger I believe and the u bolts are bigger as we'll the 413 and 410 are the same I believe
Suzuki Sj 410 Jap Built
Recaro Seats Fitted
Landini Blue Colour
Full rollcage and winch bumper
1.6 8v vitara lump with su carb
4” calmini lift kit
235/75/15 insa turbo special tracks
99.9% Rust Free
BUILT NOT BOUGHT
Recaro Seats Fitted
Landini Blue Colour
Full rollcage and winch bumper
1.6 8v vitara lump with su carb
4” calmini lift kit
235/75/15 insa turbo special tracks
99.9% Rust Free
BUILT NOT BOUGHT
-
Ladaman
- Suzuki Guru
- Posts: 1090
- Joined: Thu Sep 08, 2011 10:56 pm
- Location: Huddersfield, W. Yorkshire
- Contact:
Re: Hello again. Back in a SJ but I broke it
I'm sure that on mine the front drivers side plate is slightly different to the other three due to needing larger U bolts at that location on the axle.
Is it this one you've broken or looking to try and use?
Can you not open the holes a little?
It shouldn't be too hard to cut off a good bolt and weld onto your broken plate either.
Is it this one you've broken or looking to try and use?
Can you not open the holes a little?
It shouldn't be too hard to cut off a good bolt and weld onto your broken plate either.
YouTube
Ignis Sport 1.5 16V; Jimny gearbox, 410 transfer box; 5.125:1 Vitara diffs; rear Lockright, Rob Storr full float rear axle, rear discs, YJ springs, virtual lift, 31" Grizzly Claws, beadlock rims, +50mm LR arches, LED rear lights, LED roof spots, bucket seats, Luke harnesses, internal cage
Ignis Sport 1.5 16V; Jimny gearbox, 410 transfer box; 5.125:1 Vitara diffs; rear Lockright, Rob Storr full float rear axle, rear discs, YJ springs, virtual lift, 31" Grizzly Claws, beadlock rims, +50mm LR arches, LED rear lights, LED roof spots, bucket seats, Luke harnesses, internal cage
Re: Hello again. Back in a SJ but I broke it
Just weld a new shock mount onto it if you can't find a replacement.
Re: Hello again. Back in a SJ but I broke it
Yeah ok think il do that. Can't drill out the holes on it because the spacing is too far out. Just tie wrapped the shock out of the way for now and putting up with a bouncy ride. Not that I would notice been SPOA
Re: Hello again. Back in a SJ but I broke it
Unless anyone has got this plate il buy it from them?
-
Darrell
- Suzuki, will you marry me?
- Posts: 2989
- Joined: Wed Feb 23, 2011 7:54 pm
- Location: south oxfordshire
- Contact:
Re: Hello again. Back in a SJ but I broke it
sod it
Last edited by Darrell on Fri Jan 31, 2014 1:18 pm, edited 1 time in total.
2005-GV 1600se, "Hell" What do I know!
-
twiss
- SCUK Computer Wizard
- Posts: 6110
- Joined: Mon Nov 08, 2010 2:28 pm
- Location: Birkirkara, Malta
- Contact:
Re: Hello again. Back in a SJ but I broke it
Ollie secker on facebook has some of the ubolt plates going...
Twiss
'93 Suzuki Samurai Sport 1.6 16v SU. Virtual lift, spring under, 31s
'93 Maruti Gypsy MG410
"If brute force doesn't fix your problem, you aren't using enough of it."
'93 Suzuki Samurai Sport 1.6 16v SU. Virtual lift, spring under, 31s
'93 Maruti Gypsy MG410
"If brute force doesn't fix your problem, you aren't using enough of it."
-
Tramp
- Suzuki, will you marry me?
- Posts: 2828
- Joined: Fri Jul 25, 2008 10:09 pm
- Location: Rotherham - South Yorkshire
Re: Hello again. Back in a SJ but I broke it
I've got some Chris if you want them? They are the same sort, with the ARB mount,
Edit
Top left is one of them, it has a sheared bolt in the arb mount but as your spoa you won't use them anyway will you?
Edit
Top left is one of them, it has a sheared bolt in the arb mount but as your spoa you won't use them anyway will you?
Re: Hello again. Back in a SJ but I broke it
No I don't need the arb. Il have it. How soon could I get it ? Your local as well. Bonus
