Re: 1991 Santana Samurai

Post by tomcat » Sun Mar 31, 2024 8:47 am

ScottieJ wrote:
Sun Mar 31, 2024 12:04 am
tomcat wrote:
Sat Mar 30, 2024 10:40 am
My woes regarding finding a fixing bracket for a power steering pump continues!!
https://www.hm4x4.com/en/suzuki-samurai ... nting-pump
Thank you. Not sure how I missed that in my search on the internet. Should have gone to Specsavers maybe :roll:

User avatar
tomcat
Engaged 4wd low
Engaged 4wd low
Posts: 205
Joined: Wed May 04, 2022 6:59 pm

Re: 1991 Santana Samurai

Post by tomcat » Tue Apr 02, 2024 11:31 am

OK today Samurai steering box removed to fit early Jimny box [part number 48600-81A20]. Jimny box will not fit without some spacers as it fouls the chassis member. Is this usual?

User avatar
ScottieJ
The Boss
The Boss
Posts: 11609
Joined: Tue Apr 15, 2008 12:13 pm
Location: Chippenham, wiltshire

Re: 1991 Santana Samurai

Post by ScottieJ » Tue Apr 02, 2024 12:18 pm

The body needs a small amount of clearancing but it just bolts straight onto the chassis.

Don’t forget you also need to shorten the steering column, you will need a press.
Zuki Build

Steady as she goes!

User avatar
tomcat
Engaged 4wd low
Engaged 4wd low
Posts: 205
Joined: Wed May 04, 2022 6:59 pm

Re: 1991 Santana Samurai

Post by tomcat » Tue Apr 02, 2024 12:19 pm

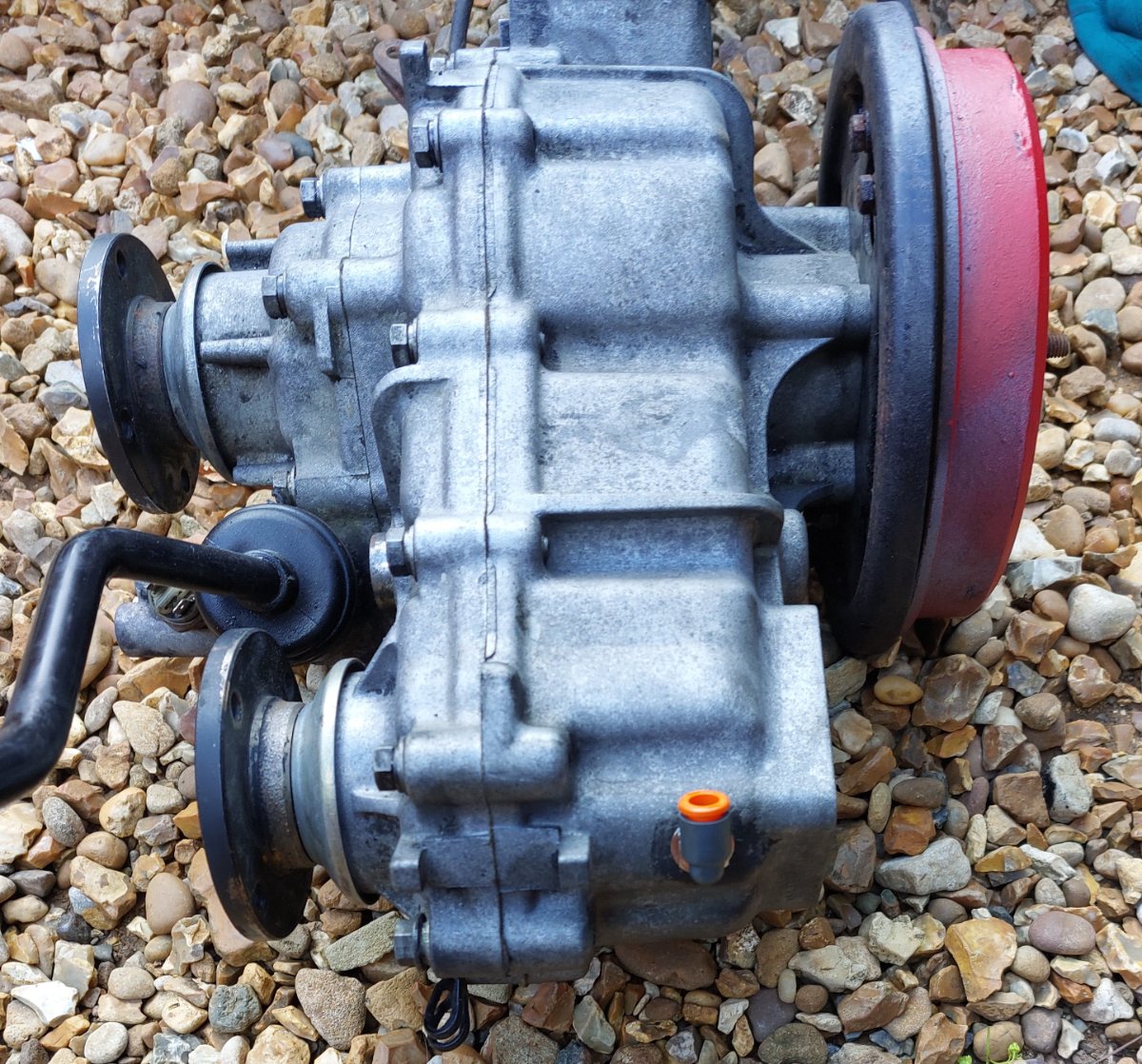

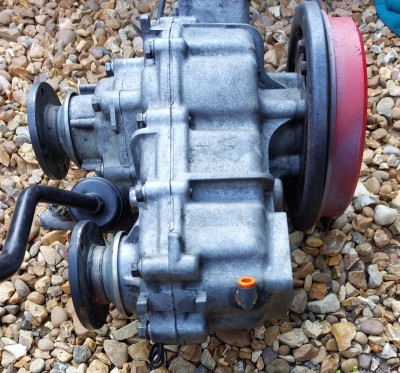

Before transfer box got refitted carried out Scottie's breather upgrade.

User avatar
tomcat
Engaged 4wd low
Engaged 4wd low
Posts: 205
Joined: Wed May 04, 2022 6:59 pm

Re: 1991 Santana Samurai

Post by tomcat » Wed Apr 03, 2024 2:12 pm

ScottieJ wrote:
Tue Apr 02, 2024 12:18 pm
The body needs a small amount of clearancing but it just bolts straight onto the chassis.

Don’t forget you also need to shorten the steering column, you will need a press.
More effort and the steering box did fit fine.

Yes aware column needs shortening. Getting assistance with that. Thanks.

User avatar
tomcat
Engaged 4wd low
Engaged 4wd low
Posts: 205
Joined: Wed May 04, 2022 6:59 pm

Re: 1991 Santana Samurai

Post by tomcat » Thu Apr 04, 2024 10:05 am

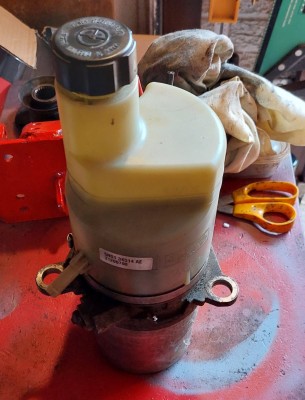

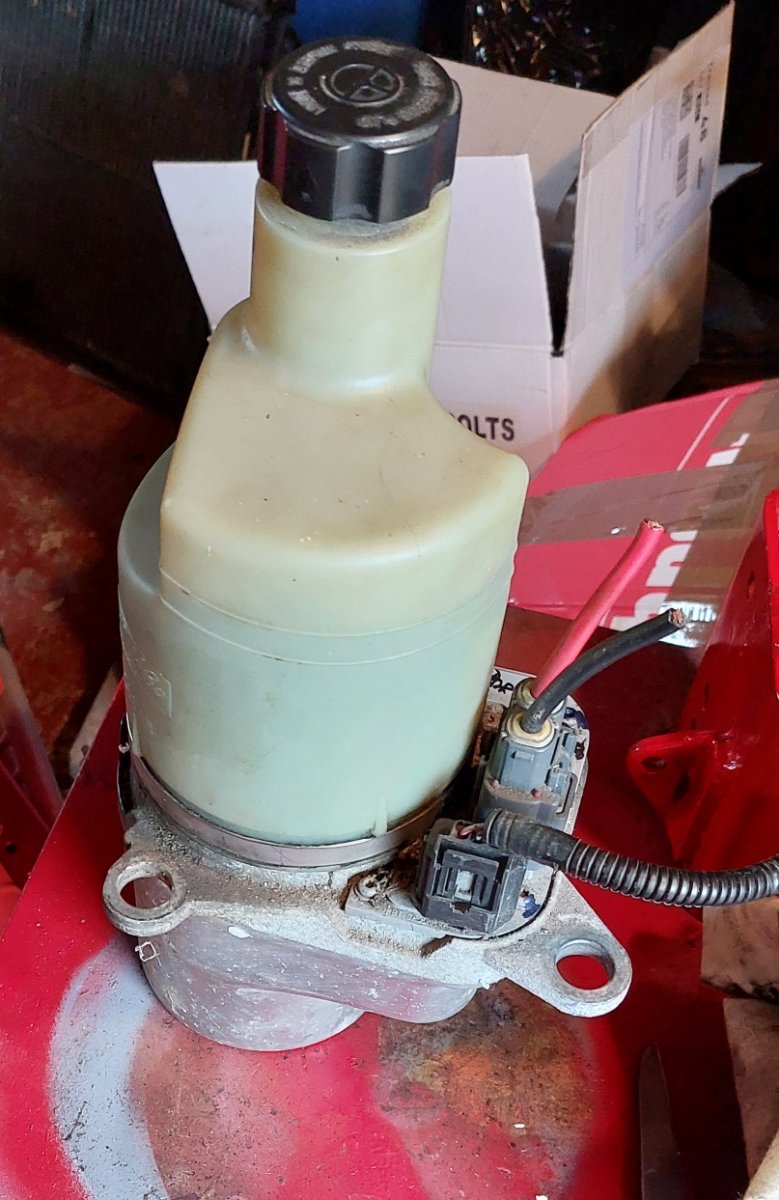

Package arrived yesterday bringing me my "alternative" power steering option. A Volvo electric pump.
Will look at trial fitting of this and then decide whether it is 'hydraulic' or 'electric / hydraulic' I decide to use.

User avatar
tomcat
Engaged 4wd low
Engaged 4wd low
Posts: 205
Joined: Wed May 04, 2022 6:59 pm

Re: 1991 Santana Samurai

Post by tomcat » Fri Apr 05, 2024 2:51 pm

Intend to spend time over the weekend positioning items such as auxiliary fusebox, relay location, oil catch tank etc.
Do trial layout of wiring within engine bay. Will keep me out of mischief, weather permitting!!

User avatar
tomcat
Engaged 4wd low
Engaged 4wd low
Posts: 205
Joined: Wed May 04, 2022 6:59 pm

Re: 1991 Santana Samurai

Post by tomcat » Sat Apr 06, 2024 2:44 pm

Some positive activity today. Decided to go with the Volvo electric power steering system with an oil cooler behind the radiator.

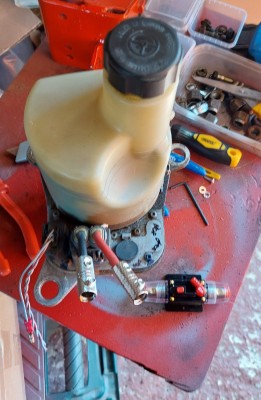

Had purchased some connectors for the heavy duty cables which I fitted. Will be using an 80amp breaker in the circuit.

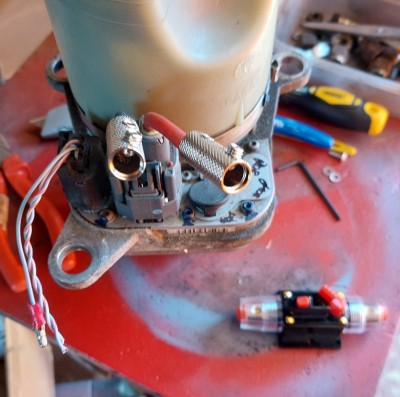

Fitted a connector to the existing grey/blue wire on the pump which I will feed from the ignition block.

User avatar
tomcat
Engaged 4wd low
Engaged 4wd low
Posts: 205
Joined: Wed May 04, 2022 6:59 pm

Re: 1991 Santana Samurai

Post by tomcat » Sat Apr 06, 2024 3:04 pm

Bit more wiring done. New cable to starter. 50amp breaker connected into loom, replacing the previous owners 'modification', connection to battery prepared but not fitted as yet. Ignition block in place.

User avatar
tomcat
Engaged 4wd low
Engaged 4wd low
Posts: 205
Joined: Wed May 04, 2022 6:59 pm

Re: 1991 Santana Samurai

Post by tomcat » Sun Apr 07, 2024 10:52 am

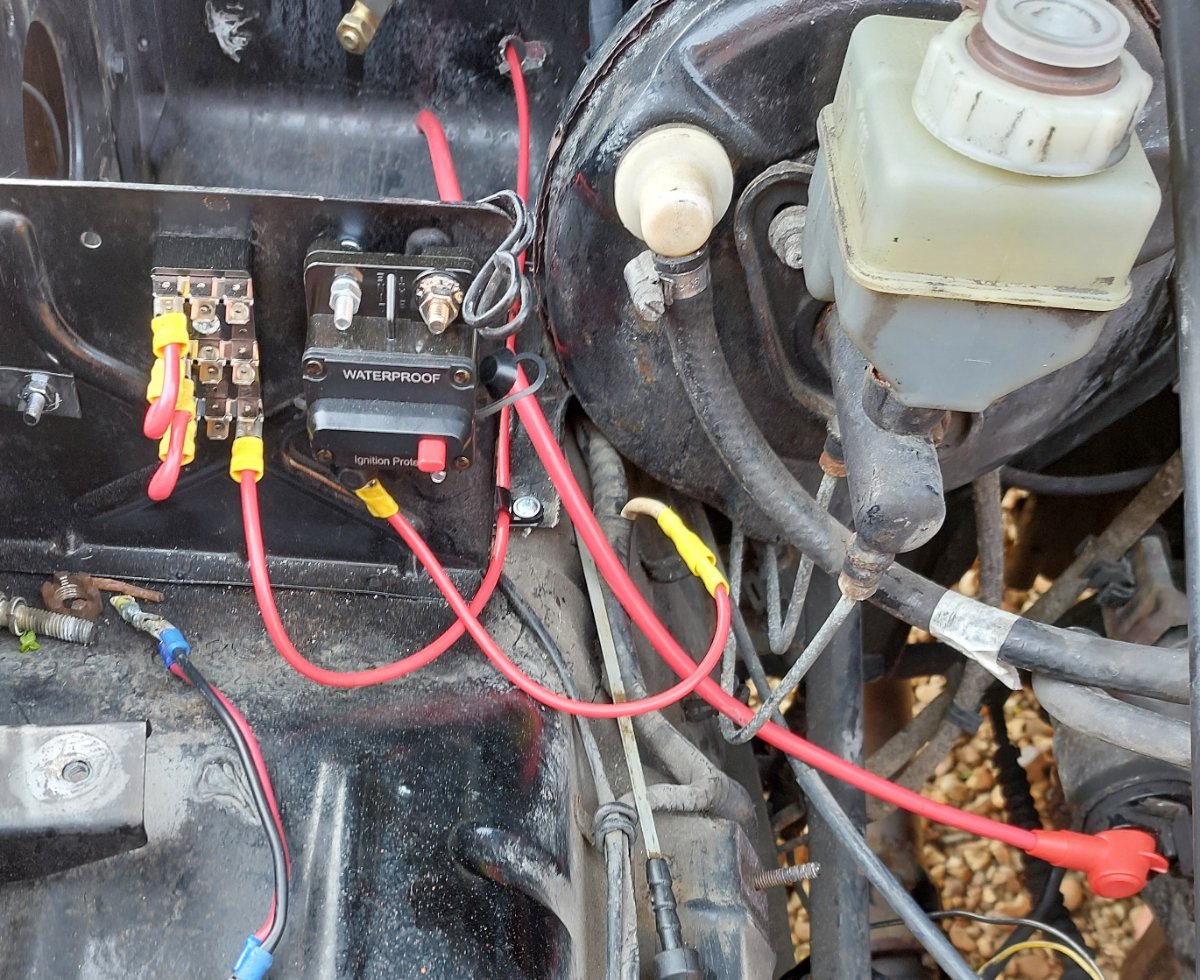

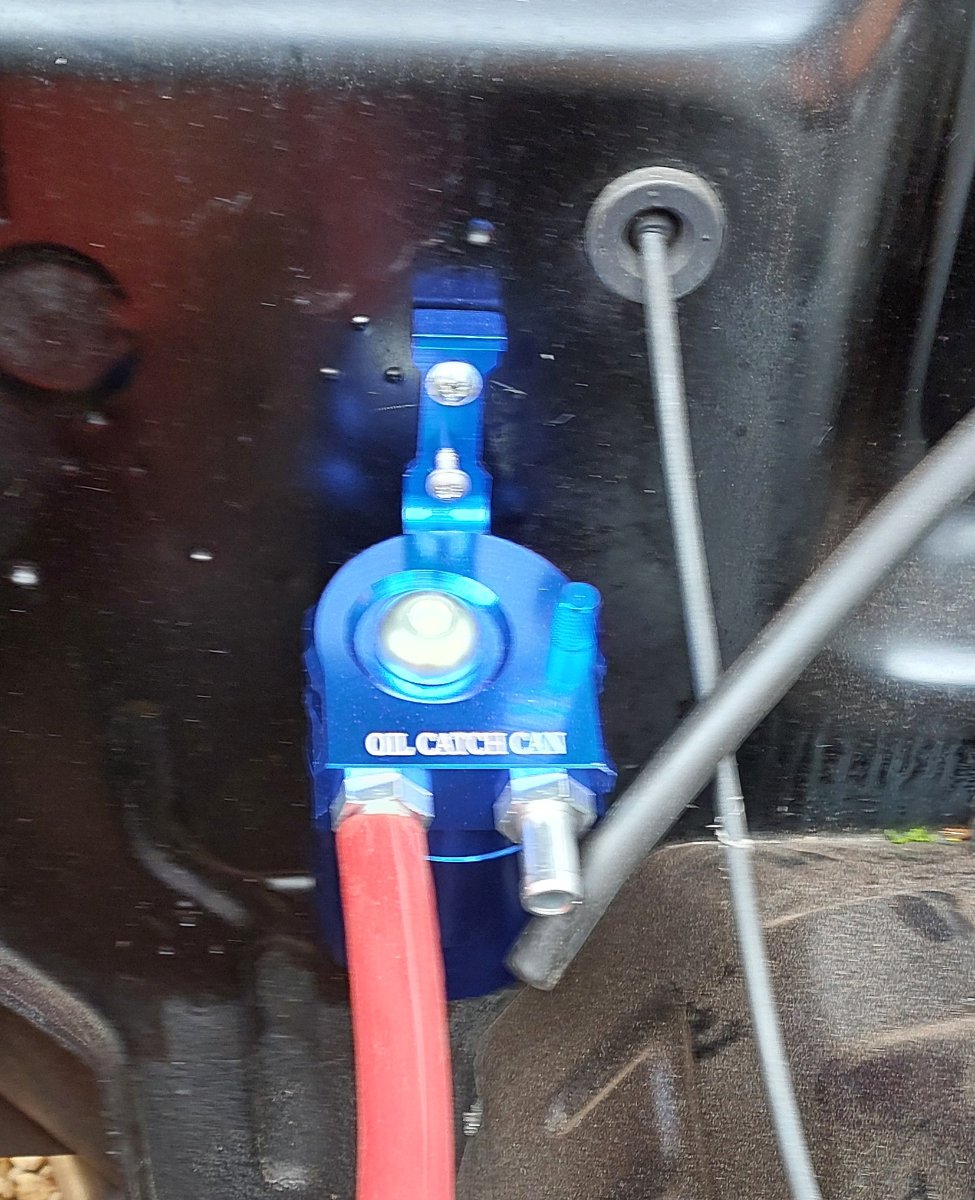

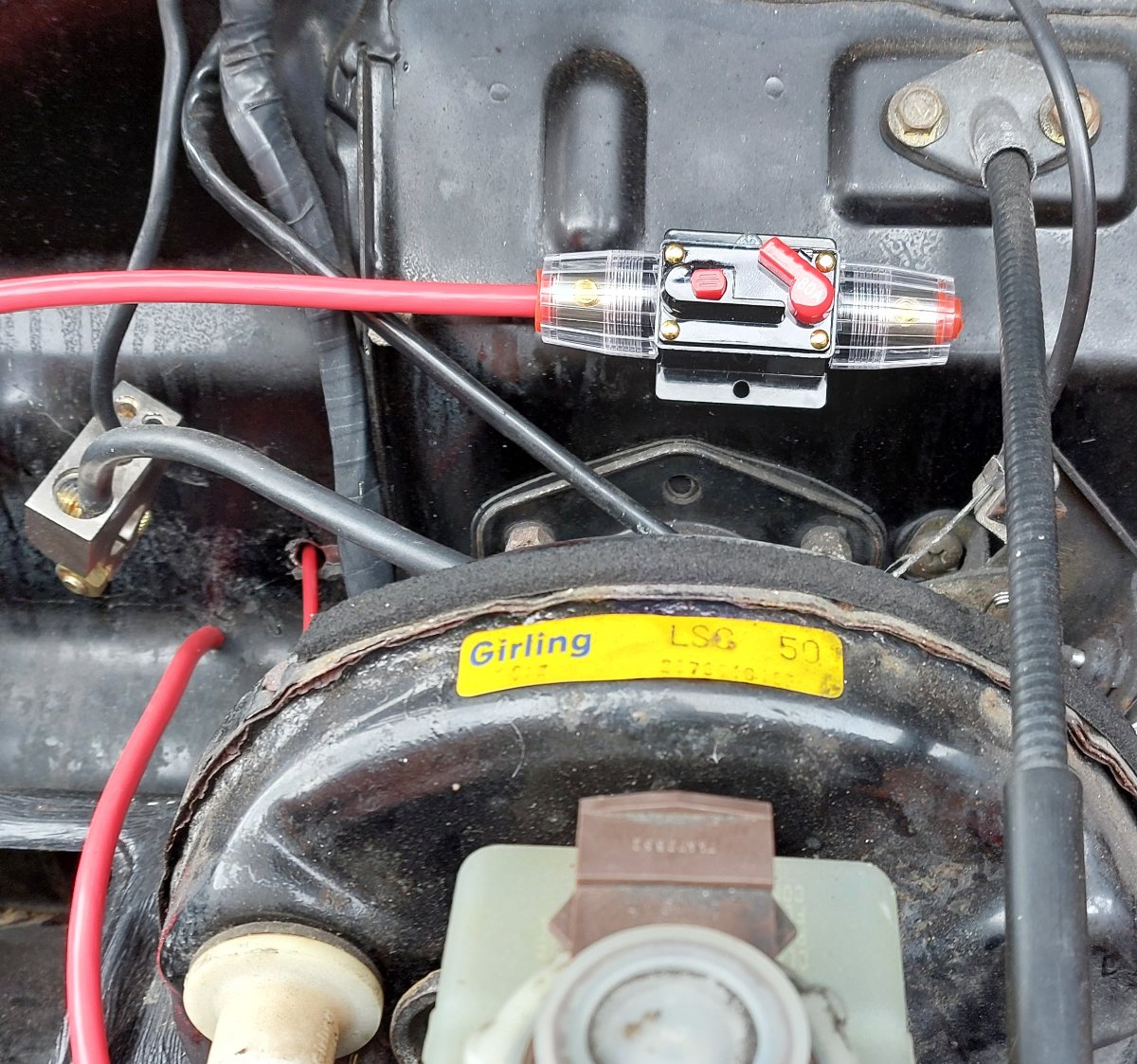

80 amp circuit breaker and oil catch tank positioned.
Before anyone asks the question a blue tank was delivered. Red would have been preferred.
